2. If necessary, select the Pattern bank containing the desired Pattern by clicking its pad
grid on the right.
The selected Pattern bank is surrounded by a white border and its Patterns appear in the
list on the left.

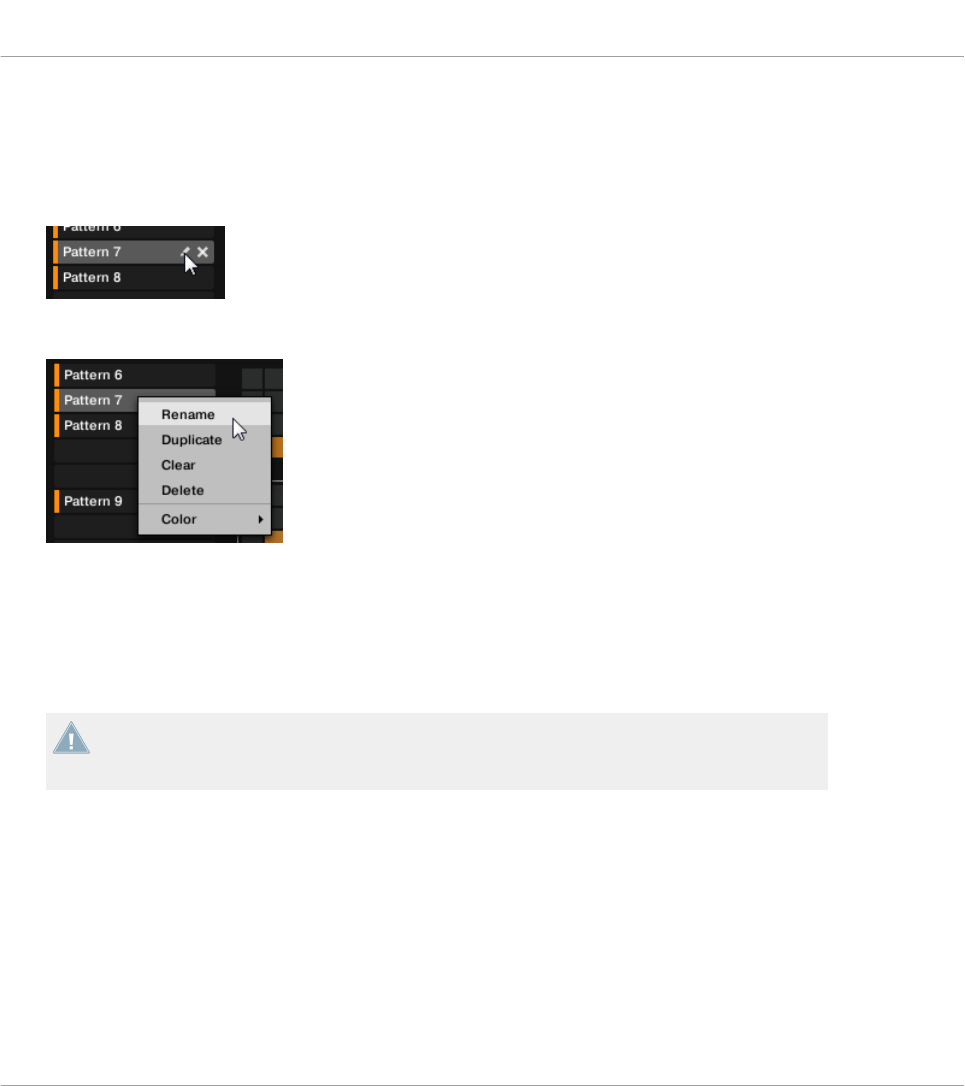

3. On the right of the Pattern slot, click the little pen icon:
You can also right-click ([Ctrl]-click on Mac OS X) the Pattern slot or the corresponding
cell in the pad grid and select Rename from the context menu:
The Pattern name gets highlighted and editable.
4. Type a name and press [Enter] on your computer keyboard to confirm (or press [Esc] to
cancel you change).
→
The Pattern is renamed. In the Arranger, all Clips referencing this Pattern will mirror the
new Pattern name.
If you use MASCHINE as a plug-in, some hosts will utilize the [Enter] key, as it is mapped
to some function of the host software. In this case, click anywhere else in the MASCHINE
plug-in window to confirm the name you have entered.
Renaming Patterns in the Arranger
You can also rename a Pattern in the Arranger via any Clip referencing this Pattern:
Working with Patterns
Managing Patterns
MASCHINE STUDIO - Manual - 330
