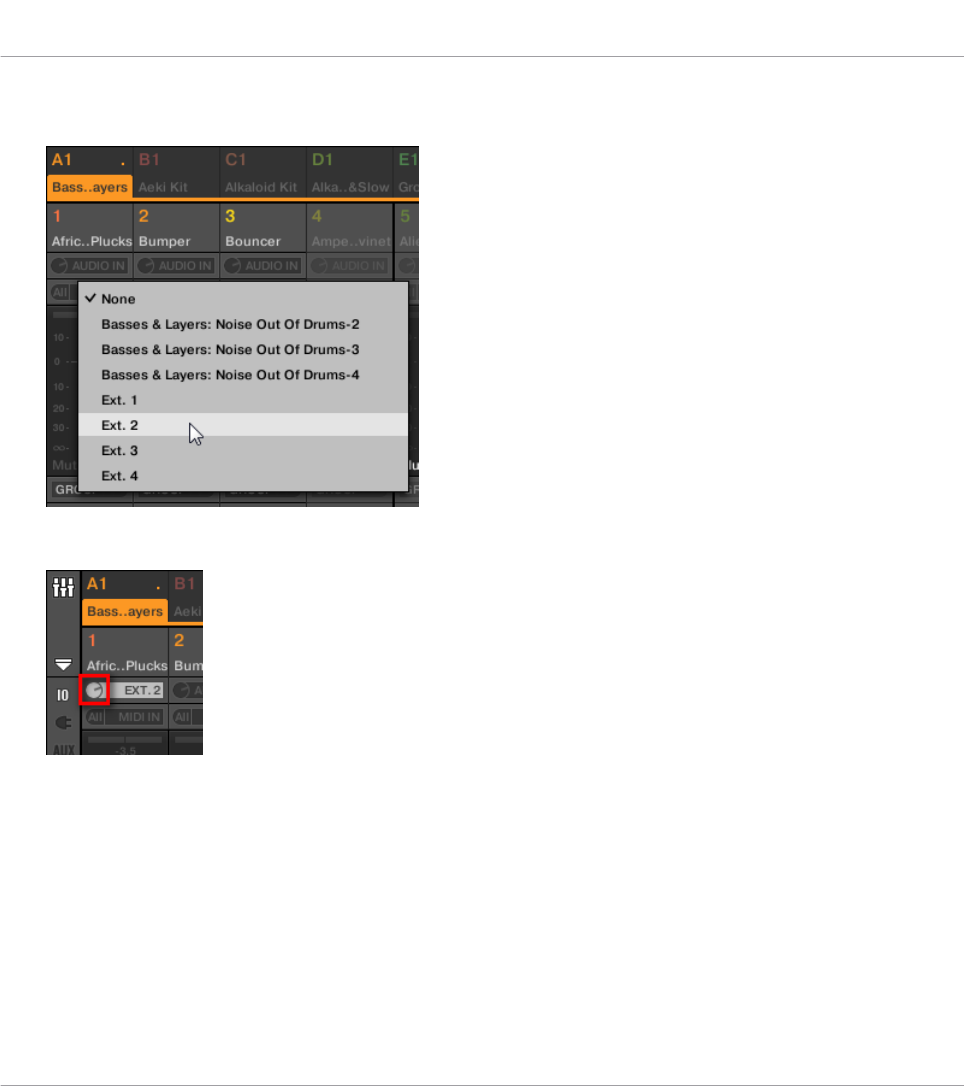

5. At the top of the channel strip of the Sound you want to configure, click the first field
under the Sound name and select the desired external input in the menu.
This is equivalent to setting the Source parameter described above.
6. Turn the little knob on its left to adjust the input gain.
This is equivalent to setting the Gain parameter described above.
8.1.2
Configuring the Main Output of Sounds and Groups
By default the outputs of all Sounds in a Group are sent to this Group, where they are mixed
together and processed by the Plug-ins loaded in the Group, if any. Similarly, by default the
outputs of all Groups are sent to the Master, where they are mixed together and processed by
the Plug-ins loaded in the Master, if any.
Audio Routing, Remote Control, and Macro Controls
Audio Routing in MASCHINE
MASCHINE STUDIO - Manual - 355
