If MASCHINE is running as a plug-in, the external stereo outputs Ext. 1–16 available in the
Output selector of the MAIN and CUE sections will correspond to virtual outputs in your
host.
Configuring the Master and Cue Outputs in Mix View
You can also easily configure the Master and Cue outputs of MASCHINE in the Mixer. Both
share the same channel strip at the far right of the Mixer.

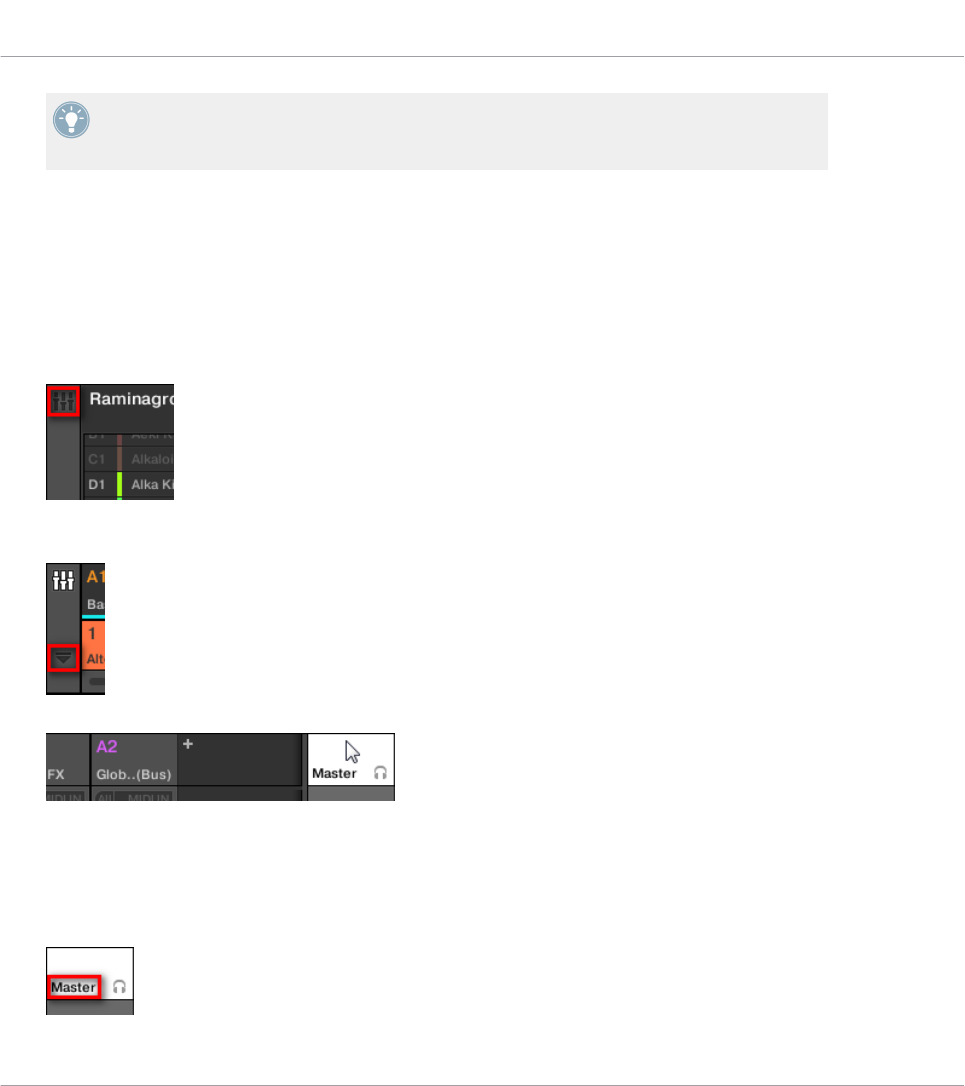

To display the Master/Cue channel strip, do the following:
1. Click the Mix View button on the left of the Arranger to switch from Arrange view to Mix
view:
2. Open the extended view of the Mixer by clicking the down-pointing arrow on the left of the
Mixer:
3. Click the background of the last header in the top right corner of the Mixer.
→
The Master/Cue channel strip appears underneath.
In this Master/Cue channel strip, do the following to configure the output of the Master chan-
nel:
1. Click Master in the strip’s header to show the controls for the Master channel.
