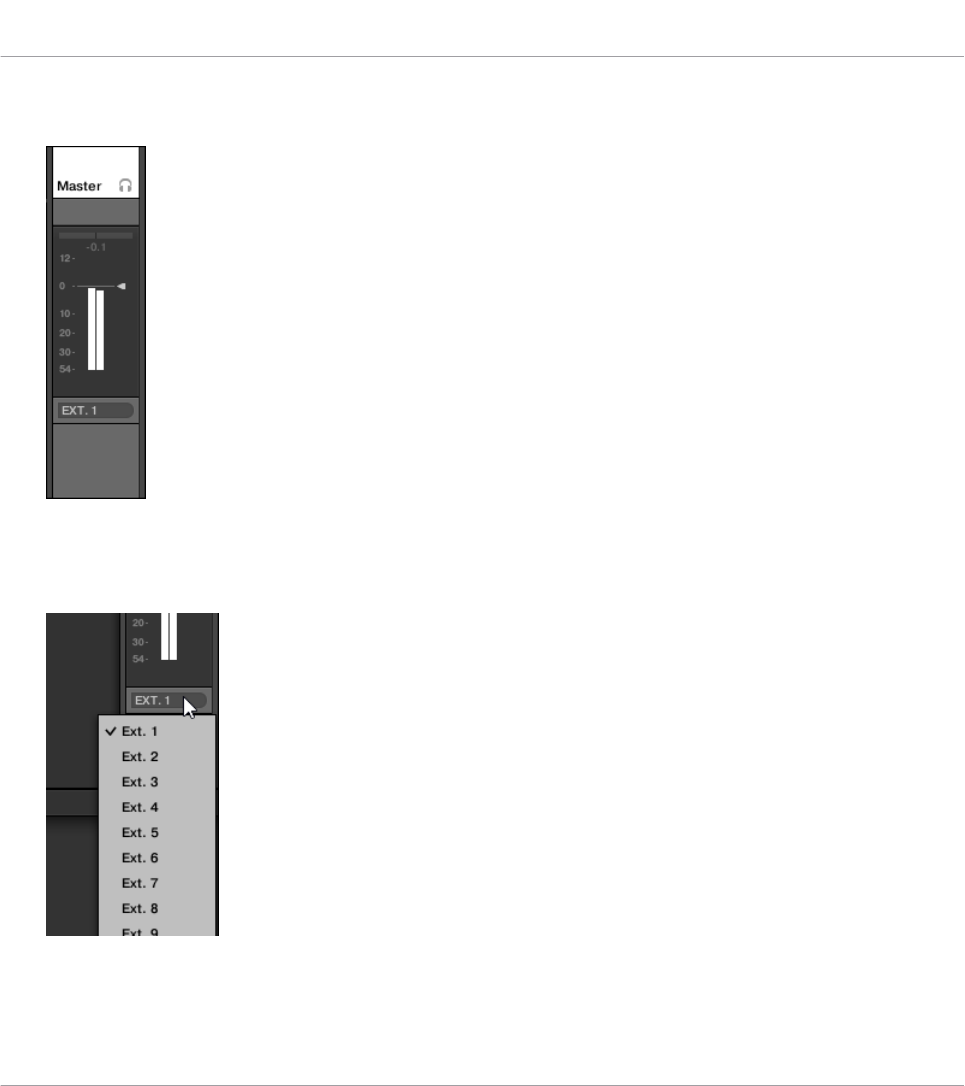

2. To adjust the level and panoramic position of the main output, use the channel’s fader
and balance control (above the fader), respectively.
This is equivalent to setting the Level or Pan parameters in the MAIN section, respectively
(see above).
3. To select another destination for the Master output, click the first area under the level
meter and select the desired destination in the menu.
This is equivalent to setting the Output parameter in the MAIN section (see above).
In this Master/Cue channel strip, do the following to configure the output of the Cue channel:
Audio Routing, Remote Control, and Macro Controls
Audio Routing in MASCHINE
MASCHINE STUDIO - Manual - 368
