the MIDI input from the host.
This is equivalent to enabling the Active button described above.

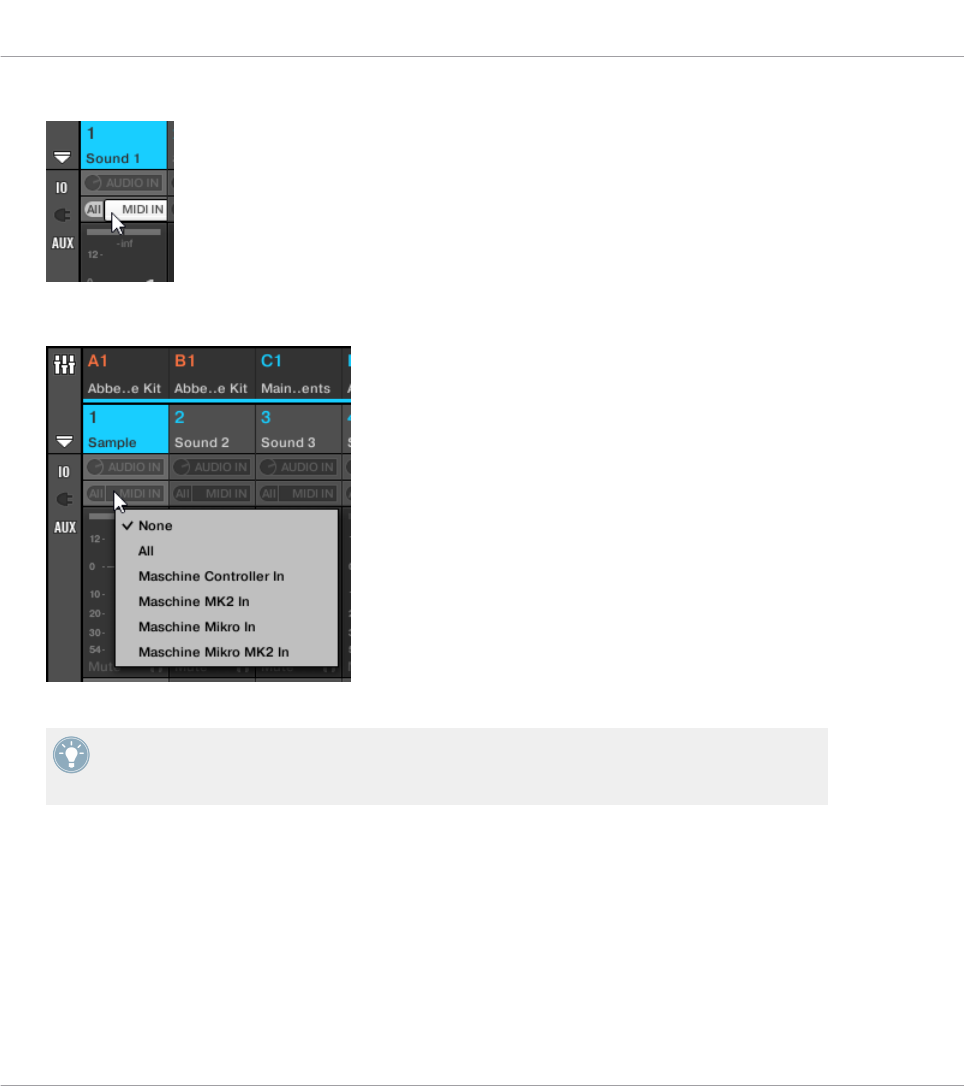

5. Click the little field on its left to select a MIDI channel.
This is equivalent to the Channel parameter described above.
For more information on how to trigger MASCHINE 2 sounds via MIDI Notes in a host Se-
quencer refer to this Knowledge Base Article: http://www.native-instruments.com/knowl-
edge/questions/1780/
8.2.2 Controlling Parameters via MIDI and Host Automation
You can assign many parameters of the Channel properties and Plug-ins located in your various
channels (Sounds, Groups, and Master) of your Project to MIDI messages in order to control
and automate them via MIDI.
In addition, when MASCHINE is running as a plug-in, you can assign these parameters to auto-
mation IDs in order to control and automate them via host automation tracks in your host.
Audio Routing, Remote Control, and Macro Controls
Using MIDI Control and Host Automation
MASCHINE STUDIO - Manual - 376
