▪ Host tab: Click the Host tab to assign automation IDs to automatable parameters if MA-
SCHINE is running as a plug-in. You can then remote control and automate MASCHINE
parameters from your host application.
Under each automatable parameter of the current Parameter page, the Automation pane shows
an Assignment field showing the current assignment for this parameter, if any. If the parameter
has no assignment yet, the Assignment field reads Learn (MIDI tab) or Enable (Host tab). If
the parameter cannot be automated, its Assignment field is grayed out and inactive (see below
to know which parameters can be automated).

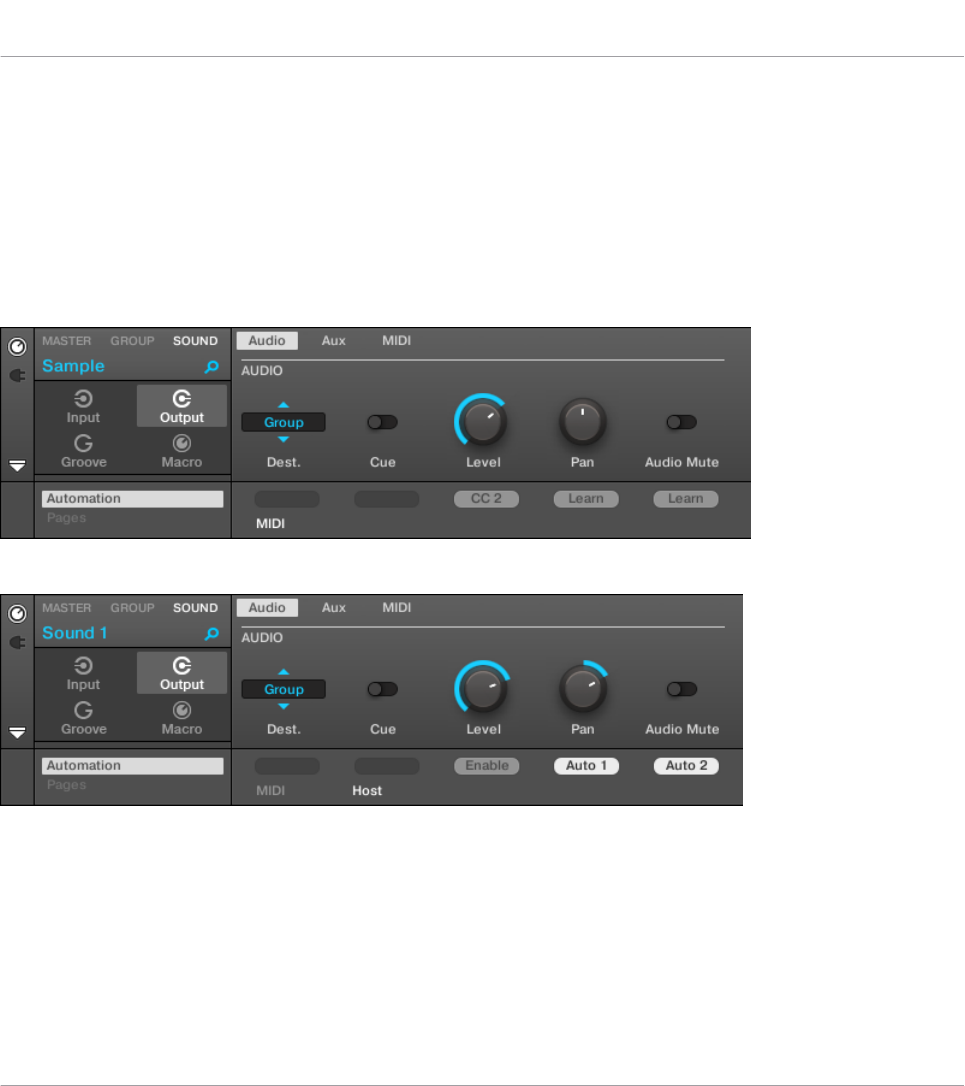

A MIDI CC assignment for the current Parameter page.
A few host automation assignments for the current Parameter page.
The following paragraphs describe in more details how to assign MIDI controls and host auto-
mation IDs to MASCHINE parameters.
Audio Routing, Remote Control, and Macro Controls
Using MIDI Control and Host Automation
MASCHINE STUDIO - Manual - 379
