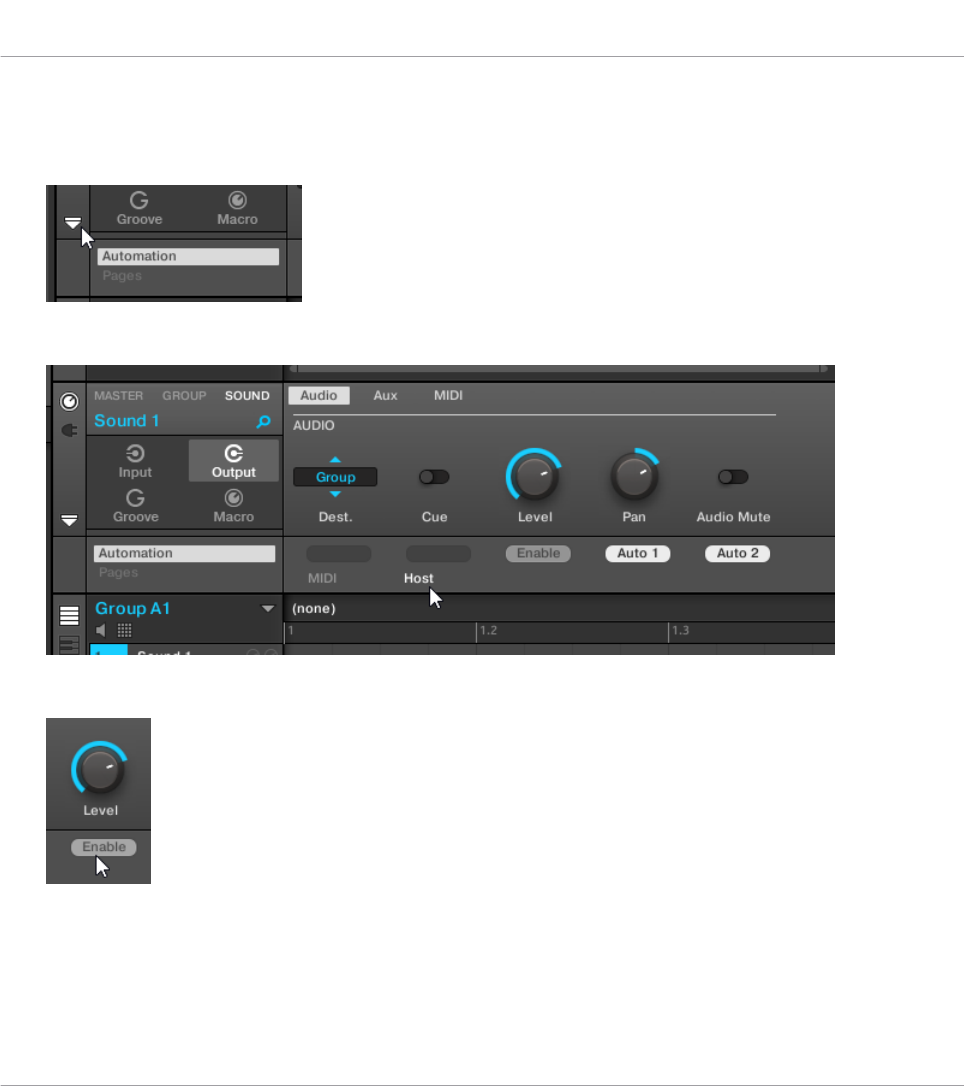

Assigning Host Automation IDs to Parameters (MASCHINE as Plug-in)
1. Click the down-pointing arrow in the bottom left corner of the Control area to open the
Assignment area underneath.
2. On the left of the Assignment area, click the Automation tab to show the Automation
pane, then in this pane click the Host tab.
3. Click the Enable label in the Assignment field under any unassigned parameter to auto-
matically assign that parameter to the next free automation ID.
Audio Routing, Remote Control, and Macro Controls
Using MIDI Control and Host Automation
MASCHINE STUDIO - Manual - 381
