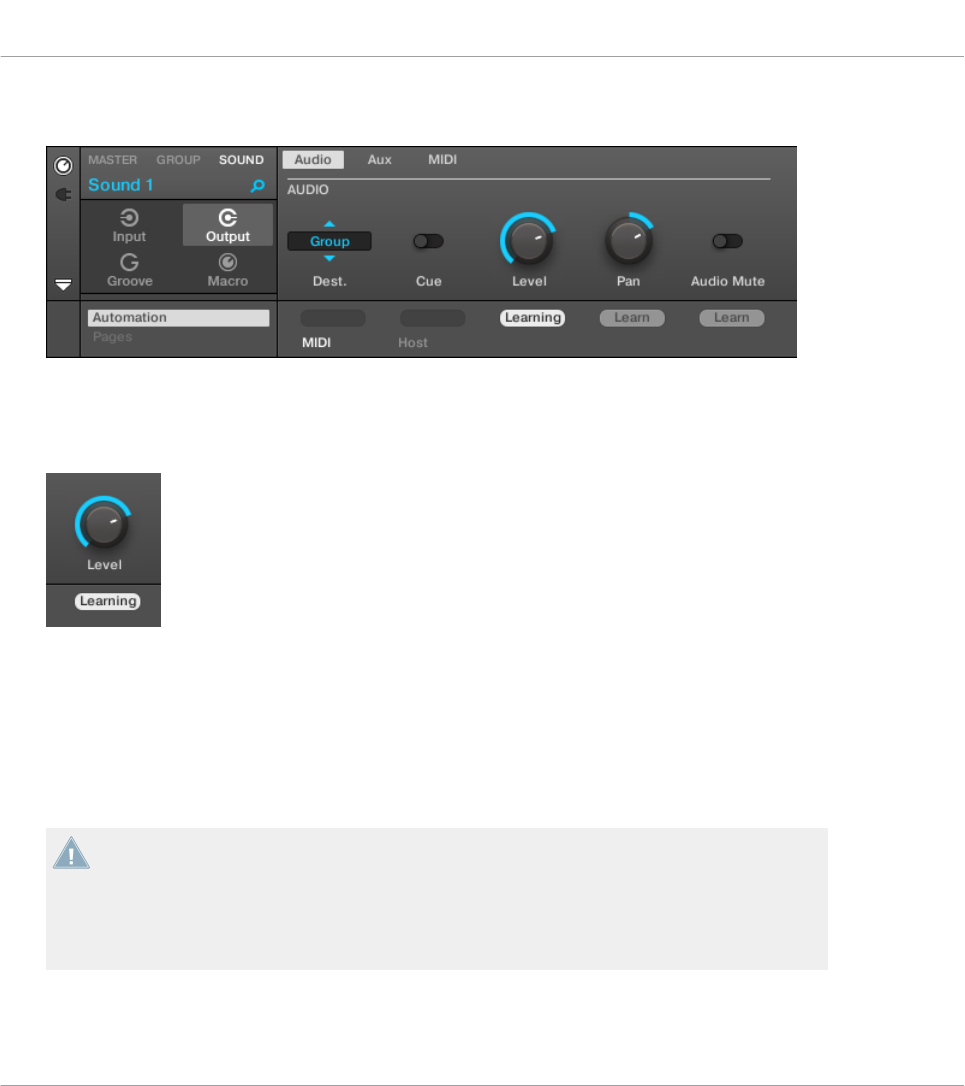

2. On the left of the area, click the Automation tab to show the Automation pane, then in
this pane click the MIDI tab.
In this tab, the Assignment fields for automatable parameters read Learn.
3. Click Learn in the Assignment field of a parameter to enter Learn mode for that parame-
ter.
In the Assignment field Learning will blink.
4. Move the desired control element (knob, button, etc.) on your MIDI controller.
→
The Assignment field automatically displays the MIDI message type received (CC num-
ber, PC for Program Change, or PW for Pitchbend). The parameter is ready to be control-
led via MIDI.
Note that the assignments you create will receive MIDI messages on all channels of all enabled
MIDI ports.
For the Learn mode and the resulting MIDI control to work, MIDI must be correctly config-
ured in MASCHINE. If MASCHINE is running as stand-alone application this is done in the
MIDI page of the Audio and MIDI Settings panel — for more details please refer to section
↑2.6.2, Audio and MIDI Settings – Routing Page. If MASCHINE is running as a plug-in in a
host application the MIDI configuration is done in the host — see section ↑2.4, Stand-
Alone and Plug-in Mode.
