(6) Parameter Label fields: Double-click these fields to enter custom labels for your parameters
(press [Enter] to confirm). These labels will be mirrored everywhere in MASCHINE for the cor-
responding parameters.
(7) Reset button: Click Reset to remove the Macro Control assignment for the selected knob.
Selecting a Parameter in the Target Selector
The Target selector (see picture above) allows you to choose from all available parameters for
each Macro Control.
The Target selector allows you to quickly select the desired parameter.
This tool is similar to a menu containing several levels of submenus — with the notable differ-
ence that every intermediary selection stays visible for faster switching.
When assigning a new, unassigned Macro Control, do the following:
1. Click the Select menu (for now the only menu of the Target selector).
The menu is organized into subcategories: Settings (listing the properties of the current
channel), Slots (listing the Plug-ins loaded in the current channel), and possibly a third
category listing the channels included at the next level: if you’re editing the Macro proper-
ties of the Master you will see the Groups subcategory listing all Groups of your Project,
and if you are editing the Macros of a Group you will see the Sounds subcategory listing
all Sounds in that Group.
2. Upon your selection in the previous menu, the menu takes the name of your selection,
and another menu appears on its right which allows you to refine your search (e.g., by list-
ing all Parameter pages of the selected Plug-in or Channel properties). This continues un-
til a parameter is reached and you select it.
→
Upon the selection of a parameter, the Macro Control is assigned to this parameter.

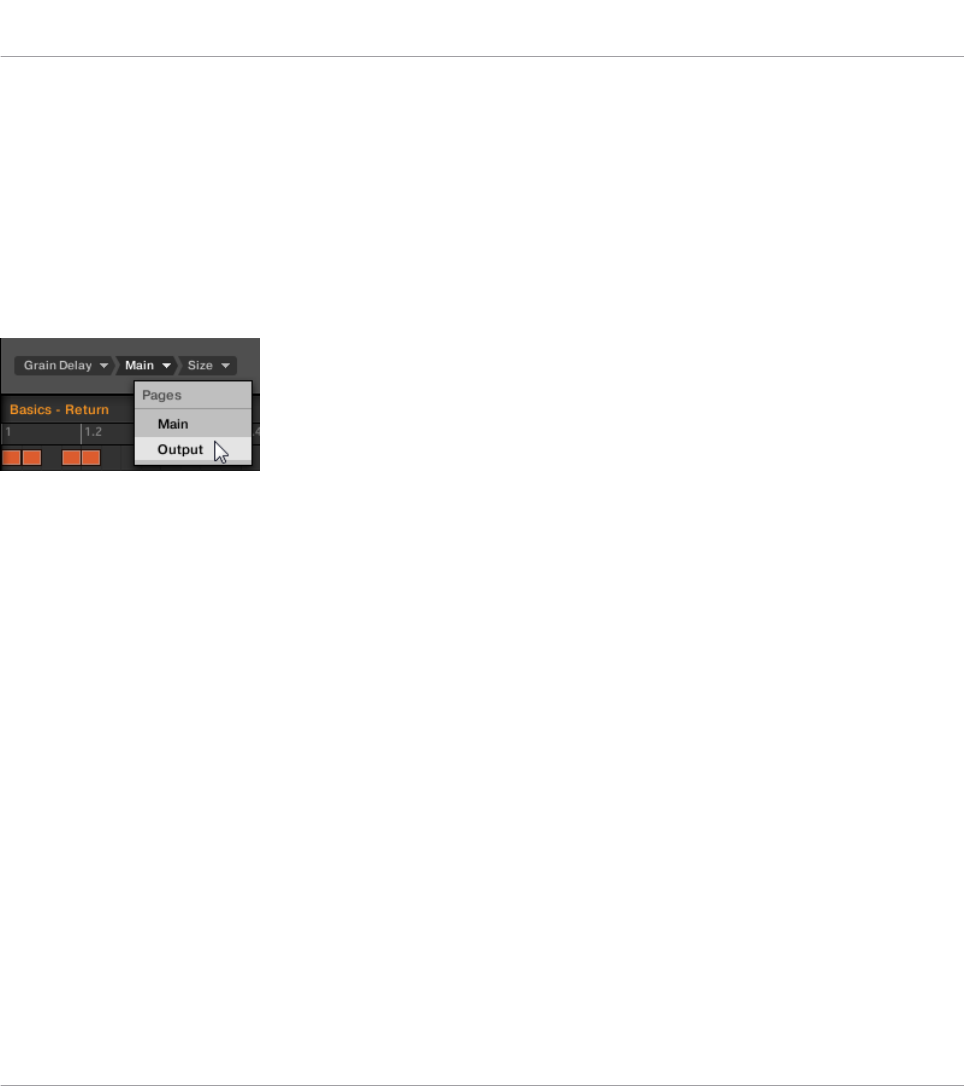

Note that the whole path to this parameter stays visible in the Target selector: this lets you
modify a single selection without starting from the topmost channel and going through the en-
tire selection process again:
Audio Routing, Remote Control, and Macro Controls
Creating Custom Sets of Parameters with the Macro Controls
MASCHINE STUDIO - Manual - 394
