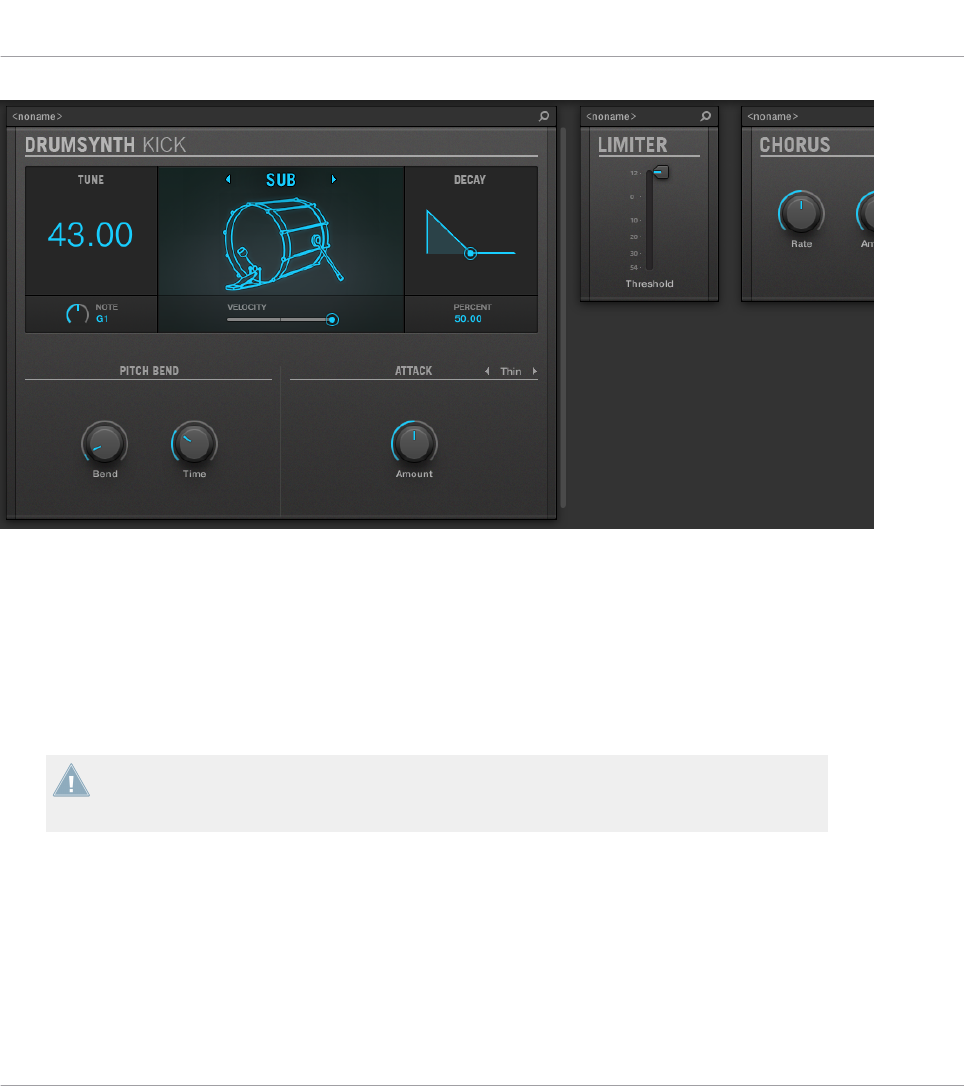

The Plug-in panel of a Drumsynth and two Internal Effects.
As with all other Plug-ins, the panels for Drumsynths and Internal Effects show the Plug-in
Header at the top. This Header contains the name of the current preset and the Quick Browse
icon — see section ↑9.4.1, The Plug-in Header above for more details.
Although parameters are organized differently than in the Parameter pages of the Arrange view,
the panels for Drumsynths and Internal Effects contain the exact same parameters as the Pa-
rameter pages in Arrange view.
The only exceptions are the Compressor, the Gate, and the Limiter: their panels contain an
additional level meter not available in the Control area (gain reduction for the Compressor,
and input level for the Gate and the Limiter).
For an exhaustive description of the parameters available in each panel, please refer to chapter
↑10, Using the Drumsynths for Drumsynths and chapter ↑12, Effect Reference for Internal Ef-
fects.
Controlling Your Mix
The Plug-in Strip
MASCHINE STUDIO - Manual - 418
