Sampler – MAIN Pane

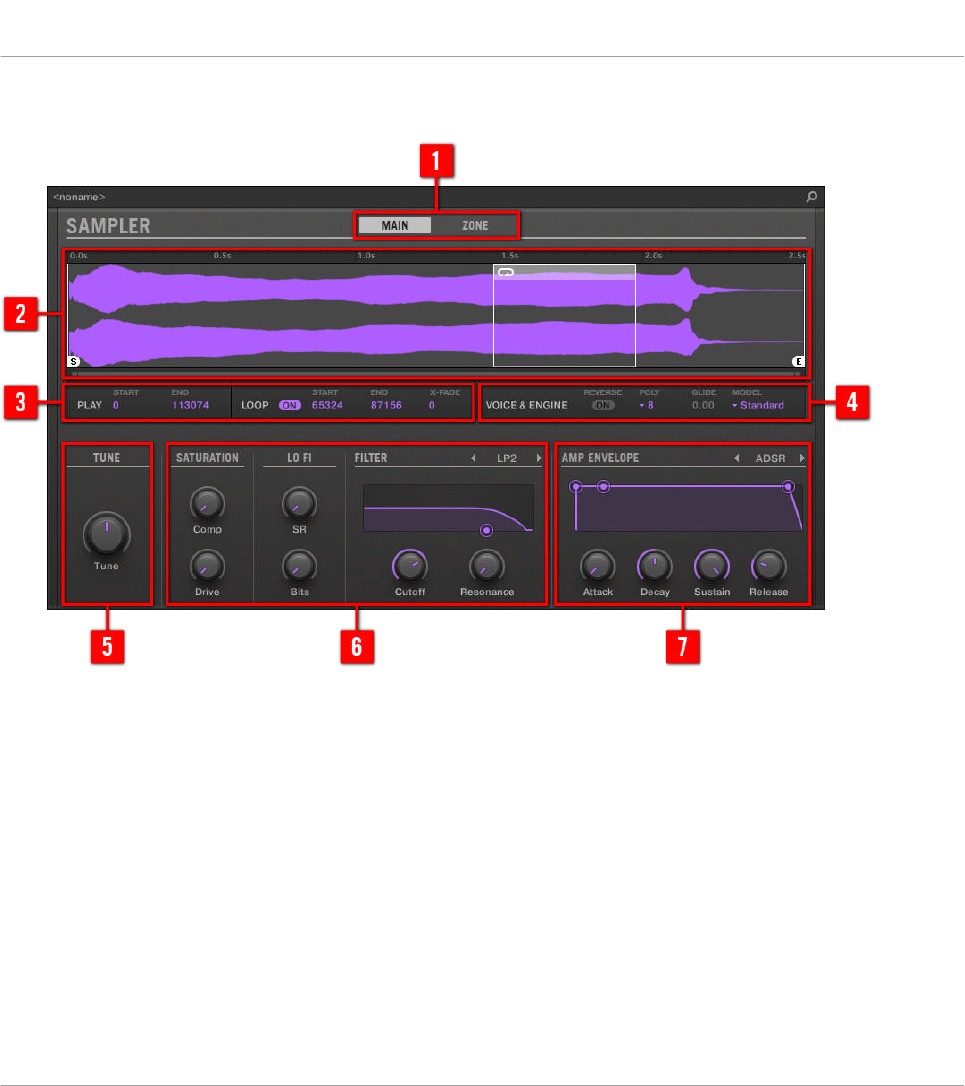

The Sampler in the Plug-in Strip.
(1) Pane selector: Click MAIN or ZONE to show the corresponding pane in the Plug-in.
(2) Sample waveform: Shows the waveform or the Sample used in the selected Zone. It provides
the same features as the waveform found in the Sample view of the Zone page in the Sample
Editor: Start and End markers, zooming, etc. For more details, see section ↑14, Sampling and
Sample Mapping.
(3) PLAY and LOOP sections: Allow you to adjust the play range and loop settings of the selected
zone, respectively. These provide the same parameters as the PLAY RANGE and LOOP sections
found in the Zone page of the Sample Editor. For more details, see section ↑14, Sampling and
Sample Mapping.
