Load the Effect in a New Slot

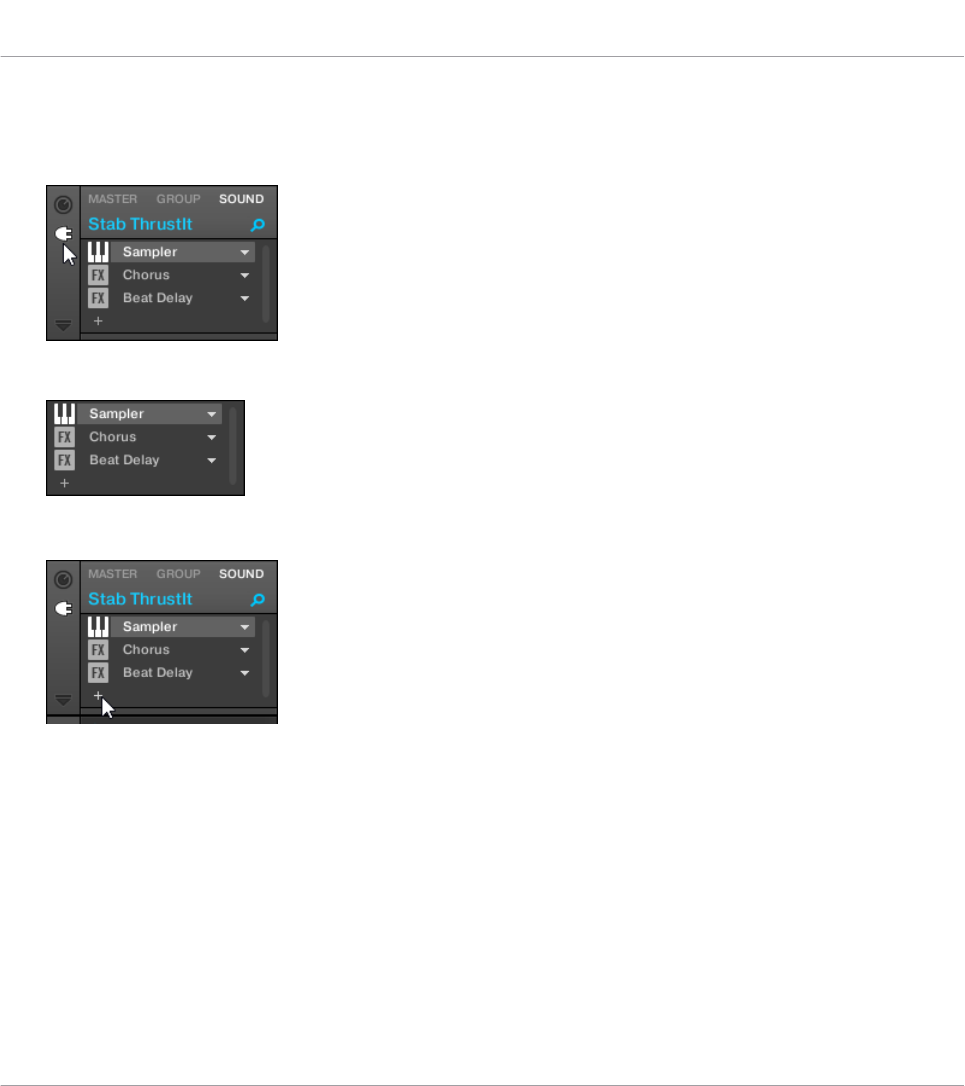

1. At the far left of the Control area, click the little Plug-in icon to display the Plug-ins of the
selected channel:
The icon lights up. The Plug-in List appears nearby, showing a stack of all Plug-ins al-
ready loaded in the channel:
In the Plug-in List each Plug-in has its own slot.
2. Click the “+” icon under the last Plug-in in the list (or at the top if the list is empty).
The Plug-in menu opens and shows a list of all available Effect Plug-ins.
Using Effects
Applying Effects to a Sound, a Group or the Master
MASCHINE STUDIO - Manual - 498
