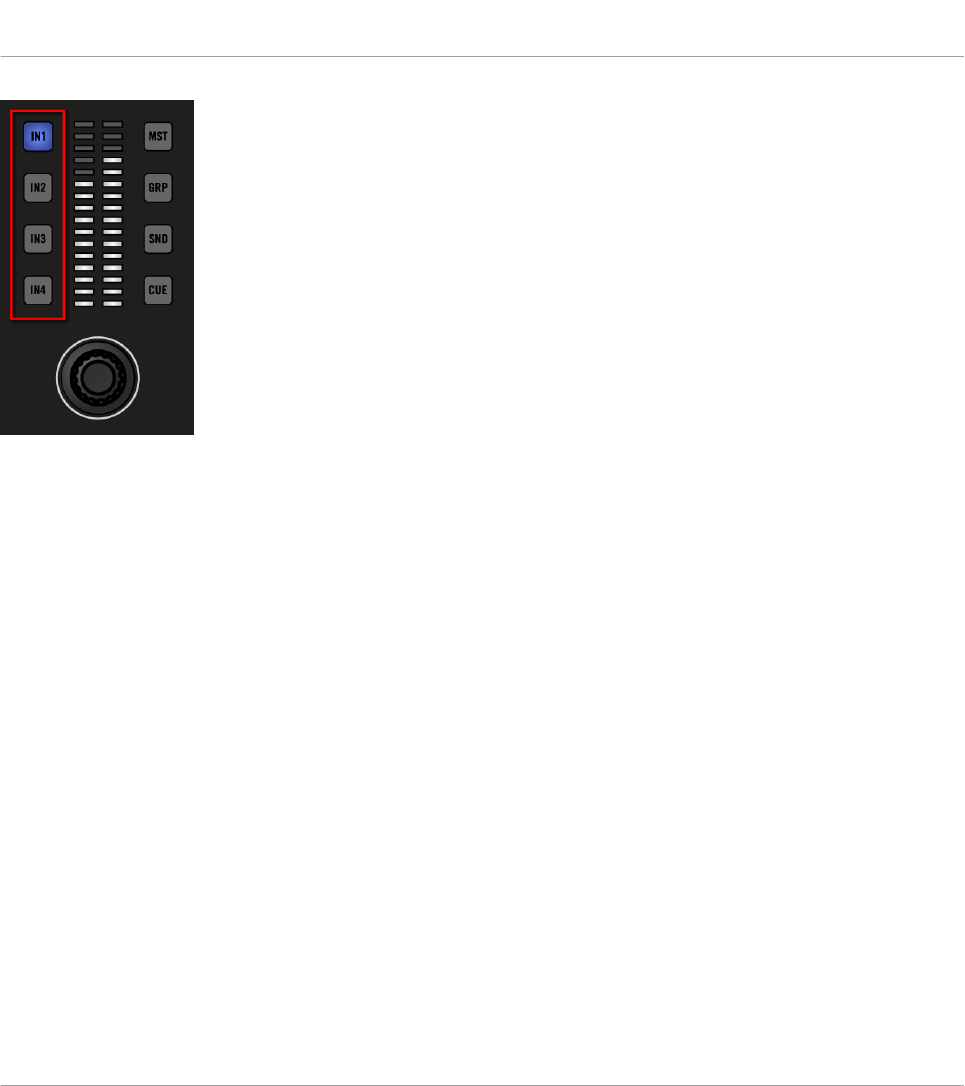

Press either of the IN1–IN4 buttons to select an external input to be routed to the selected Sound. Here the first stereo pair
is selected.
The Master section additionally provides you with very useful features:
▪ Upon your selection the level meter lights up blue and indicates the level of the selected
input pair — and will indicate it until you press another input/output button in the Master
section. At the top of the level meter, red LEDs will indicate any clipping in the input sig-
nal.
▪ The Master encoder allows you to quickly adjust the input gain of the selected input.
Should the level meter above go up to the red clipping LEDs, simply turn the Master en-
coder counterclockwise to attenuate the level of the incoming signal.
▪ If you press another input button at the left of the level meter, you select another external
input for the selected Sound.
▪ If you press an output button at the right of the level meter, your input selection stays
active — this is indicated by the dim lit input button. However, the level meter and Mas-
ter encoder will not be focused on the your input but instead on the selected output. You
must select your input again to control the input level and view it in the level meter.
Method 2: Using the Input Properties
1. Press Button 5 repeatedly until the Input properties are selected (you should see INPUT at
the top left of the right display, under Button 5/6).
