4. Press Button 5/6 to select OUTPUT.

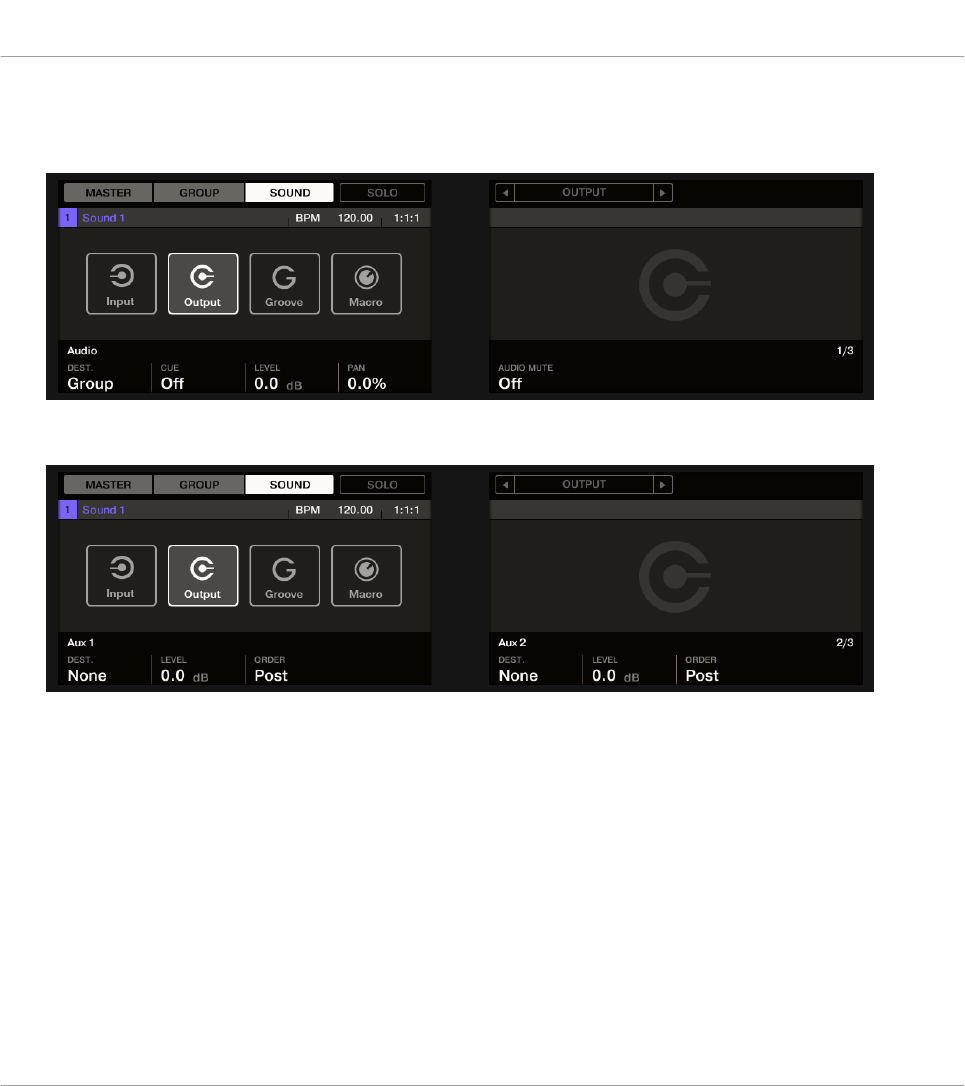

The Output properties are shown in the displays of your controller (in the example under-
neath we show the Output properties of a Sound).
5. Press NAVIGATE + pad 2 to select the Aux page of parameters. You can also use the Page
buttons for this.
6. Turn Knob 1 (Aux 1 DEST.) to assign the first auxiliary output to the desired send effect. In
addition to the usual entries available in both fields, you will find all the Sounds and
Groups with an Effect Plug-in loaded in their first Plug-in slot — see ↑11.3.1, Step 1: Set
Up a Sound or Group as Send Effect above. For each Sound, the entry shows the Group
Using Effects
Creating a Send Effect
MASCHINE STUDIO - Manual - 521
