12.1 Dynamics
12.1.1 Compressor
This is a classic compression effect to control the dynamic information of an audio signal. You
can use the Compressor to fatten up your drums or to control signals that have a very wide dy-
namic range.
In addition to the legacy Classic mode, the Compressor provides an alternate Feedback mode. If
this effect is used in a Sound or a Group, it also provides a Side-Chain Input page (in the Con-
trol area and on your controller).

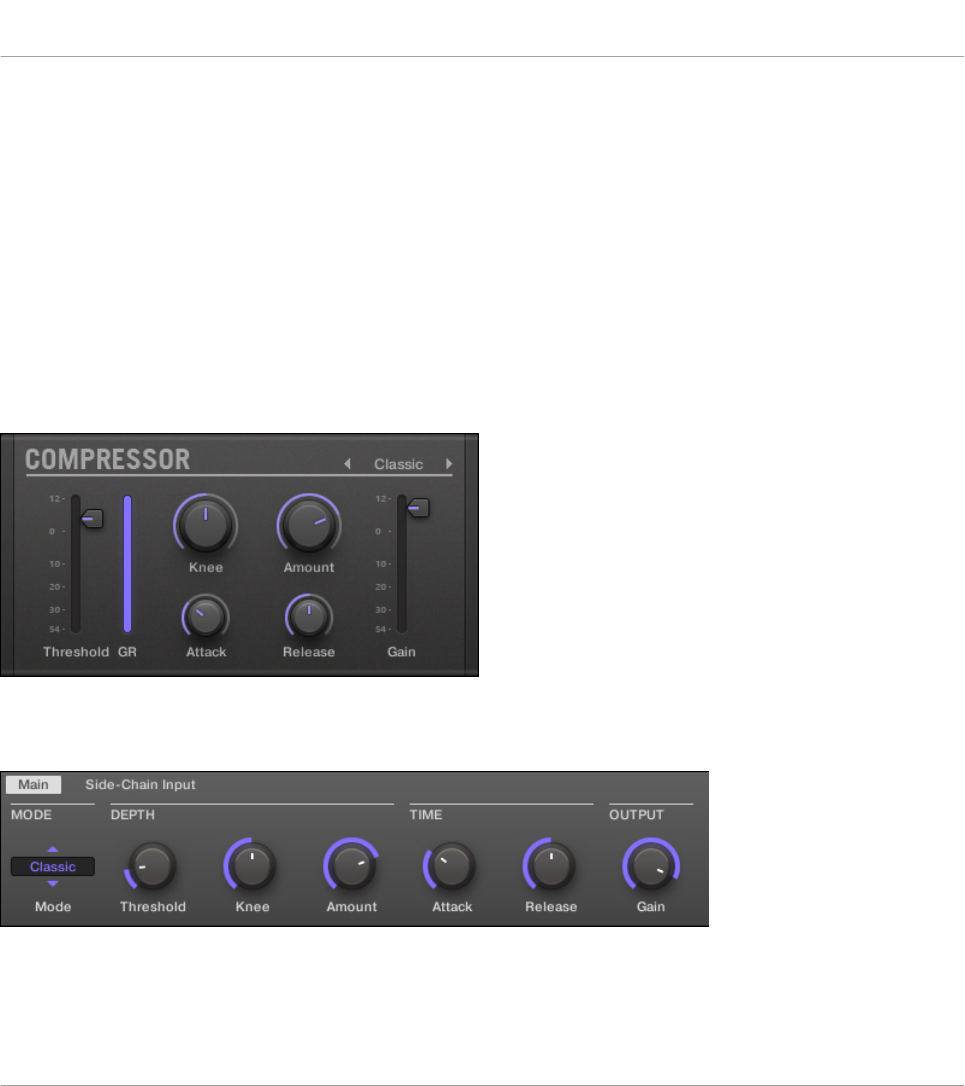

The Compressor panel in the Plug-in Strip.
Main Page
The Compressor in the Control area: Main page.
Effect Reference
Dynamics
MASCHINE STUDIO - Manual - 527
