12.2 Filtering Effects
12.2.1 EQ
Use the EQ to boost or cut selective frequencies of the audio signal. The EQ is mainly a tool to
tailor your audio signal to taste by cutting out selected frequencies or boosting others, but can
also be used as a DJ-style cut-and-boost effect. Please note that in the Control area and on
your controller the EQ parameters are spread over two pages.

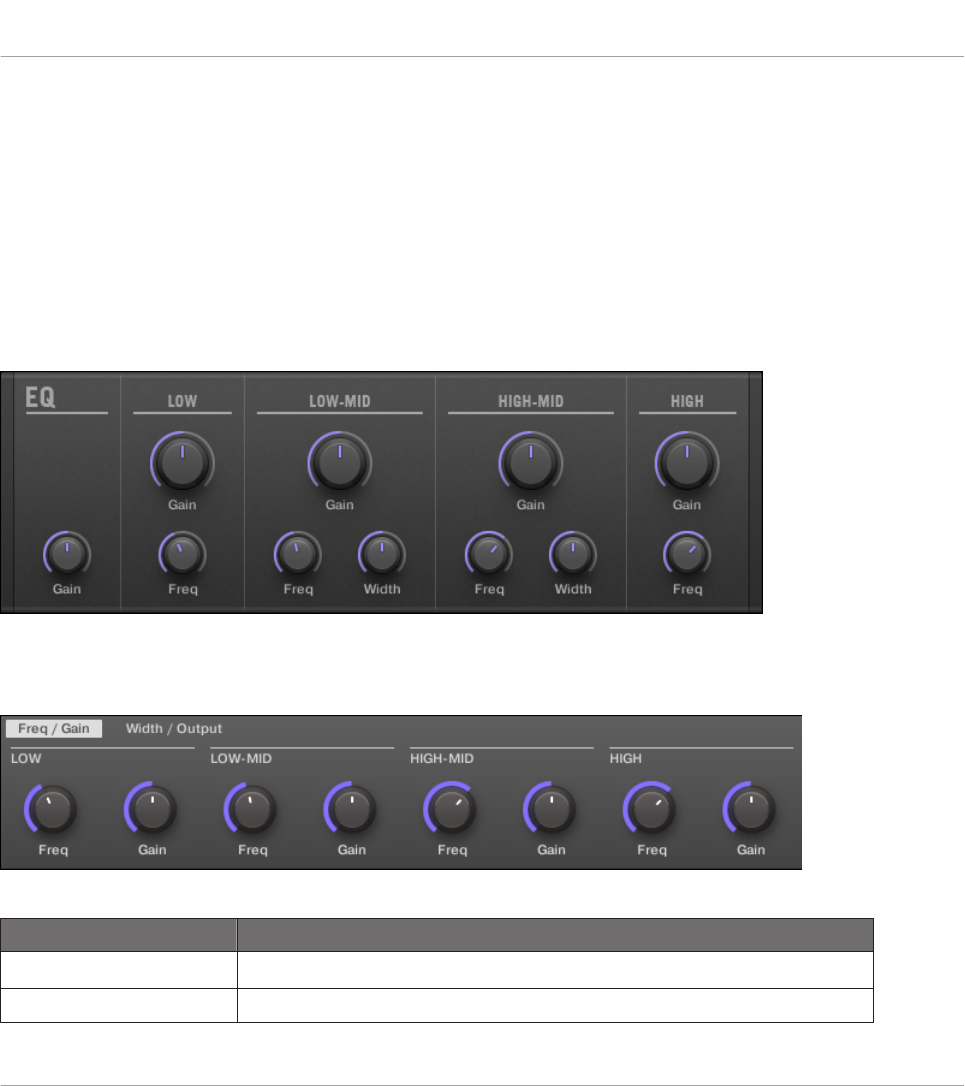

The EQ panel in the Plug-in Strip.
Freq / Gain Page
The EQ in the Control area: Freq / Gain page.
Parameter Description
LOW Section
Freq Frequency selector for the low frequency band. Ranges from 20 Hz to 8 kHz.
