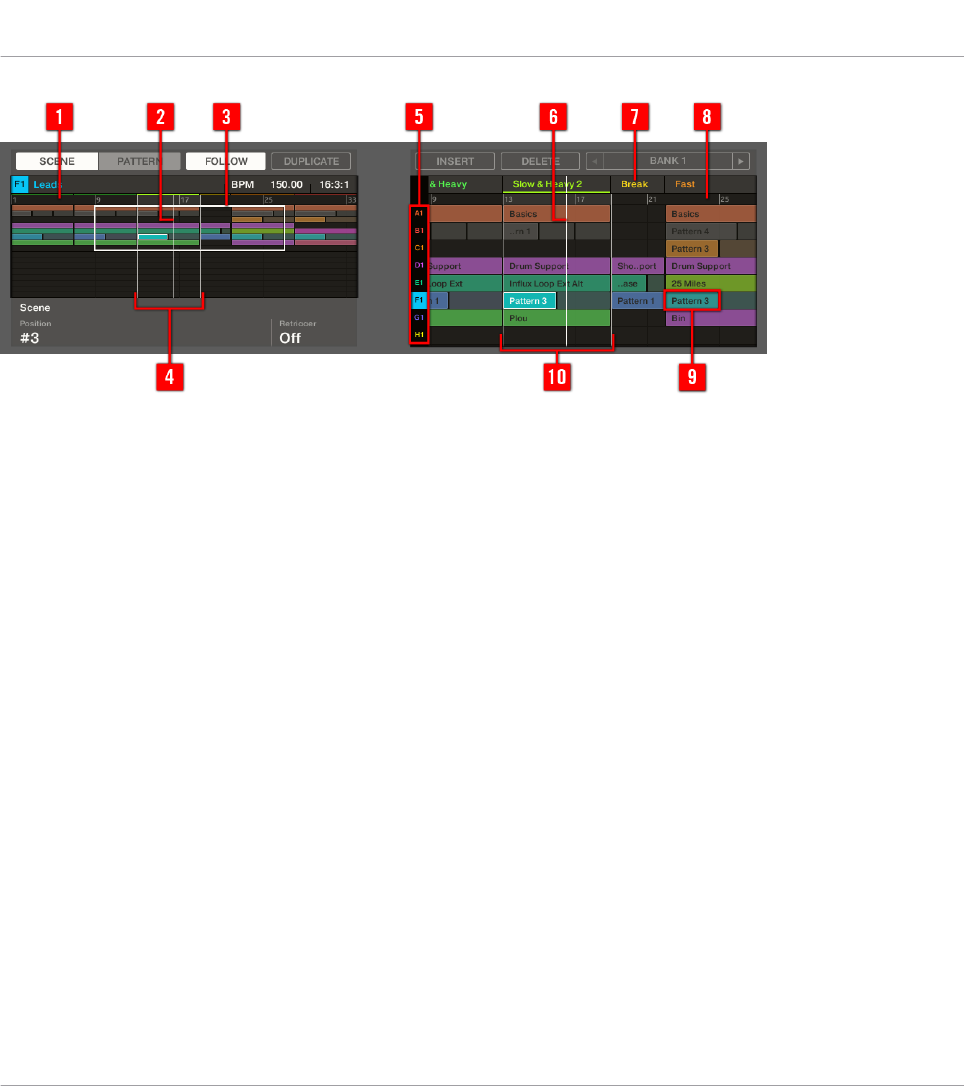

The Scene Arrange mode in the controller displays.

In Scene Arrange mode, the displays of your controller show the following:

▪ The left display provides an overview of the arrangement for your entire Project:

◦ Similarly to the Arranger in the software, you will find Scenes organized in columns

and Groups organized in rows.

◦ The overview includes a timeline (1) and shows the current Loop Range (4). A white

vertical line indicates the current playback position (2). In addition, a frame (3) shows

you which part of your arrangement is currently shown in the right display (see below).

◦ Above the arrangement overview, you see the name of the Project, the focused Group

or the focused Sound (depending on which of the MASTER, GROUP or SOUND tab is

selected in the software’s Control area) along with the current tempo and playback po-

sition.

▪ The right display provides a detailed view of your Clips for a portion of your arrangement:

◦ Similarly to the left display and the Arranger in the software, you will find Scenes or-

ganized in columns and Groups organized in rows.

◦ Vertically, only one Group bank is shown: At any time you will see the Group bank

containing the focused Group. The eight Groups are represented in the leftmost col-

umn by their bank letter and index number (5). The focused Group is highlighted.

Creating a Song Using Scenes

Managing Scenes

MASCHINE STUDIO - Manual - 599
