◦ The Loop Range is set to the selected Scene — see section ↑13.3.1, Selecting a Loop
Range.
◦ If playback is off the playhead immediately jumps to the beginning of the selected
Scene. If playback is on the playhead jumps according to the Perform Grid settings —
see section ↑13.3.2, Jumping to Other Scenes.
▪ If you have selected a Scene within the current Loop Range via the Page buttons, the
Loop Range and the playback position stay untouched.
13.2.3 Creating Scenes
You can create a new Scene via the Scene Manager or directly in the Arranger.
Creating a Scene in the Arranger
►
To create a new Scene, click the “+” button located after all existing Scene names in the
top row of the Arranger.

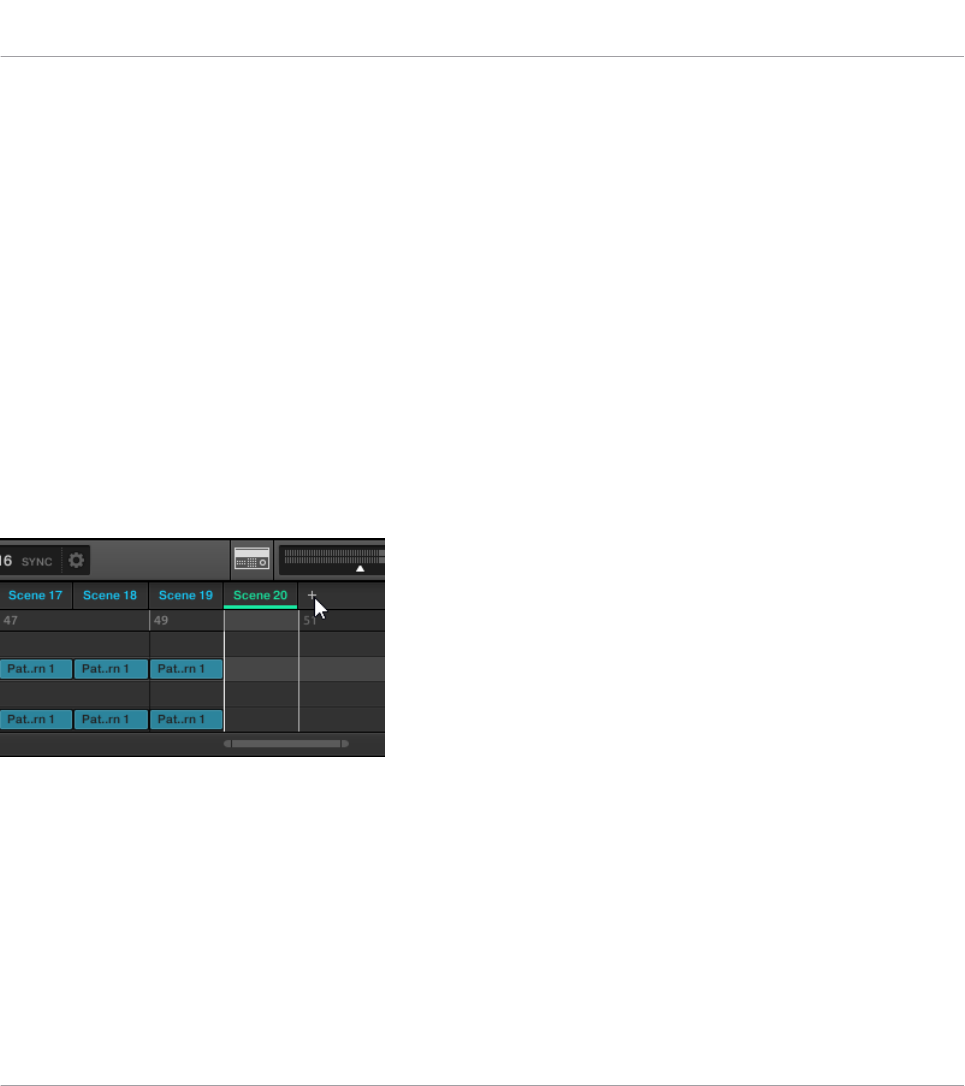

Click the “+” button to create a new Scene.
→
A new empty Scene is created after all existing Scenes. The new Scene also appears in
the Scene Manager — it will be located in the last non-empty Scene bank right after the
last Scene slot.
Creating a Scene in the Scene Manager
1. Open the Scene Manager (see ↑13.2.1, Scene Management Overview).
