In the software, the Perform Grid and the Retrigger setting can be adjusted in the MASCHINE
Header:

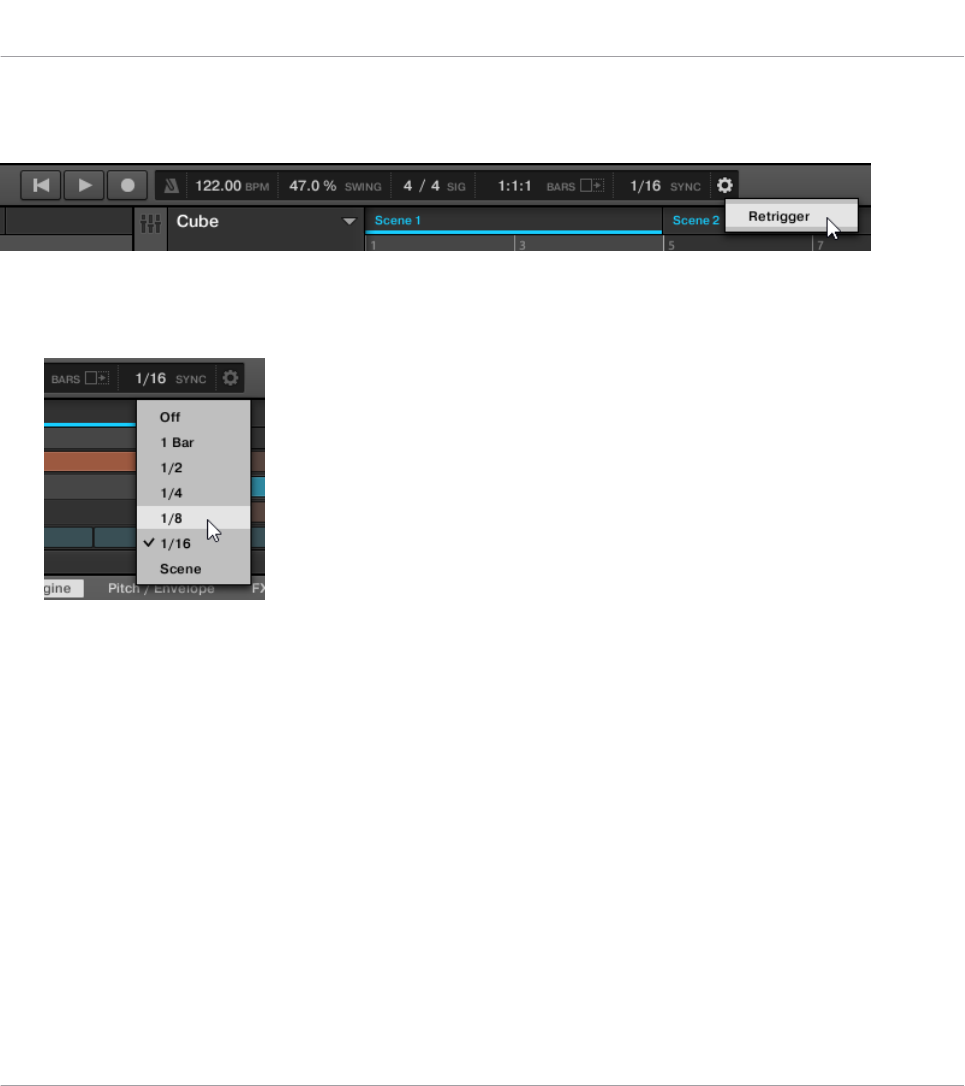

Adjusting the Perform Grid and Retrigger setting.
►
To adjust the Perform Grid, click the value left of the SYNC label in the MASCHINE
Header and select the desired division from the menu:
→
The next time you select a new Scene or group of Scenes for looping, the switch will hap-
pen on the next division selected here.
►
To enable/disable the Retrigger setting, click the little cog wheel in the MASCHINE
Header and select Retrigger from the menu.
→
The next time you select a new Scene or group of Scenes for looping, the new loop will
start from the beginning of the first Scene (Retrigger enabled) or from the same position
as where it left the current Scene (Retrigger disabled).
13.3.2.1 Adjusting the Perform Grid on Your Controller
To adjust the Perform Grid:
1. Press and hold GRID to enter Grid mode (or pin it by pressing GRID + Button 1).
