2. Press Button 2 (PERFORM) to access the Perform Grid settings.

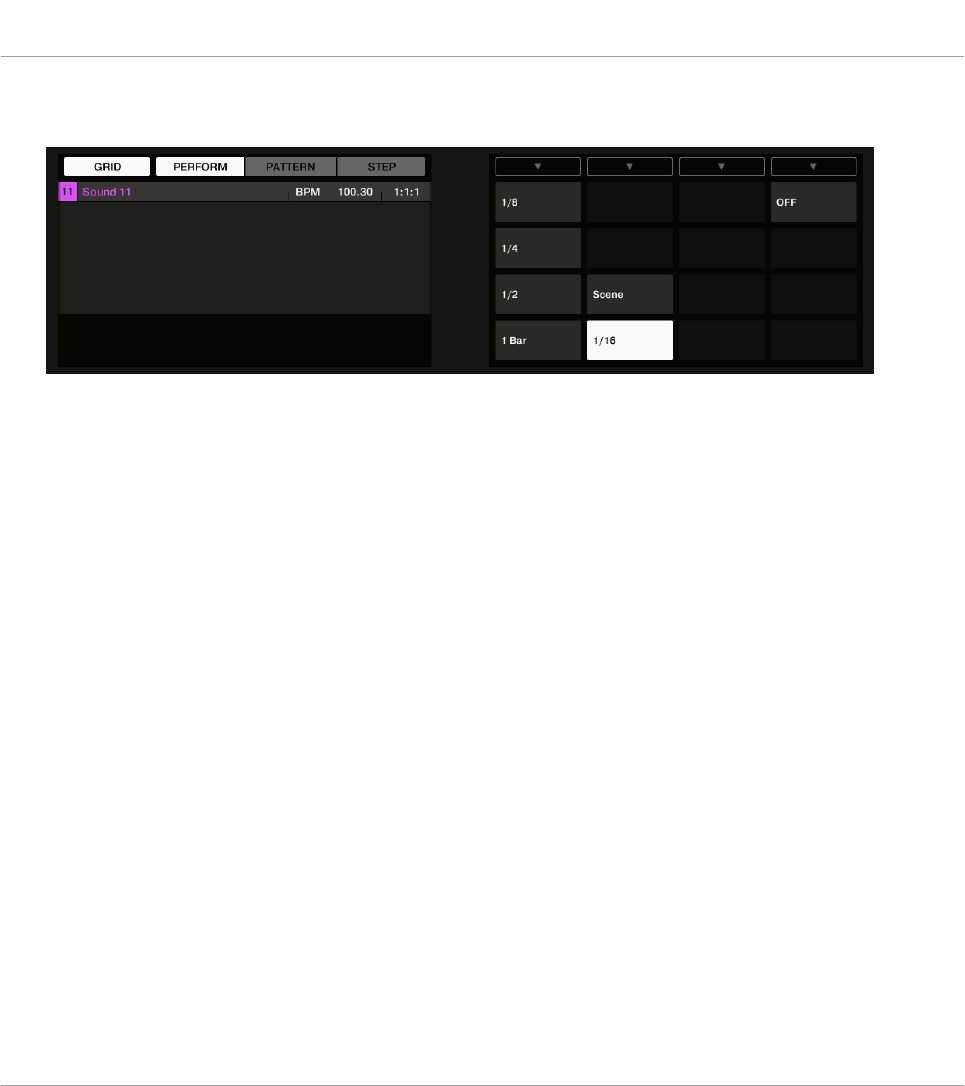

The right display will show you which pad represents which resolution:
3. Select a resolution by pressing the corresponding pad. Alternatively you can press But-
ton 5, 6 or 8 to successively select each of the resolutions in the corresponding column.
→
The selected value is highlighted on the right display and the corresponding pad turns
fully lit. The next time you select a new Scene or group of Scenes for looping, the switch
will happen on the next division selected here.
To disable the Pattern Grid, simply select the OFF value in the top right corner:
►
To disable the Pattern Grid, hold GRID, press Button 2 (PERFORM), then press pad 16
(OFF).
13.3.2.2 Adjusting the Retrigger Setting on the MASCHINE STUDIO Controller
To adjust the Retrigger setting:
1. Press and hold SCENE to enter Scene mode (you can pin it by pressing Button 1) or press
ARRANGE and Button 1 (SCENE) to enter Scene Arrange mode.
2. Turn Knob 4 (Retrigger) to select the desired value.
→
The next time you select a new Scene or group of Scenes for looping, the new loop will
start from the beginning of the first Scene (Retrigger enabled) or from the same position
as where it left the current Scene (Retrigger disabled).
Creating a Song Using Scenes
Playing with Scenes
MASCHINE STUDIO - Manual - 628
