In the Sample Editor, click the Record tab at the top to open the Record page.

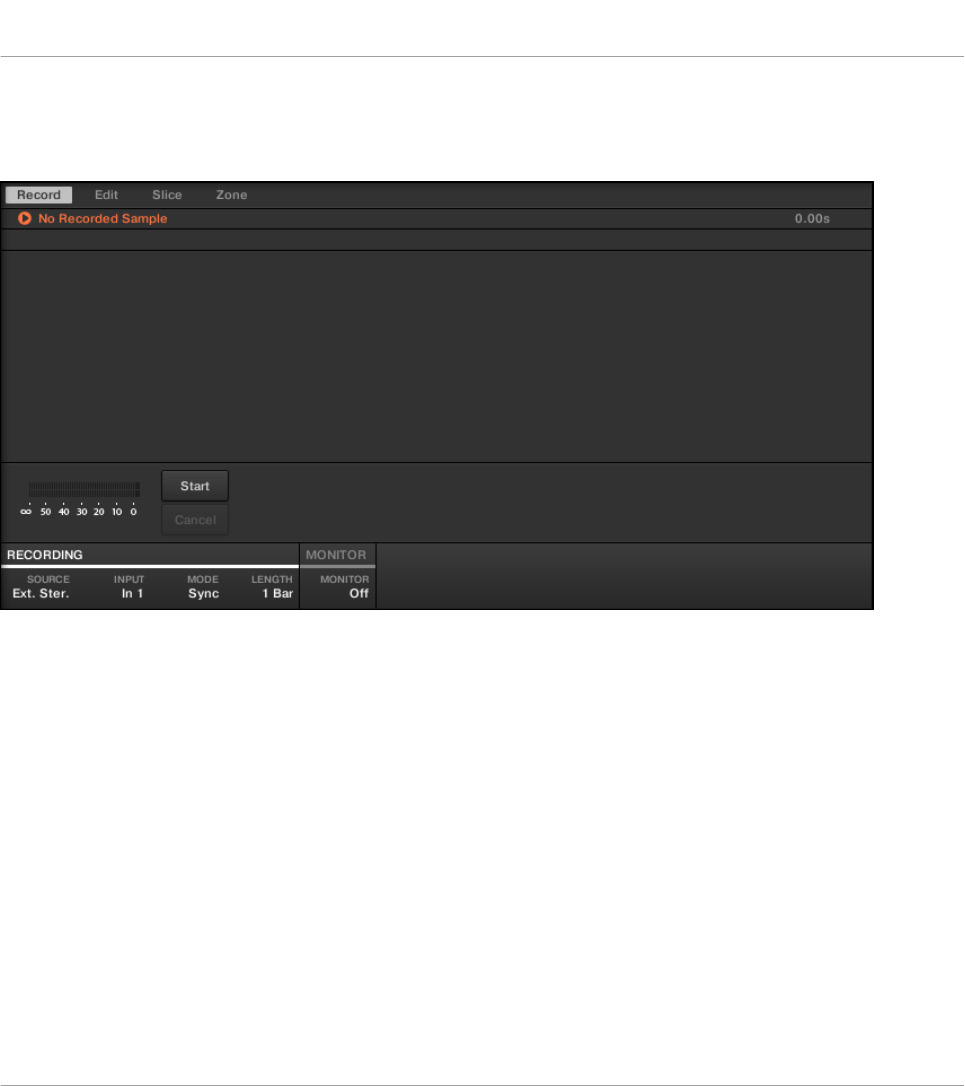

The Record page looks as follows:
The Record page in the software.
14.2.1.1 Opening the RECORD Page on Your Controller
►
In Sampling mode, press Button 1 to access the RECORD page.
The RECORD page looks as follows:
Sampling and Sample Mapping
Recording a Sample
MASCHINE STUDIO - Manual - 634
