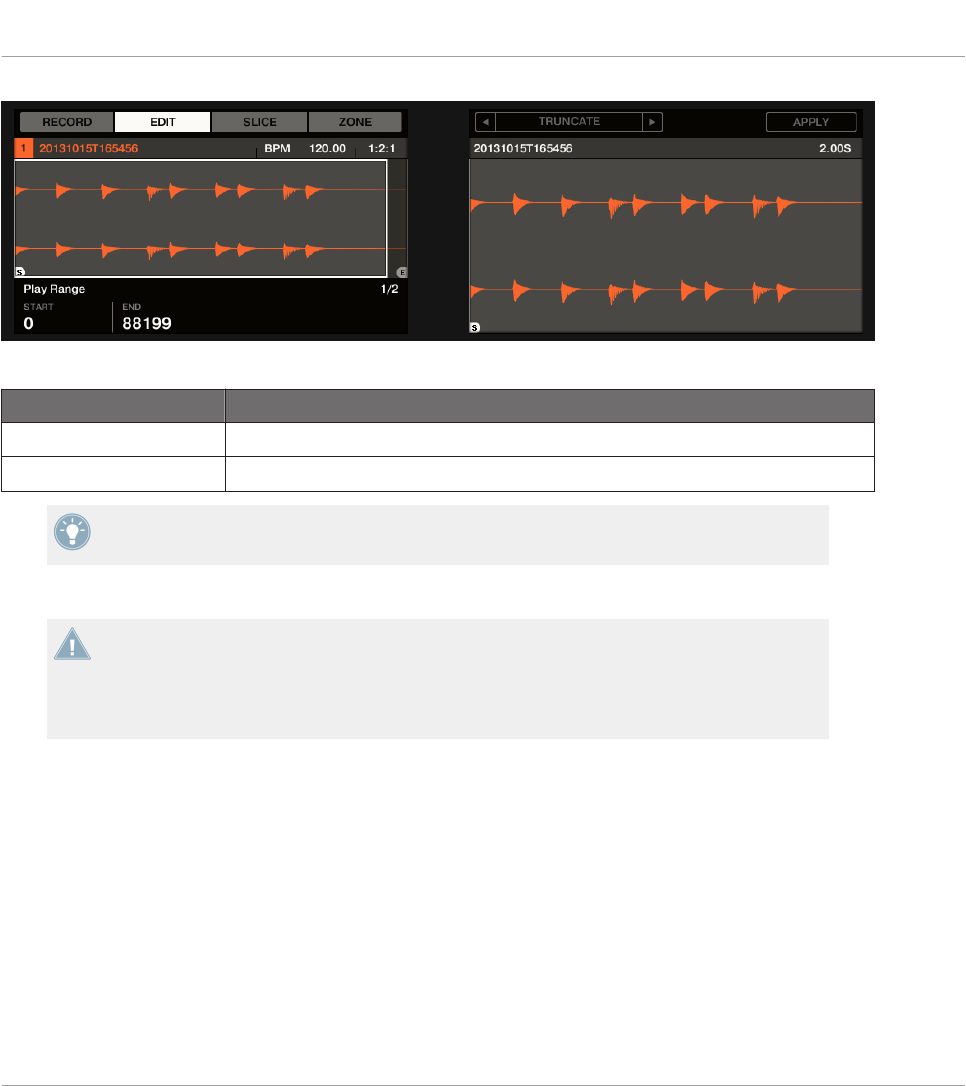

The EDIT page on the controller, page 1 of 2: adjusting the play range of the Sample.
Parameter Description
START (Knob 1)
Adjusts the start point of the play range in the Sample.
END (Knob 2)
Adjusts the end point of the play range in the Sample.
Hold SHIFT when turning the Knobs to adjust the parameters in finer increments.
In the waveform on the right display, the regions outside the play range are grayed out.
If a loop has been defined in the Sample, it is also indicated on the waveform. Loops can
be created and adjusted in the ZONE page — see section ↑14.5.5, Selecting and Editing
Zones in the Map View. Note that the loop will always stay within the play range. Therefore,
when moving the Sample’s start and end points closer to each other, keep in mind that it
might also shrink the loop!
Page 2 – SELECTION RANGE Parameters
The parameters in the SELECTION RANGE section allow you to adjust the range to which audio pro-
cessing functions will be applied.
