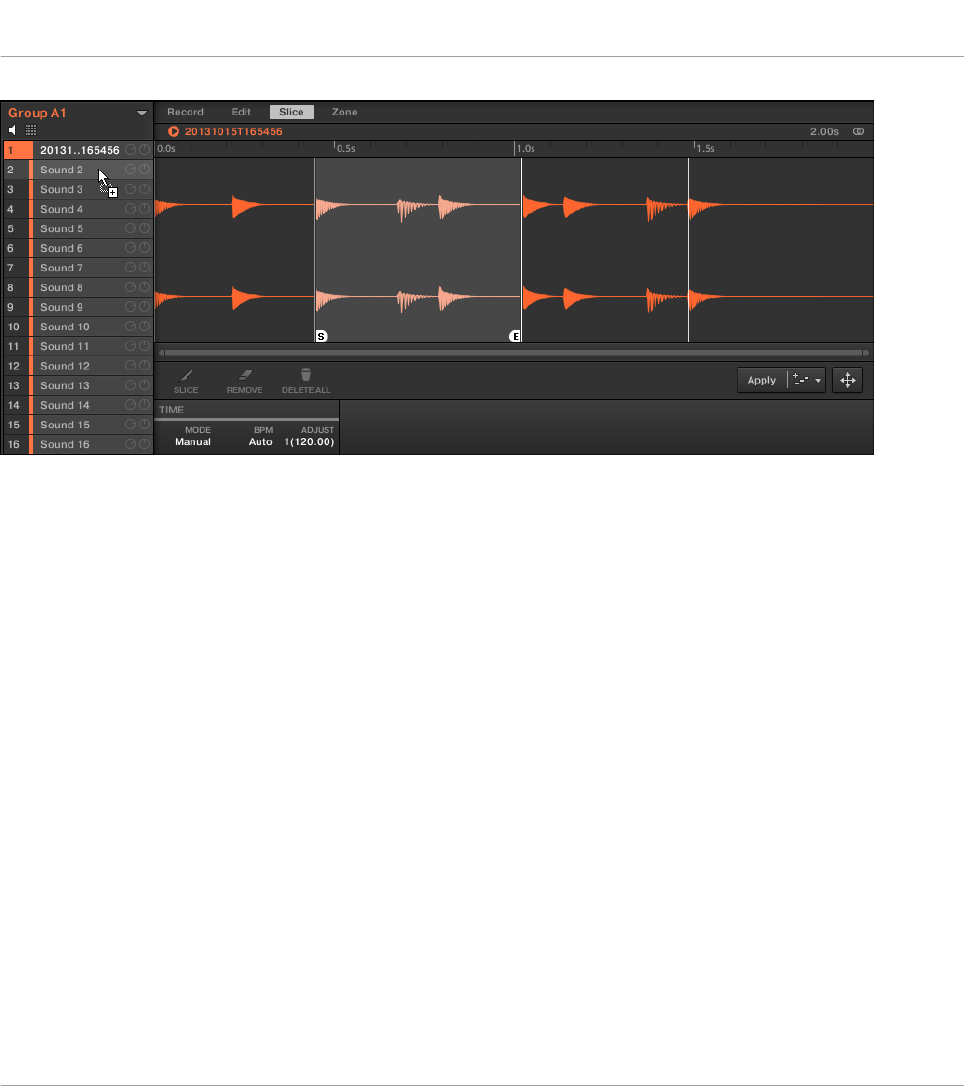

Dragging an individual Slice to another Sound.
If you drag a Slice to a Group in the Group List (at the left of the Arranger), it will be exported
to the first Sound slot of that Group. Any Sound loaded in that Sound slot will be replaced.
14.4.4.1 Exporting the Slices on Your Controller
Once you are satisfied with the proposed and/or manually adjusted Slices (see section
↑14.4.2, Adjusting the Slicing Settings), you can apply the slicing in order to actually cut the
original Sample and create these Slices. This is done via the two commands at the top of the
right display: APPLY TO (Button 7) and APPLY (Button 8).
APPLY TO: Choosing a Destination for the Slices
►
Press Button 7 (APPLY TO) to export the Slices to any Sound or Group in your Project.
→
The displays switch to a Selection mode allowing you to choose a destination for the ex-
ported Slices.
Sampling and Sample Mapping
Slicing a Sample
MASCHINE STUDIO - Manual - 676
