Table Of Contents

Title Page
Disclaimer
Contact
Table of Contents
1 Welcome to MASCHINE!
- 1.1 Where to Start?
- 1.2 What’s New in MASCHINE 2.0?
- 1.3 Manual Conventions
  - 1.3.1 Unlabeled Buttons and Knobs on the MASCHINE STUDIO Controller
2 Basic Concepts
- 2.1 Names and Concepts You Should Know
- 2.2 Adjusting the MASCHINE User Interface
- 2.3 Common Operations
- 2.4 Stand-Alone and Plug-in Mode
- 2.5 Preferences
- 2.6 Audio and MIDI Settings
- 2.7 Integrating MASCHINE into Your MIDI Setup
- 2.8 Using Footswitches with Your MASCHINE STUDIO Controller
3 Browser
- 3.1 Browser Basics
  - 3.1.1 The MASCHINE Library
  - 3.1.2 Browsing the Library vs. Browsing Your Hard Disks
- 3.2 Searching and Loading Files from the Library
- 3.3 Additional Browsing Tools
- 3.4 Editing the Files’ Tags and Properties
- 3.5 Loading and Importing Files from Your File System
- 3.6 Locating Missing Samples
- 3.7 Using Quick Browse
  - 3.7.1 Using Quick Browse on the MASCHINE STUDIO Controller
4 Managing Sounds, Groups, and Your Project
- 4.1 Overview of the Sounds, Groups, and Master
- 4.2 Managing Sounds
- 4.3 Managing Groups
- 4.4 Exporting MASCHINE Objects and Audio
- 4.5 Importing Third-Party File Formats
  - 4.5.1 Loading REX Files into Sound Slots
  - 4.5.2 Importing MPC Programs to Groups
5 Playing on Your Controller
- 5.1 Adjusting Your Pads
- 5.2 Playing Tools
6 Working with Plug-ins
- 6.1 Plug-in Overview
- 6.2 The Sampler Plug-in
- 6.3 Using Native Instruments and External Plug-ins
7 Working with Patterns
- 7.1 Pattern Basics
- 7.2 Recording Patterns in Real Time
- 7.3 Recording Patterns with the Step Sequencer
- 7.4 Editing Events
- 7.5 Recording and Editing Modulation
- 7.6 Creating MIDI Tracks from Scratch in MASCHINE
- 7.7 Managing Patterns
- 7.8 Importing/Exporting Audio and MIDI to/from Patterns
8 Audio Routing, Remote Control, and Macro Controls
- 8.1 Audio Routing in MASCHINE
- 8.2 Using MIDI Control and Host Automation
- 8.3 Creating Custom Sets of Parameters with the Macro Controls
  - 8.3.1 Macro Control Overview
    - 8.3.1.1 Macro Control Shortcut on the MASCHINE STUDIO Controller
  - 8.3.2 Assigning Macro Controls
9 Controlling Your Mix
- 9.1 Mix View Basics
  - 9.1.1 Switching between Arrange View and Mix View
    - 9.1.1.1 Switching between Arrange View and Mix View on the MASCHINE STUDIO Controller
  - 9.1.2 Mix View Elements
- 9.2 The Mixer
- 9.3 The Plug-in Chain
- 9.4 The Plug-in Strip
- 9.5 Controlling Your Mix from Your Controller
10 Using the Drumsynths
- 10.1 Drumsynths – General Handling
- 10.2 The Kicks
- 10.3 The Snares
- 10.4 The Hi-hats
- 10.5 The Toms
- 10.6 The Percussions
11 Using Effects
- 11.1 Applying Effects to a Sound, a Group or the Master
- 11.2 Applying Effects to External Audio
- 11.3 Creating a Send Effect
- 11.4 Creating Multieffects
12 Effect Reference
- 12.1 Dynamics
- 12.2 Filtering Effects
  - 12.2.1 EQ
  - 12.2.2 Filter
- 12.3 Modulation Effects
- 12.4 Spatial and Reverb Effects
- 12.5 Delays
- 12.6 Distortion Effects
13 Creating a Song Using Scenes
- 13.1 Arranger Basics
- 13.2 Managing Scenes
- 13.3 Playing with Scenes
  - 13.3.1 Selecting a Loop Range
    - 13.3.1.1 Selecting a Loop Range on the MASCHINE STUDIO Controller
  - 13.3.2 Jumping to Other Scenes
    - 13.3.2.1 Adjusting the Perform Grid on Your Controller
    - 13.3.2.2 Adjusting the Retrigger Setting on the MASCHINE STUDIO Controller
- 13.4 Triggering Scenes via MIDI (MASCHINE Plug-in Only)
14 Sampling and Sample Mapping
- 14.1 Opening the Sample Editor
  - 14.1.1 Entering Sampling Mode on Your Controller
- 14.2 Recording a Sample
- 14.3 Editing a Sample
  - 14.3.1 Using the Edit Page
    - 14.3.1.1 Using the EDIT Page on Your Controller
  - 14.3.2 Audio Editing Functions
    - 14.3.2.1 Audio Editing Functions on Your Controller
- 14.4 Slicing a Sample
- 14.5 Mapping Samples to Zones
15 Troubleshooting – Getting Help
- 15.1 Troubleshooting
- 15.2 Getting Help
16 Appendix: Tips for Playing Live
- 16.1 Preparations
- 16.2 Basic Techniques
- 16.3 Special Tricks
17 Glossary
Index

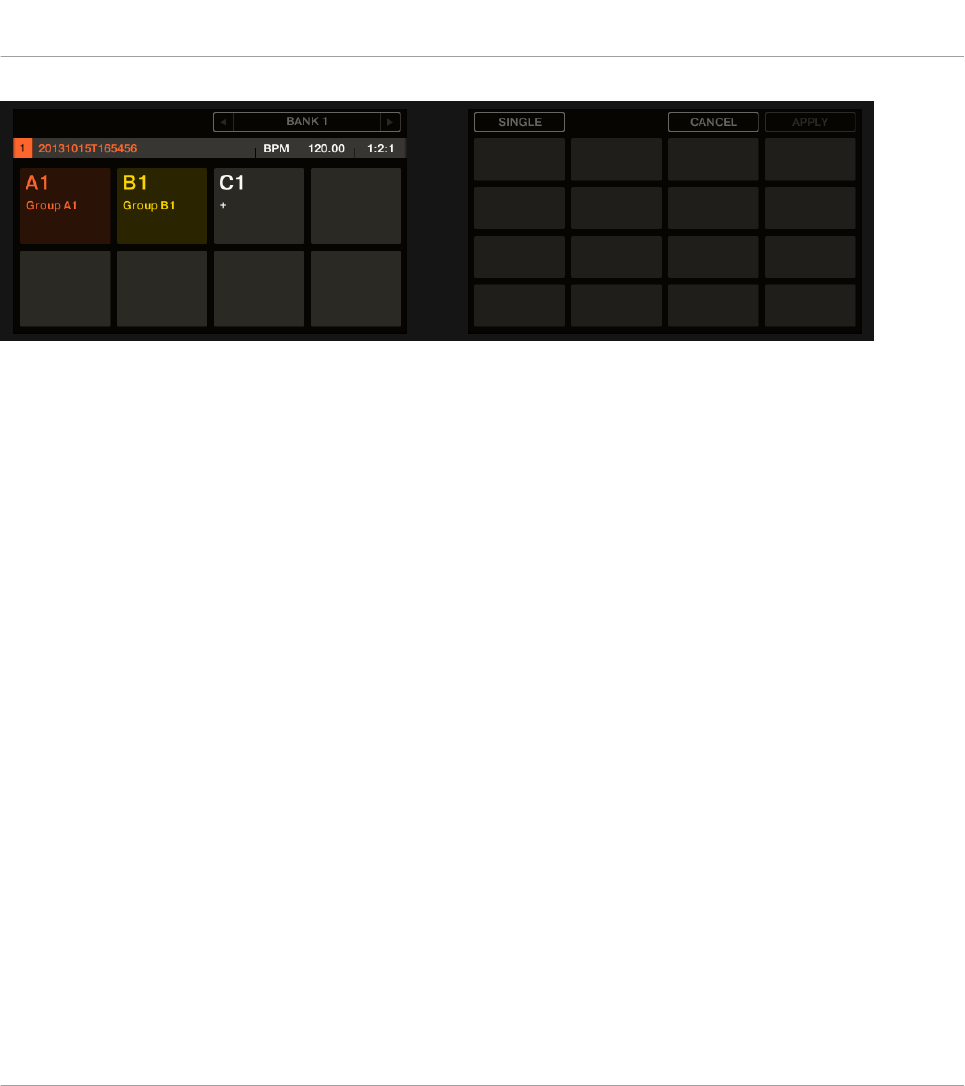

Selecting a target for the exported Slices.

In this Selection mode, you can choose to export the Slices to a Sound or to a Group.

To export the Slices to a Sound:

1. Select the Group containing the target Sound by pressing its Group button A–H. If your

Project has more than eight Groups, you can use Button 3 and 4 to first select the desired

Group bank.

The selected Group button starts flashing and the corresponding Group is highlighted on

the left display. In addition the pads now represent the Sound slots of that Group.

2. Select the target Sound by pressing its pad.

The Group button stops flashing, the selected pad starts flashing to indicate that it is now

the target, and the corresponding Sound slot is highlighted on the right display.

Press Button 8 (APPLY) to export the Slices.

→

The Slices will be mapped to individual notes of the selected Sound, starting with the

bottom C (C-2 in MASCHINE convention). The base key of the Sound will be set to the

bottom C as well (see section ↑5.1.3, Adjusting the Base Key for more information on the

base key). Any previous content in the Sound will be replaced. Your controller will leave

Sample mode and return to Control mode. The pads will switch to Keyboard mode so that

you can directly play your Slices on the pads. Additionally, depending on the setting of

the Pattern Creation selector in the Slice page of the software, notes will be automatically

created for each Slice (see above for more information).

To export the Slices to a Group:

Sampling and Sample Mapping

Slicing a Sample

MASCHINE STUDIO - Manual - 677
