Parameter Description
KEY LO (Lowest Key) Sets the lowest note (key) of the focused Zone. Alternatively, you can drag
the left border of the Zone in the Map.
KEY HI (Highest Key) Set the highest note (key) of the focused Zone. Alternatively, you can drag
the right border of the Zone in the Map.
VEL LO (Lowest Velocity) Defines the lowest velocity of the focused Zone. Alternatively, you can drag
the lower border of the Zone in the Map.
VEL HI (Highest Velocity) Defines the highest velocity of the focused Zone. Alternatively, you can
drag the higher border of the Zone in the Map.
14.5.7.1 Editing Your Zones on Your Controller
At the bottom of the left display, the Zone settings allow you to adjust how each Zone should
be played back.

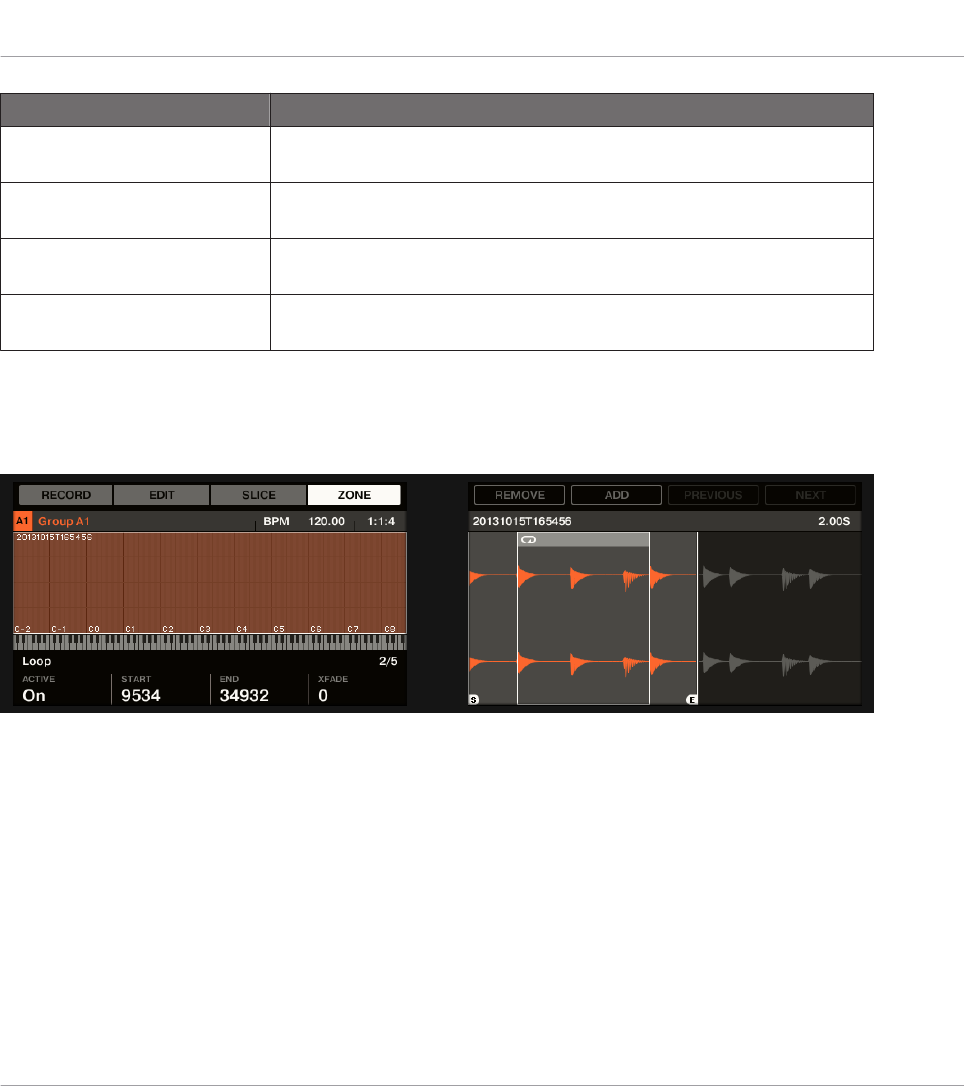

The Zone settings on the controller.
The various parameters always display the values for the focused Zone.
The parameters available in the Zone settings are spread over five pages.
►
Use the Page buttons on the left of the displays to select the desired page.
Page 1 – PLAY RANGE Parameters
The parameters in the PLAY RANGE page allow you to adjust the portion of Sample that will be
played back when the Zone is triggered.
