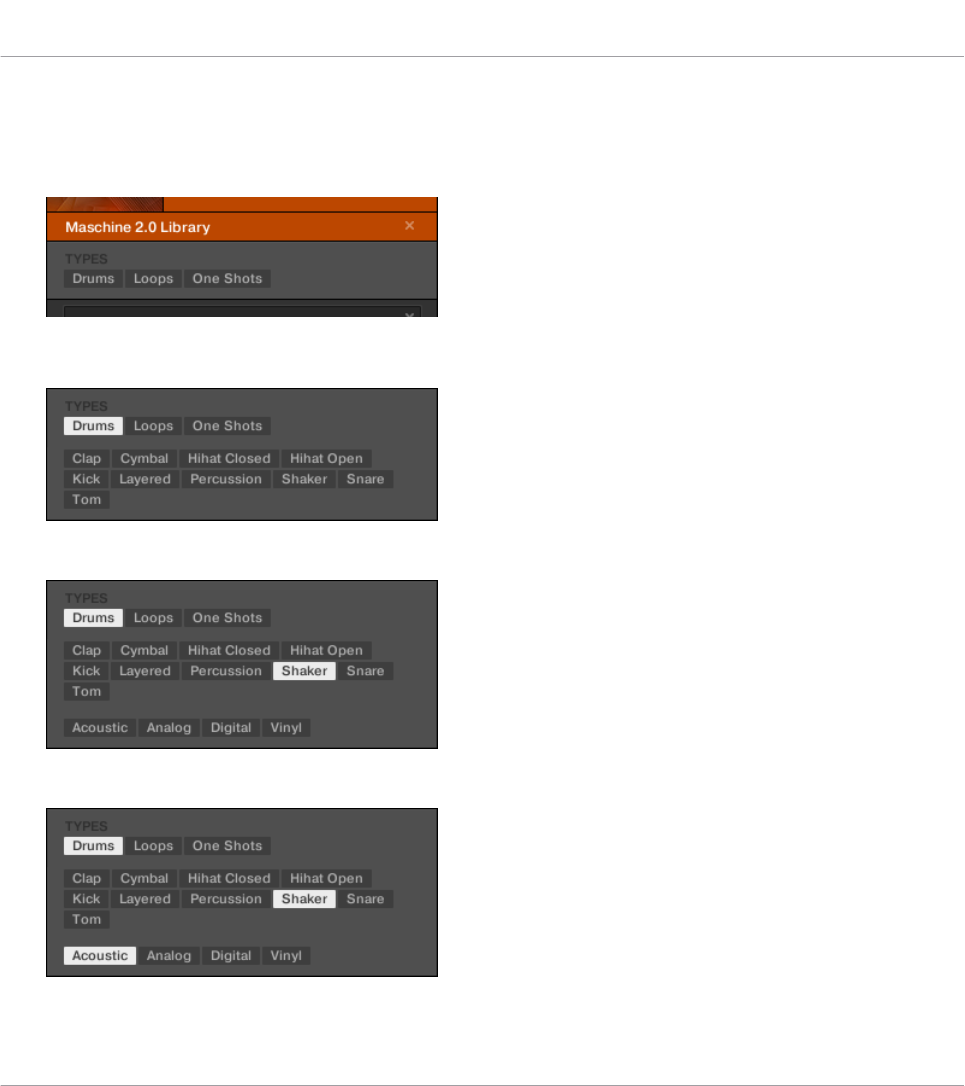

▪ You have already selected the Maschine product in the Product selector, and the Ma-
schine 2.0 Library bank of this product (for more information on this, see section ↑3.2.4,
Selecting a Product Category, a Product, a Bank, and a Sub-Bank). For now the TYPES
filter shows only top-level tags:
▪ In order to find a shaker, you first select the Drums Type from the TYPES filter.
Upon your selection the second level of tags appears underneath:
In this second level, you select the Shaker Sub-Type.
Now the third level appears with Sub-Types like Acoustic, Analog, etc.
By selecting any of these tags, say, Acoustic, you will narrow your search to this particular
Sub-Type of shakers:
