Ins-30017 CARDLOCK reader

18/07/2011

Technical Support

Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)

Saturday from 09:00 - 13:00 (GMT)

01273 811011 support@paxton.co.uk

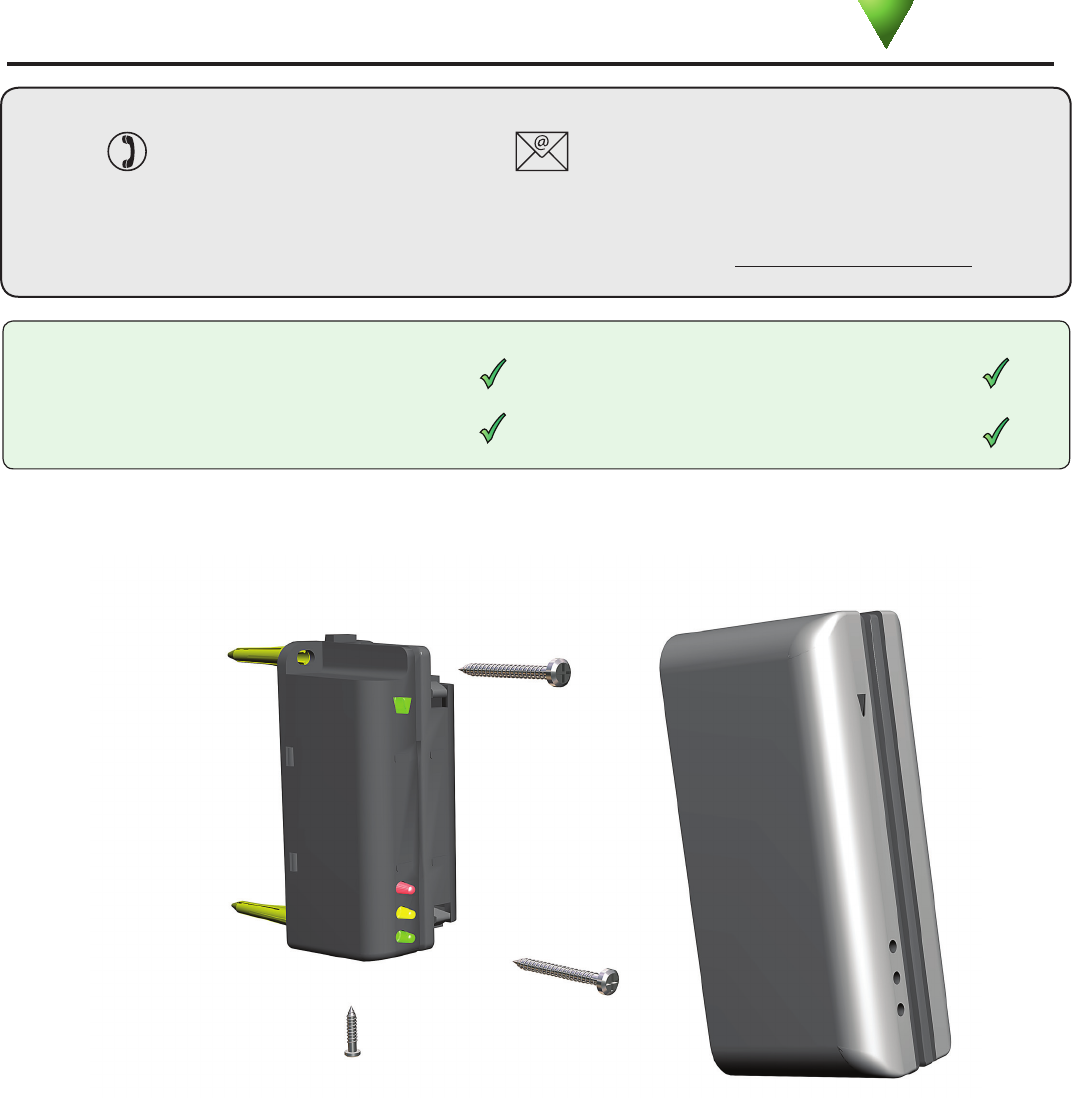

Fitting

Readers mounted together

Mounted on metal surface

Suitability

Security-sensitive doors

Wet environments

Cable extensions

Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 metres.

Reader covers

A black plastic or satin chrome cover comes supplied with the reader.

Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

Paxton

Summary of content (4 pages)

PAGE 1
8/07/2011 Paxton Ins-30017 CARDLOCK reader Technical Support 01273 811011 Technical help is available: support@paxton.co.uk Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ Suitability Security-sensitive doors Mounted on metal surface Wet environments Readers mounted together Fitting Reader covers A black plastic or satin chrome cover comes supplied with the reader.
PAGE 2
Wiring Connection to a control unit reader port WHITE labelled control units provide 5V at the Red terminal. The Red power wire for the reader should therefore be directly connected to the 12V supply terminal. Connection modules Reader junction box (325-020) This module can be used to provide a connection point for the reader RJ45 plug. The terminals on the module are then wired colour for colour to the controller.
PAGE 3
Technical Help Here is the list of topics about this product that receive the most technical support enquiries. We list them here to help you speed up the installation and trouble shooting process. 1 - Readers/Keypads not working. Q- Software settings - Confirm that the settings of the reader or keypad are correct. Q- Connections - Check the wiring and integrity of the connectors. If possible, test this reader on the other port.
PAGE 4
Specifications Min Max Voltage 8V DC 14V DC Current 50 mA 90 mA Electrical 600 µs Clock and data bit period 5 metres Max Cable length System Specification Min Magnetic stripe coercivity Media speed Max 300 Oe 4000 Oe 125 mm/s 1250 mm/s 500 mm/s2 Media acceleration Reader head life Swipes 1,000,000 Environment Operating temperature Waterproof Min Max -20 °C + 55 °C Outdoor Use IPX7 Dimensions Width Height Depth 34 mm 89 mm 34 mm Contents in box CARDLOCK reader Satin Chrom
