Octet Locations
B.2
—
IOLINK-520 & IOLINK-PRO000 Installation & Applications Guide

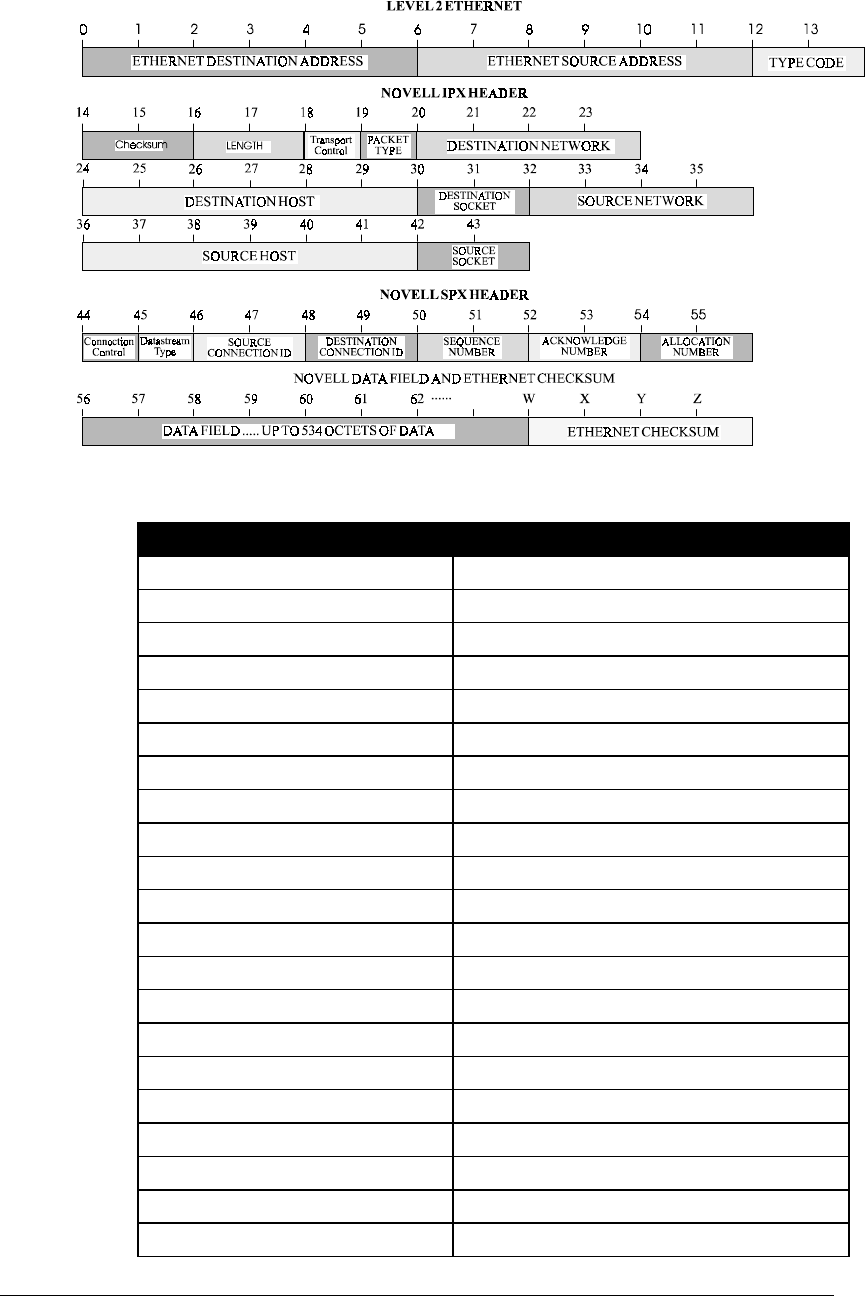

Octet Locations on a Bridged Novell Netware Frame
ETHERNET Type Codes
Type Code Description
0800 DOD IP
0801 X.75 Internet
0804 Chaosnet
0805 X.25 Level 3
0806 ARP
0807 XNS Compatibility
6001 DEC MOP Dump/Load
6002 DEC MOP Remote Console
6003 DEC DECNET Phase IV Route
6004 DEC LAT
6005 DEC Diagnostic Protocol
6006 DEC Customer Protocol
6007 DEC LAVC, SCA
8035 Reverse ARP
803D DEC Ethernet Encryption
803F DEC LAN Traffic Monitor
809B Appletalk
80D5 IBM SNA Service on Ether
80F3 AppleTalk AARP (Kinetics)
8137-8138 Novell, Inc.
814C SNMP
