Interface Pinouts
IOLINK-520 & IOLINK-PRO Installation & Applications Guide —
D.3
Console Pinouts
The connector shown here and pinouts described here correspond to the connector labeled
“Console” on the back of the IOLINK-520 & IOLINK-PRO.
DB25 Female DCE
13
1
25
14
Contact
Number
CCITT
Circuit
Number
IEEE
Circuit
Desig.
Circuit
Name
Direction
To From
DCE DCE
1 101 AA Protective Ground NA
2 103 BA Transmitted Data X
3 104 BB Received Data X
5 106 CB Clear to Send X
6 107 CC Data Set Ready X
7 102 AB Signal Ground NA
8 109 CF Received Line Signal Detector (CD) X
20 108.2 CD Data Terminal Ready X
22 125 CE Ring Indicator X

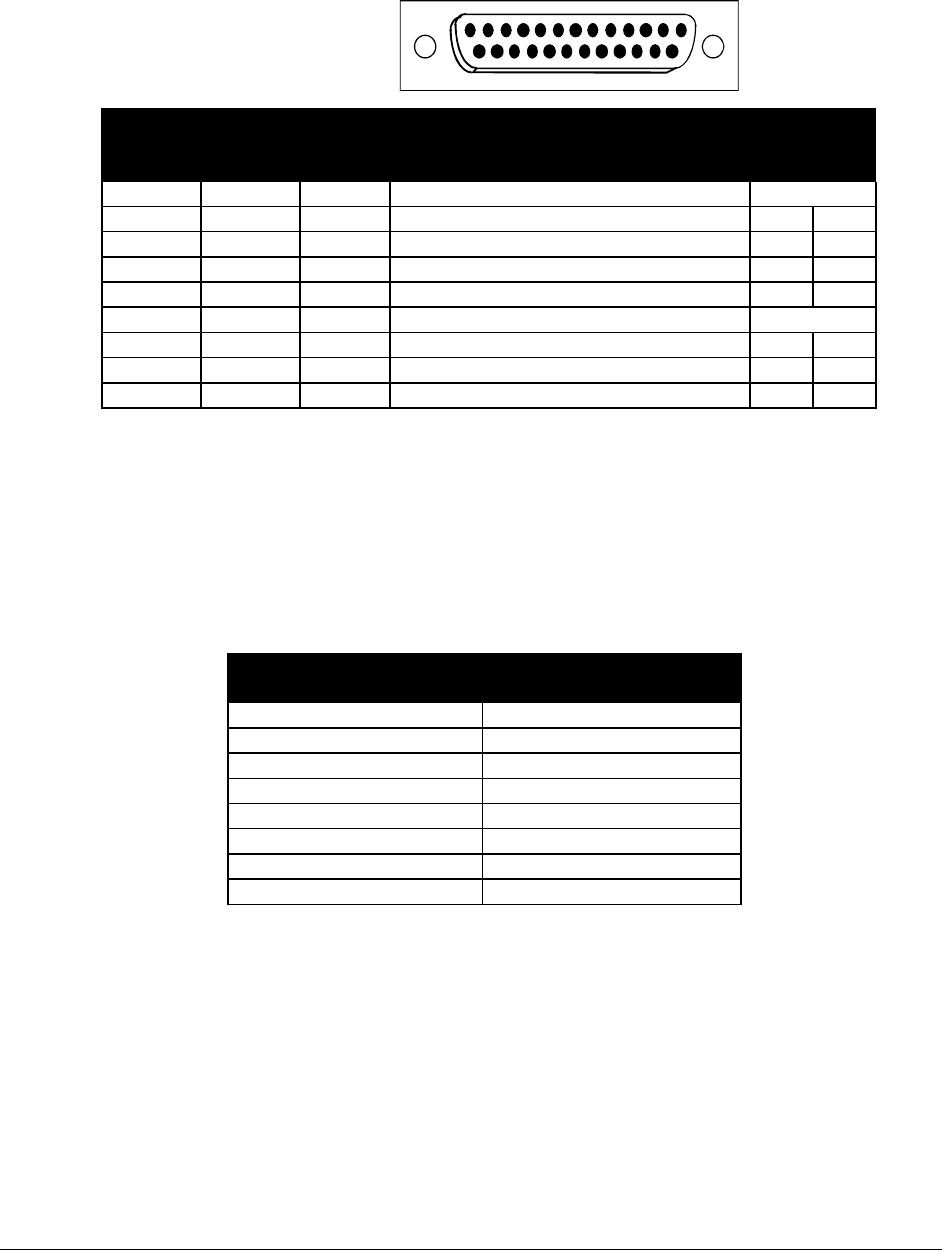

Figure D-3 Console Pinouts
The connecting cable must be a shielded cable.
When connecting the IOLINK router console directly to a modem, a null modem cable
must be used because both the IOLINK router console and the modem are DCE devices.
A null modem cable with pinouts according to the following figure must be used.
IOLINK router Contact
Number
Modem Contact Number
820
32
23
20 8
77
45
54
22 22
Figure D-4 Console Null Modem Cable Pinouts
