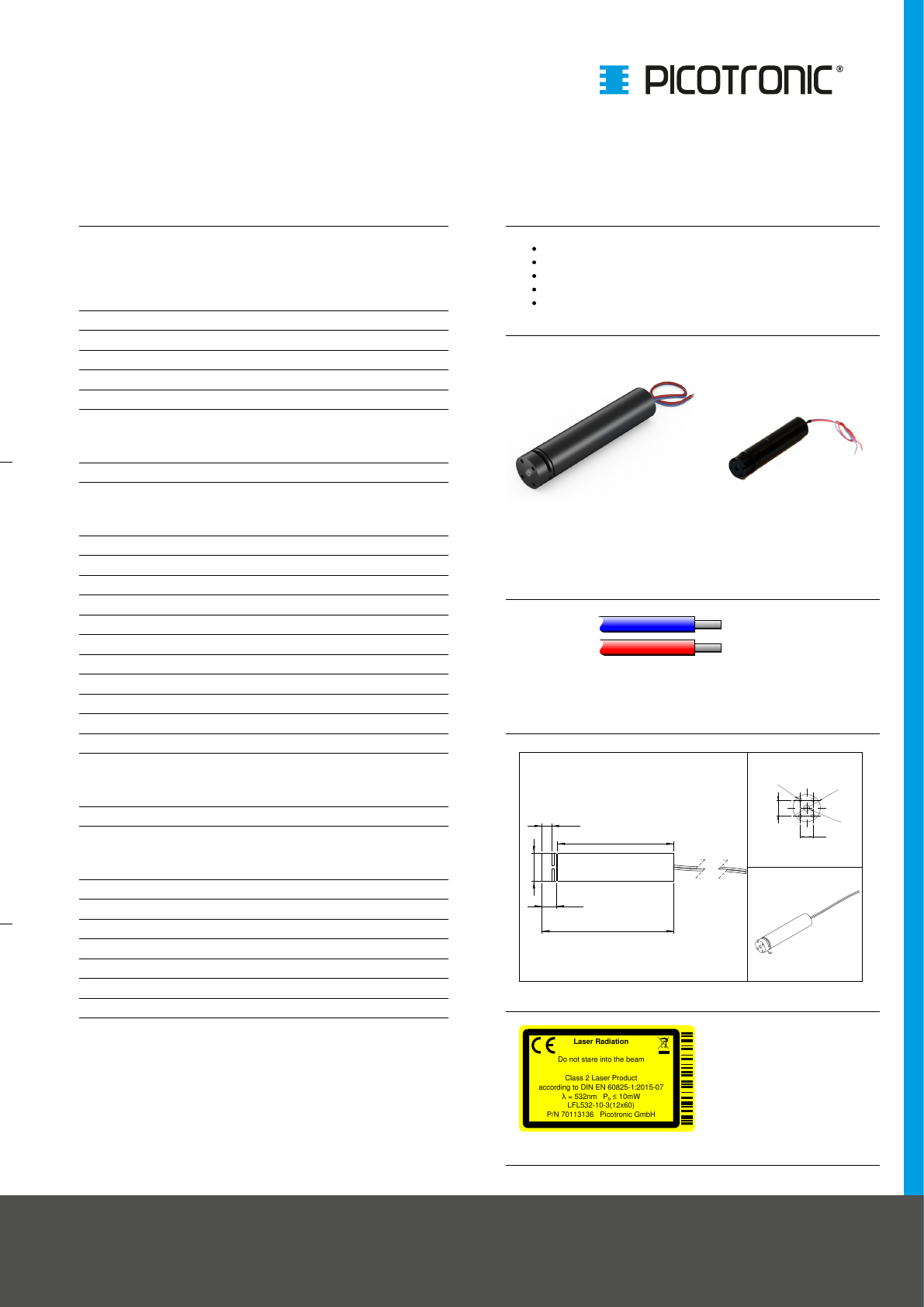

Line laser, green, 532nm, 90°, 10mW
LFL532-10-3(12x60)
Order Number: 70113136
Drawing
Ø
12
4,2
6,3
57,7
50,9
Ø
12
Ø
2,7
Ø
1,6
4x
5,6
7
Cable Colors
Ground blue GND
Positive red 2.7 - 3.3, typ 3V DC
Main Parameters (*) min typ max Unit
Wavelength 532 nm
Optical Output Power 10 mW
Operating Voltage 2.7 3 3.3 V DC
Operating Current 100 210 375 mA
Operating Temperature 15 30 °C
Storage Temperature -40 80 °C
Technical Parameters
Lifetime >5000h
RoHS yes
Optical Parameters
Beam Shape Line
Laser Class 2
Divergence D - 0.5mrad
Fan Angle 90°
Line Thickness <2mm@3m
Operating Distance 5m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology Solid State (YVO4+KTP)
Stability +/- 10% @ 15-30°C
Focus fixed (3000mm)
Warm up time <15min
Electrical Parameters
Potential of Housing isolated
Power Supply LFNT-3
Mechanical Parameters
Size Ø12x60mm
Material aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Output Aperture 3mm
Housing Color black
Weight 24g
Stripping of wire 5mm
(*) Over the complete operating temperature range
Operating Voltage 3V DC
Image processing
Compact size
Laser Class 2
Uniform line thickness
Features
Safety Label
Laser Radiation
Do not stare into the beam
Class 2 Laser Product
according to DIN EN 60825-1:2015-07
λ = 532nm P₀ ≤ 10mW
LFL532-10-3(12x60)
P/N 70113136 Picotronic GmbH
Powered by TCPDF (www.tcpdf.org)
Revision
REV 8 | 22-JAN-2016
