User`s manual

10

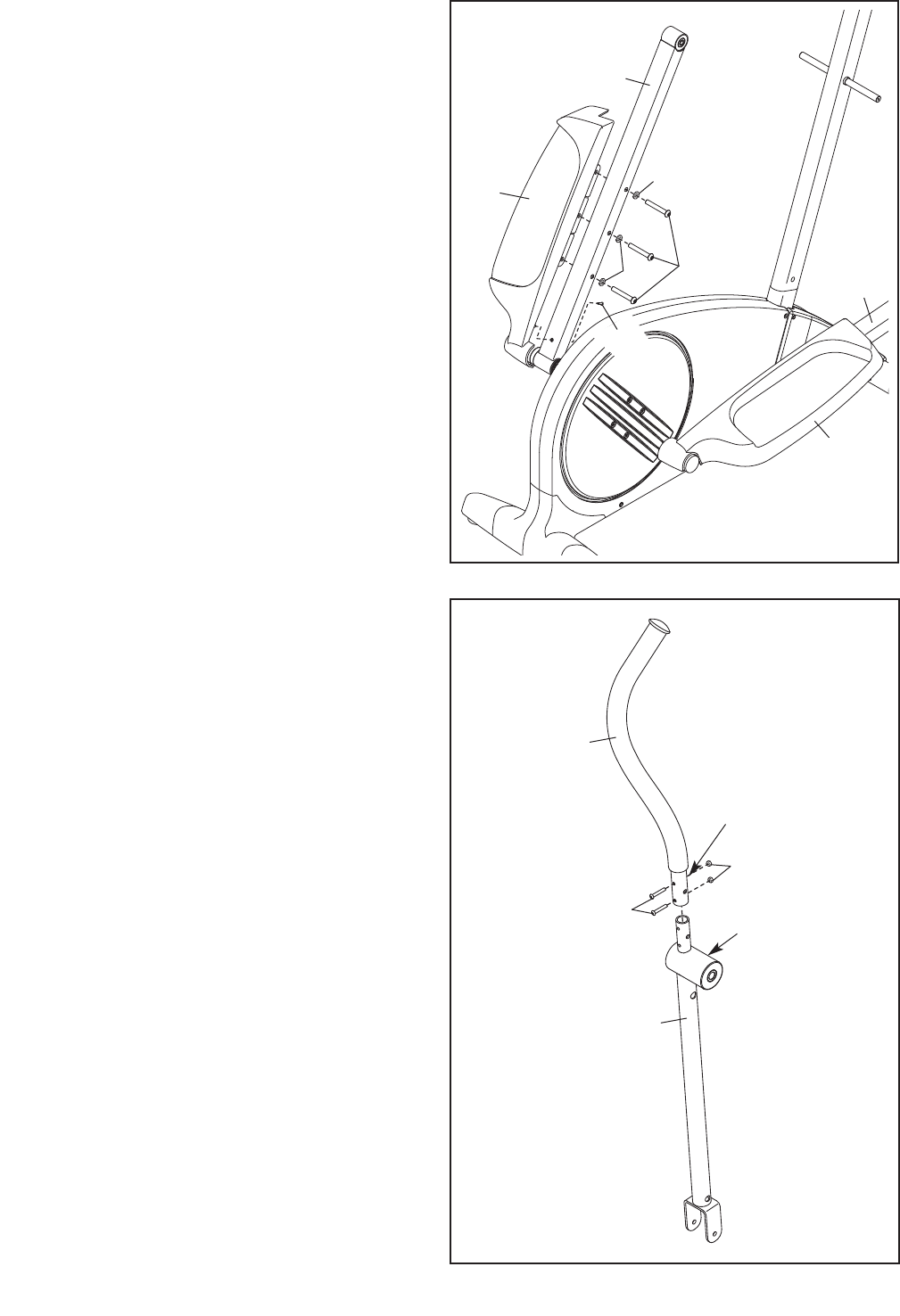

11. Identify the Left Upper Body Arm (8), which is
marked with a “Left” sticker.
Orient the Left Upper Body Arm (8) and an
Upper Body Leg (6) as shown. Make sure that
the hexagonal holes and the wide side of the
Upper Body Leg are in the indicated loca-
tions.
Slide the Left Upper Body Arm (8) onto the
Upper Body Leg (6).
Attach the Left Upper Body Arm (8) with two M6
x 36mm Button Bolts (76) and two M6 Locknuts
(77). Make sure that the Locknuts are inside
the hexagonal holes.
Repeat this step for the Right Upper Body
Arm (not shown) and the other Upper Body
Leg (not shown).
11
8
77
76
Hexagonal
Holes
Wide Side
6
1
0. Identify the Left Pedal (12), which is marked
with a “Left” sticker, and orient it as shown.
Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Button Screws
(75), three M10 Split Washers (78), and an M4
x
16mm Screw (94).
Repeat this step for the Right Pedal (13) and
the right Pedal Arm (14).
1
0
14
14
75
78
7
8
12
13
94
