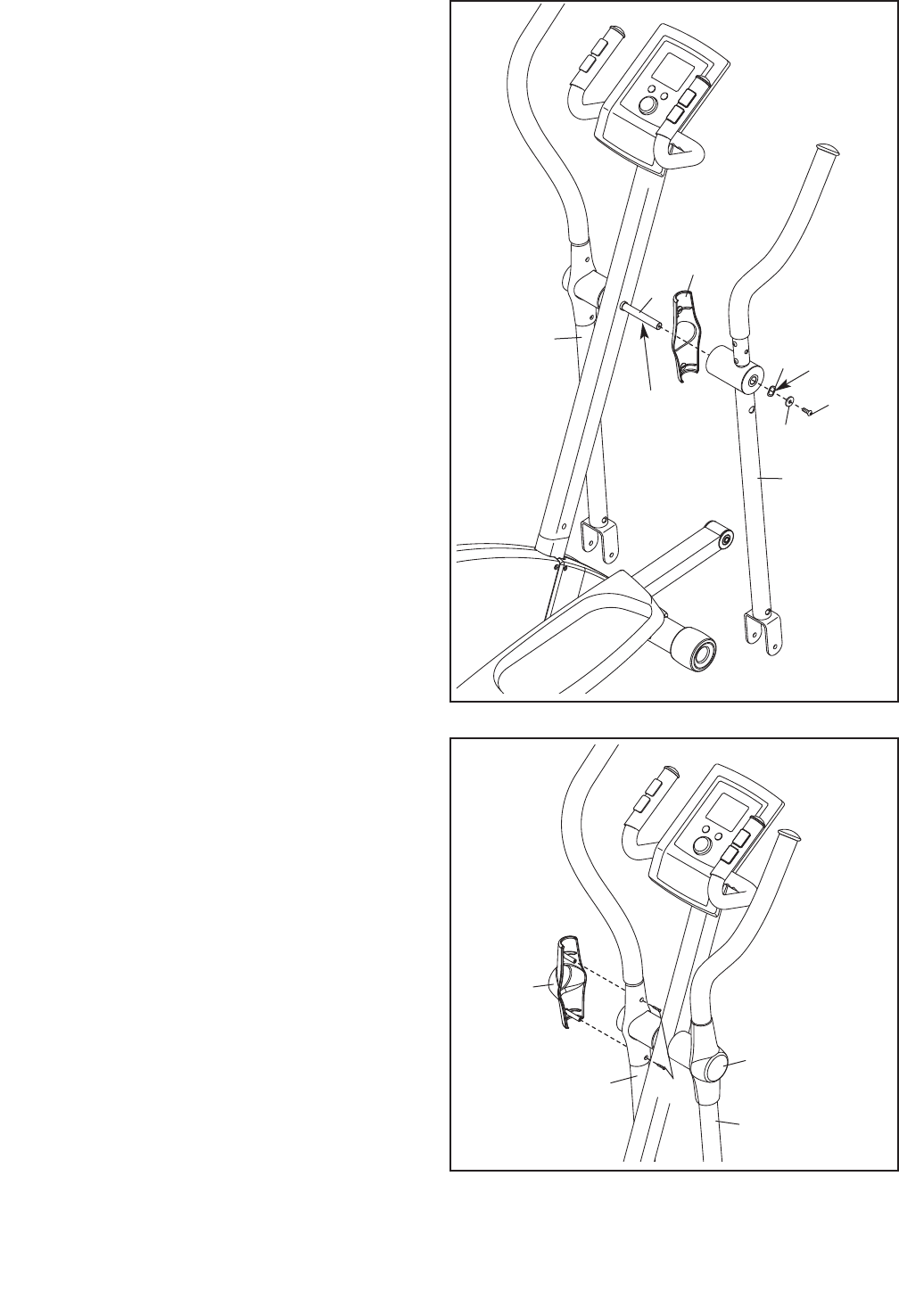

12. Apply a generous amount of the included
grease to the axles on the Upright (2). Then,
apply a small amount of grease to two Wave
Washers (88).
Orient an Inner Arm Cover (22) and the right
Upper Body Leg (6) as shown.
Slide the Inner Arm Cover (22) and the right
Upper Body Leg (6) onto the right side of the
Upright (2).
Slide a Wave Washer (88) onto the axle on the
right side of the Upright (2).
Attach the right Upper Body Leg (6) with an M6
x 16mm Patch Screw (80) and an M6 Washer
(35). Make sure that the Wave Washer (88) is
on the axle.
Attach the left Upper Body Leg (6) in the
same way.
1
2
6
22
88
6
35
80
2
Grease
Grease
13. Attach an Outer Arm Cover (20) around the left
Upper Body Leg (6) with two M4 x 16mm
Screws (94).
Attach the other Outer Arm Cover (20)
around the right Upper Body Leg (6) in the
same way.
13
6
6
20
20
94
