7. The Console (4) can use four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, insert the batteries into the battery com-
partment, and then reattach the battery cover.
Make sure to orient the batteries as shown
by the diagram inside the battery compart-
ment.
7
4
Batteries
Cover
Screw

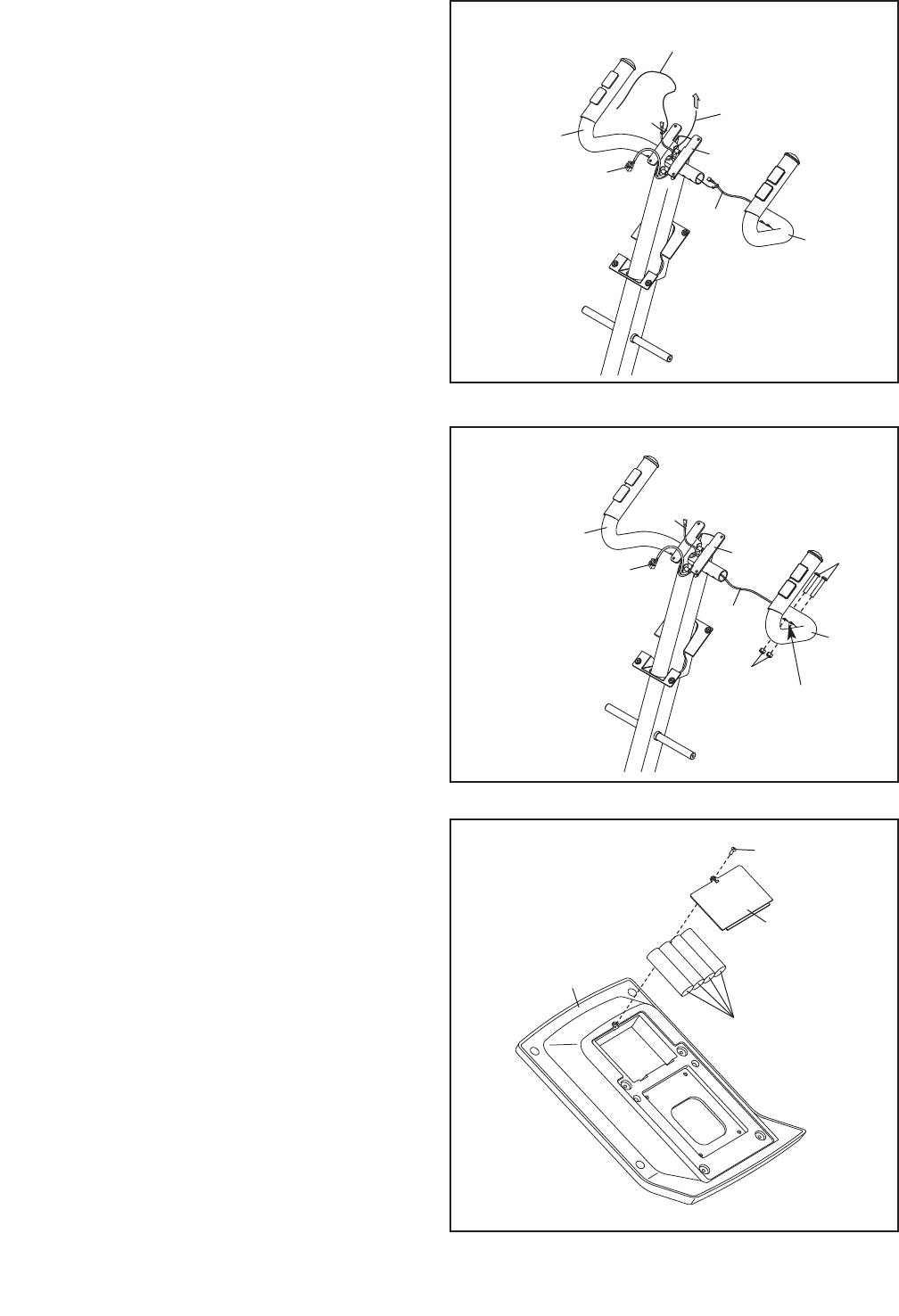

5. Identify the Left and Right Pulse Bars (5, 16),
which are marked with “Left” and “Right” stick-
ers.
Have another person hold the Right Pulse Bar
(
16) near the Console Bracket (3).
Locate the wire tie in the Console Bracket (3).
Tie the lower end of the wire tie to the right
Pulse Wire (37). Next, pull the upper end of the
wire tie upward out of the top of the Console
Bracket. Then, untie and discard the wire tie.
Repeat this step for the Left Pulse Bar (5).
5
16
5
3
37
37
86
Wire Tie
W
ire Tie
6
16
5
82
98
37
86
Hexagonal
Holes
6. Slide the Right Pulse Bar (16) onto the right
side of the Console Bracket (3). Make sure that
the hexagonal holes are in the indicated
location.
Tip: Avoid pinching the wires during this
step. Attach the Right Pulse Bar (16) to the
Console Bracket (3) with two M8 x 38mm
Button Bolts (98) and two M8 Locknuts (82).
Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Pulse Bar (5).
3
37
Avoid
pinching
the wires
