FCD-IPM Installation and Operation Manual Chapter 5 Setup Menu
Interface Parameters Menu 5-53
E1 TIME SLOTS MAPPING: LINK1 (Device name – FCD-IPM)
---------------------
TS1 [DATA LINK1 ] TS17 [NC ]
TS2 [FIX SUB-VOICE] TS18 [NC ]
TS3 [FIX SUB-DATA ] TS19 [NC ]
TS4 [I/O1 VOICE 1 ] TS20 [NC ]
TS5 [I/O1 VOICE 2 ] TS21 [NC ]
TS6 [NC ] TS22 [NC ]
TS7 [NC ] TS23 [NC ]
TS8 [NC ] TS24 [NC ]
TS9 [NC ] TS25 [NC ]
TS10 [I/O2 CHANNEL ] TS26 [NC ]
TS11 [NC ] TS27 [NC ]
TS12 [NC ] TS28 [NC ]
TS13 [NC ] TS29 [NC ]
TS14 [NC ] TS30 [NC ]
TS15 [NC ] TS31 [NC ]
TS16 [NC ]
Enter time slot number (0 refer to all time slots)
Press ‘ENTER’ – to toggle the time slot type
Press ‘ESC’ - to Return to previous menu
Time slot number: 5

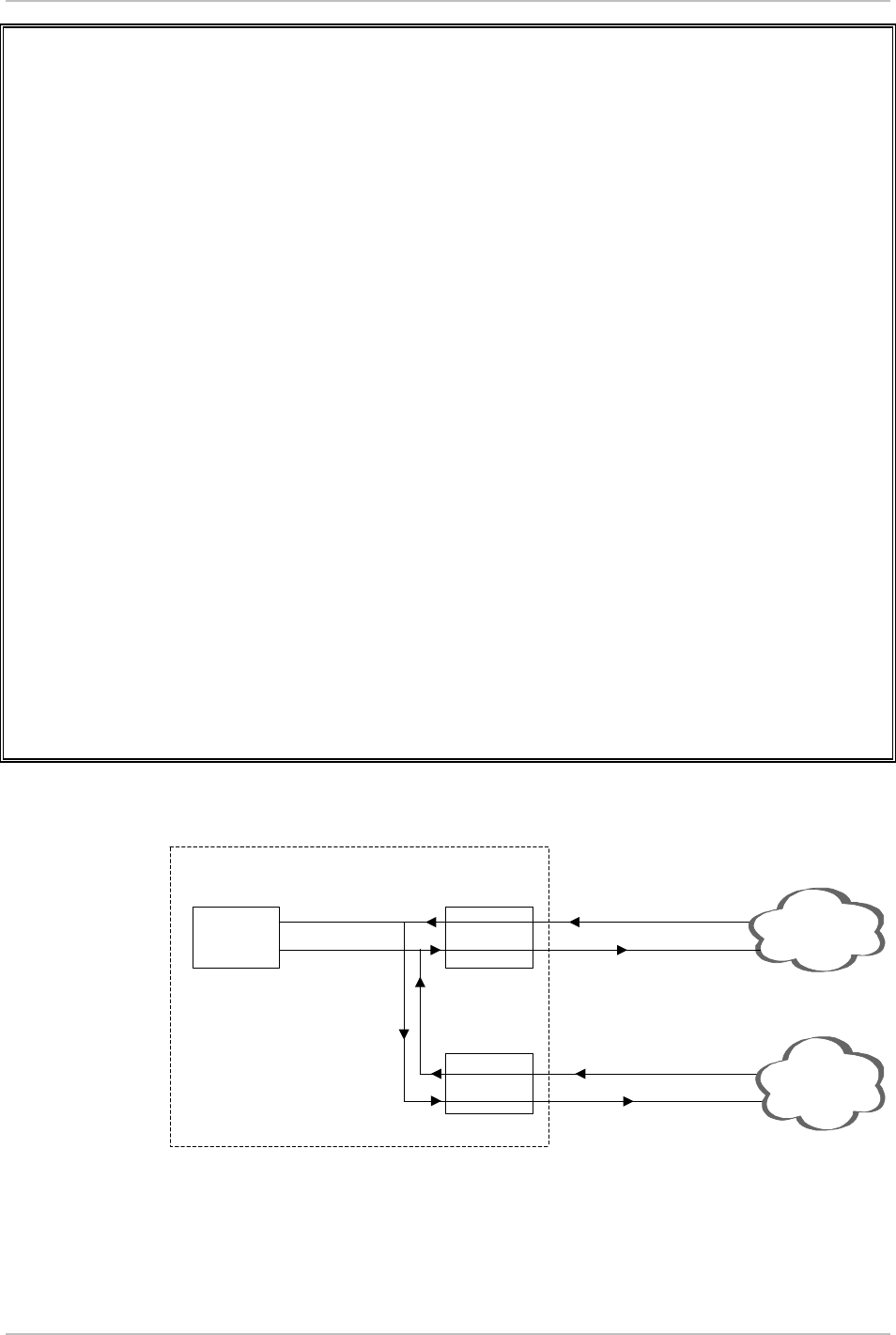

Figure 5-57. E1 Time Slots Mapping Screen
Link1
FCD-IPM (with Sub Link)
Router/Bridge
Sub Link
E1
Service
DATA
DATA/DATA_SUB/VOICE
E1 Service
or PABX
DATA_SUB/VOICE
Figure 5-58. Time Slots Mapping (for FCD-IPM with an E1 Sublink)
