Chapter 4 Configuration FCD-IPM Installation and Operation Manual
4-18 Security Setup Menu
FIREWALL RULES ( Device name - FCD-IPM )
--------------
Interface Direction
OPTIONS: A-Add
Press one of the above or ESC to return to previous screen:
Select interface: [LINK 1 ]
Enter start source IP address: 000.000.000.000
Enter end source IP address : 222.222.222.222
Enter start destination IP address :
Enter end destination IP address :
Select application type: [Telnet ]

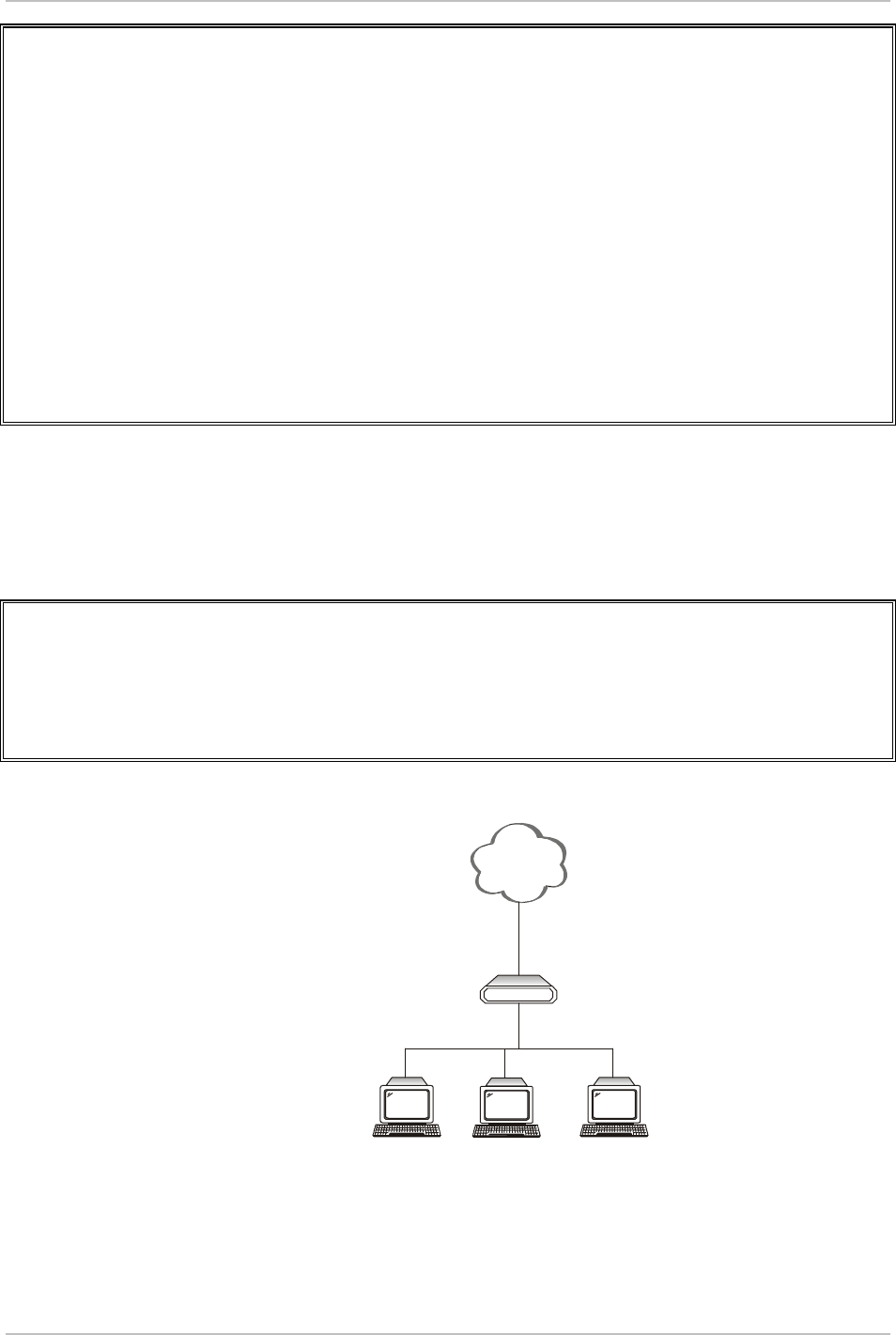

Figure 4-10. Firewall Rules Menu
IP Address Translation (NAT)
IP Address Translation allows a NET that uses a private IP Address to connect to
the Public Internet/Intranet (Single IP is one of the IP Address Translation types).
IP ADDRESS TRANSLATION (Device name – FCD-IPM)
----------------------
Type Interface Status Range
OPTIONS: A-Add
Press one of the above or ESC to return to previous screen:
Figure 4-11. IP Address Translation Menu
PC#1
PC#2
PC#n
Pubic Internet/
Intranet
"Real IP Addresses"
"Virtual IP Addresses"
FCD-IPM
...
Figure 4-12. IP Address Translation
