Installation Instructions

PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar

Insulator Installation

Catalog Numbers

20B, 20D

Before You Begin

These instructions apply only to frame 5 PowerFlex® 700 and PowerFlex 700S

AC drives. You can verify your drive frame size by checking the data nameplate on

the side of the drive.

ATTENTION: Allow only qualified personnel, familiar with AC drives and

associated machinery, to plan or implement the installation, start-up and

subsequent maintenance of the system. Failure to comply can result in personal

injury and/or equipment damage.

ATTENTION: This drive contains Electrostatic Discharge (ESD) sensitive parts

and assemblies. Static control precautions are required when you install, test,

service, or repair this assembly. If ESD control procedures are not followed,

component damage can result. If you are not familiar with static control

procedures, see the Guarding Against Electrostatic Damage, publication 8000-

4.5.2 or any other applicable ESD protection handbook.

IMPORTANT

The drive catalog number, 20B in this example, identifies a PowerFlex 700

drive. Verify that the serial number on your drive data nameplate matches a

serial number that is identified in the Product Safety Advisory (PSA)

#2014-06-003.

Cat No. 20B D xxx x x xxxxxxx

Made in the USA (TAC 1J)

Rockwell Automation, Mequon WI 53092-4400

UL TYPE 1/IP20

Mfd. in 2007 on Aug 1

Frame: 5

Series: B

I/O: 24VAC/DC (Standard)

Original Firmware V. x.xxx

Listed

Ind. Cont

Eq. 966X

Normal Duty Power

Heavy Duty Power

AC Voltage Range

Amps

Input: 3 Phase, 47-63Hz

Output: 3 Phase, 0-400 Hz

AC Voltage Range

Base Hz (default)

Continuous Amps

1 Min Overload Amps

3 Sec Overload Amps

xxx kW

342-440

xxx

0-400

50 Hz

xxx

xxx kW

432-528

xxx

400V 480V

0-460

60 Hz

xxx

N223

Serial Number: xxxxxxx

Drive Frame Size

Drive Serial Number

Summary of content (8 pages)

PAGE 1

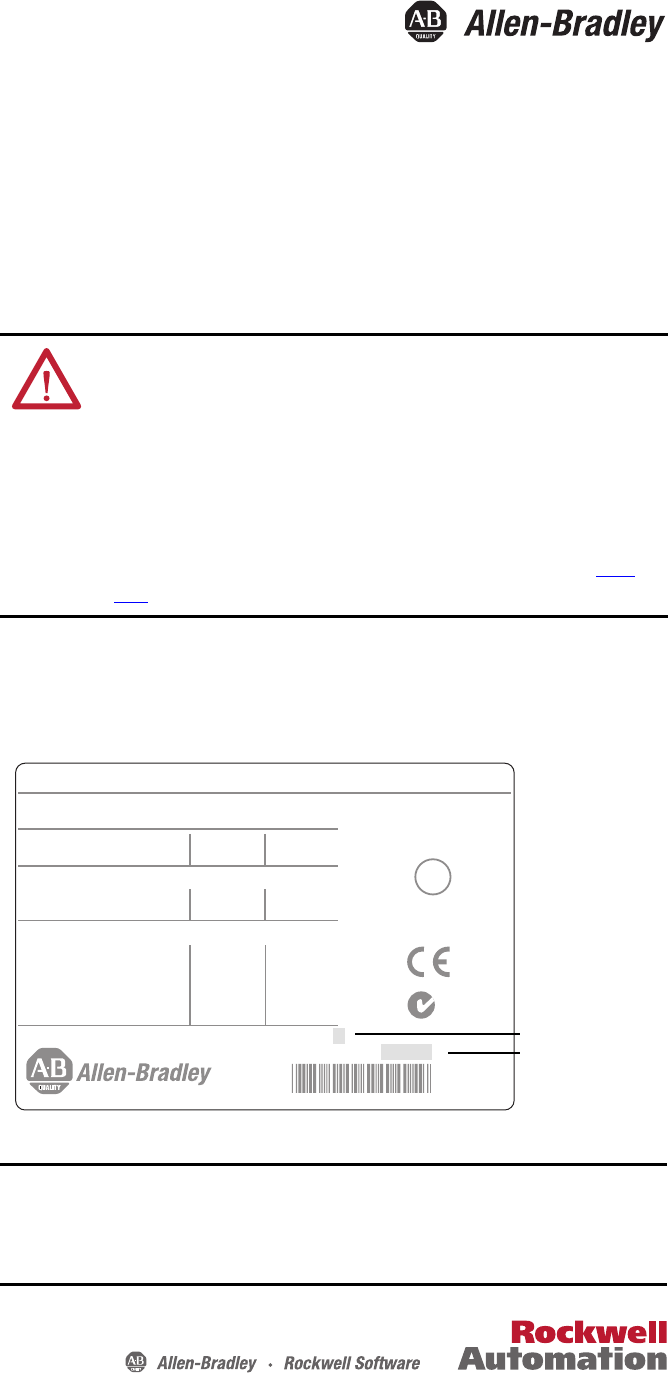

Installation Instructions PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation Catalog Numbers 20B, 20D ATTENTION: Allow only qualified personnel, familiar with AC drives and associated machinery, to plan or implement the installation, start-up and subsequent maintenance of the system. Failure to comply can result in personal injury and/or equipment damage. ATTENTION: This drive contains Electrostatic Discharge (ESD) sensitive parts and assemblies.
PAGE 2
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation What This Kit Contains One piece of Tyco Electronics heat shrink tube (1.5…2.0 in.), part number RNF-3/4-1-BK-STK. Note: If this part is lost or damaged, it is acceptable to use another 1.5…2.0 in. piece of UL Listed equivalent heat shrink tube in its place. Recommended Tools The following list of tools is provided for your reference to disassemble and reassemble the drive and components.
PAGE 3
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation Remove the Protective Covers 1. Locate the slot in the upper left corner of the drive cover and slide up the locking tab. 2. Loosen the hexalobular screw on the right side of the drive and remove the cover. CAUTION HOT surfaces can cause severe burns 3. Remove the three hexalobular screws that secure the clear-plastic protective cover to the chassis and remove the cover.
PAGE 4
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation Install the Shrink Wrap Insulator Tube on the Bus Bar 1. Remove the hexalobular screw that secures the cable to the lower brake bus bar and remove the screw. 1 2. Open the cable tie that secures the bus bars to the chassis. 3. Slide the shrink wrap tube over the end of the bus bar and leave the fastener hole exposed.
PAGE 5
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation 4. Secure the lower brake bus bar to the cable by using the existing hardware. Tightening torque is 1.69 N•m (15 lb•in). 5. Slide the shrink wrap tube over cable and bus bar connection. IMPORTANT The tube must overlap the existing bus bar insulation by a minimum of 0.5 inches so that the tube covers all exposed conductor surfaces.
PAGE 6
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation 6. If necessary, to make reinstallation of the cable tie easier, remove the hexalobular screw that secures the MOV to the chassis and remove the MOV. 6 7. Secure the bus bars to the chassis by closing the cable tie. Note: It is acceptable that the cable tie partially secures the shrink wrap tube in place.
PAGE 7
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation 8. If necessary, reinstall the MOV on the drive chassis by using the existing hardware. Tightening torque is 3.16 N•m (28 lb•in). 9. Shrink the tube over the cable and bus bar connection by using a heat gun. Note: The tube does not need to conform fully to the bus bar and/or cable, but must not be able to move after shrinking. 9 Install the Protective Covers Install the protective covers in the reverse order of removal. See.
PAGE 8
Rockwell Automation Support Rockwell Automation provides technical information on the Web to assist you in using its products. At http://www.rockwellautomation.com/support you can find technical and application notes, sample code, and links to software service packs. You can also visit our Support Center at https://rockwellautomation.custhelp.com/ for software updates, support chats and forums, technical information, FAQs, and to sign up for product notification updates.
