Connecting the Projector to Other Devices
Connecting to Video Equipment
Connecting to Video
Equipment Using an
S-video, a Composite
Video or an Audio Cable
Using an S-video, video, or audio cable, a VCR,
laser disc player or other audio-visual equip-
ment can be connected to INPUT 2, INPUT 3
and AUDIO input terminals.
1 Connect the projector to the
video equipment using an S-
video cable or a composite video
cable (both commercially avail-
able).
2 Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
Note
• The INPUT 2 (S-VIDEO) terminal uses a video
signal system in which the picture is sepa-
rated into color and luminance signals to re-
alize a higher-quality image. To view a higher-
quality image, use a commercially available
S-video cable to connect the INPUT 2 termi-
nal on the projector and the S-video output
terminal on the video equipment.
•
A ø3.5 mm minijack to RCA audio cable (com-
mercially available) is required for audio input.

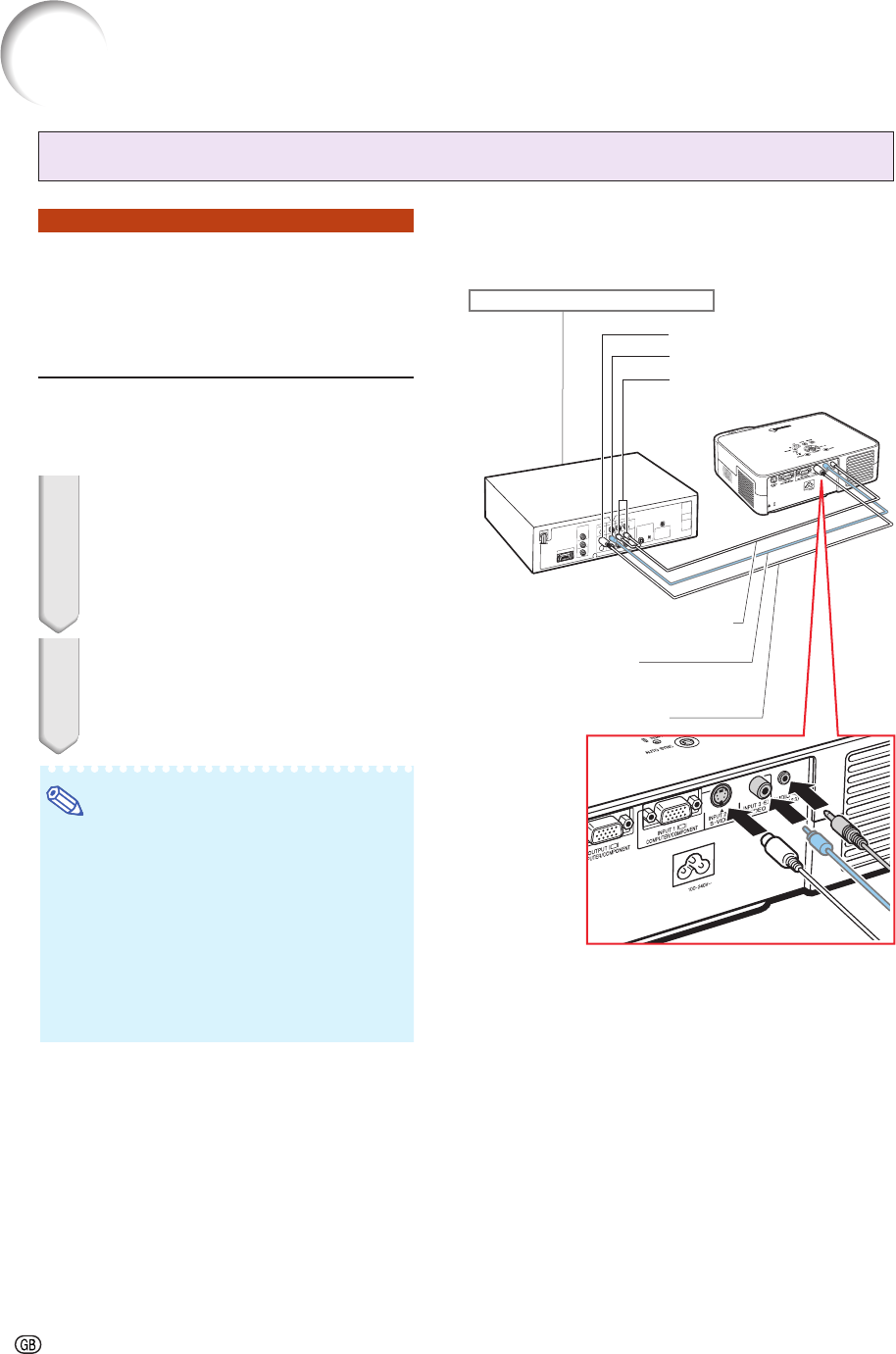

To S-video output terminal
To video output terminal
To audio output terminal
VCR or other audio-visual equipment
1
S-video cable
(commercially available)
1
Composite video cable
(commercially available)
2
ø3.5 mm minijack to RCA audio cable
(commercially available)
