Connecting to a
Computer Using a DIN-D-
sub RS-232C Adaptor
and an RS-232C Serial
Control Cable
When the RS-232C terminal on the projector
is connected to a computer with a DIN-D-sub
RS-232C adaptor (sold separately) and an RS-
232C serial control cable (cross type, sold
separately), the computer can be used to con-
trol the projector and check the status of the
projector. See page 69 for details.

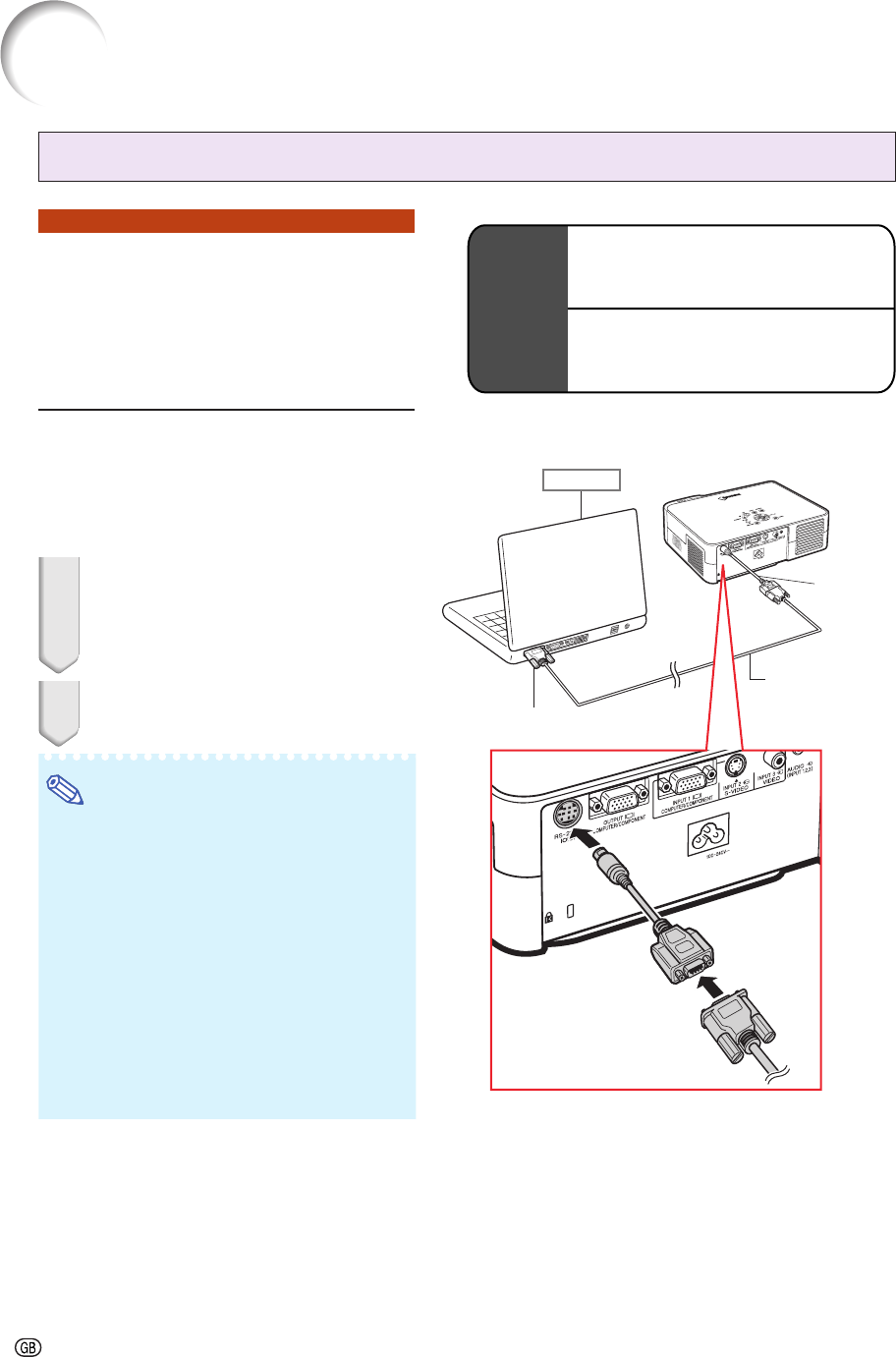

1 Connect a DIN-D-sub RS-232C
adaptor (sold separately) to an
RS-232C serial control cable
(sold separately).
2 Use the above cables to connect
the projector and the computer.
Note
• Do not connect the RS-232C cable to a port
other than the RS-232C terminal on the com-
puter. This may damage your computer or
projector.
• Do not connect or disconnect an RS-232C
serial control cable to or from the computer
while it is on. This may damage your com-
puter.
• The RS-232C function may not operate if
your computer terminal is not correctly set
up. Refer to the operation manual of the
computer for details.
• See page 68 for connection of an RS-232C
serial control cable.
RS-232C serial control cable
AN-C10RS
(32'10" (10.0 m))
To RS-232C terminal
DIN-D-sub RS-232C adaptor
AN-A1RS
(5
57
/
64
" (15 cm))
Computer
RS-232C serial
control cable
(sold separately)
DIN-D-sub
RS-232C
adaptor
(sold
separately)
Controlling the Projector Using a Computer
Optional
cables
Connecting the Projector to Other Devices
