SMC7904BRA3 User Manual
2 Hardware Installation
1. Refer to the figure below: Connect the DSL port of the device and the ROUTER port of the splitter with
a telephone cable; connect the phone to the Phone port of the splitter through a cable; connect the incoming
line to the Line port of the splitter.
The splitter has three ports:
LINE: Connects to a wall phone jack (RJ-11 jack)
ROUTER: Connects to the DSL jack of the device
PHONE: Connects to a telephone set
2. Connect the LAN port of the device to the network card of the PC via an Ethernet line (MDI/MDIX).
Note: Use twisted-pair cables to connect with the HUB/Switch.
3. Plug the power adapter to the wall outlet and then connect the other end of it to the PWR port of the
device.

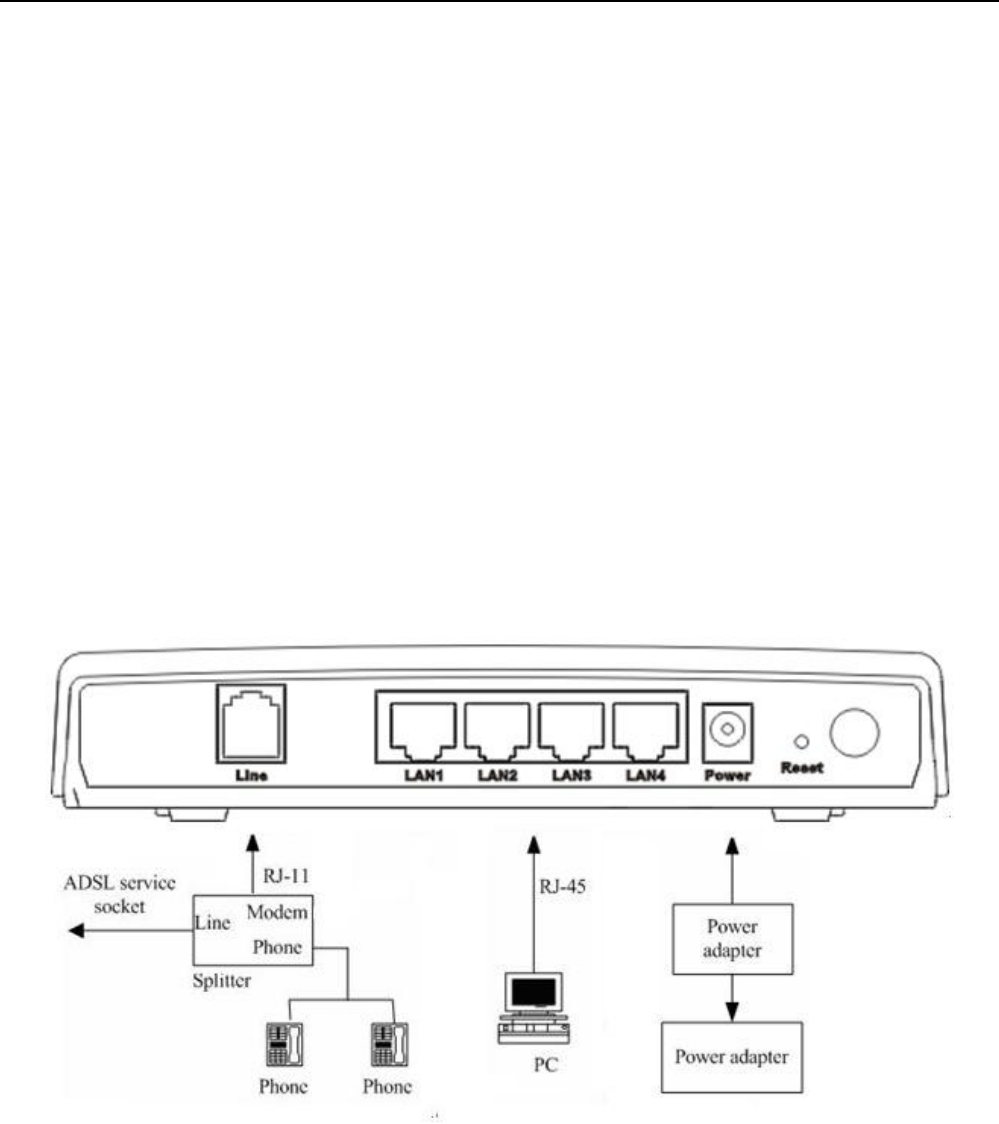

Connection 1: Fig. 2-1 displays the application diagram for the connection of the Router, PC, splitter and
telephone set.
Fig 2-1 Connection Diagram (Without connecting telephone sets before the splitter)
Connection 2: As illustrated in the following figure, the splitter is installed close to the device.
