SMC7904BRA3 User Manual

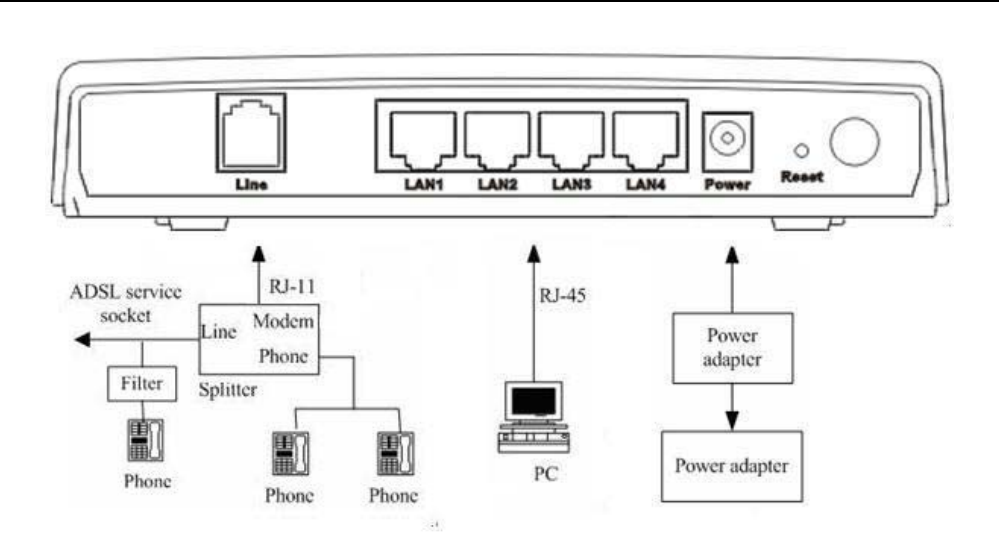

Fig 2-2 Connection Diagram (Connecting a telephone set before the splitter)
It is recommended to follow the Connection 1 in an actual connection!
Note: When Connection 2 is used, the filter must be installed close to the telephone lines. (See Fig. 2-2. Do
not use the splitter instead of the filter).
Installing a telephone directly before the splitter may lead to a failure of connection between the device and
the device of LAN side, or cannot access into the Internet, or slow the connection speed if you really need
to add a telephone set before the splitter, you have to add a MicroFilter before connecting to a telephone set.
Do not connect several telephones before the splitter. Moreover, do not connect several telephones with
MicroFilters.
6
