SMC7904BRA3 User Manual

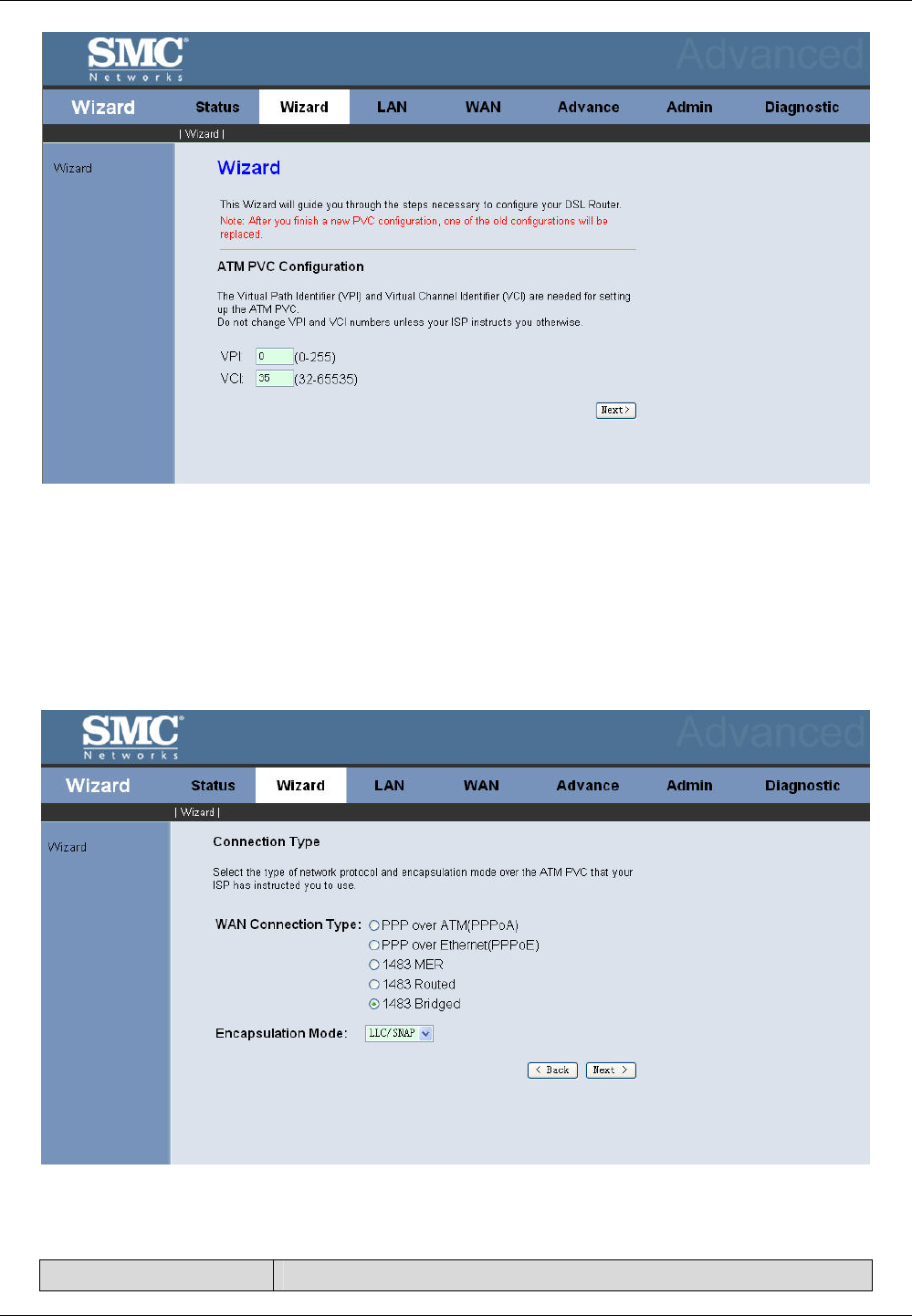

Fig 3.3.1-1
Be sure to use the correct Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI) numbers
assigned to you. The valid range for VPI is 0 to 255 and for VCI is 32 to 65535(0 to 31 is reserved for local
management of ATM traffic).
Then press Next, the Fig 3.3.1-2 screen appears. In this page, you can select the WAN Connect Type and
the encapsulation method.
Fig 3.3.1-2
The following table describes the fields in this screen.
Label Description
