SMC7904BRA3 User Manual

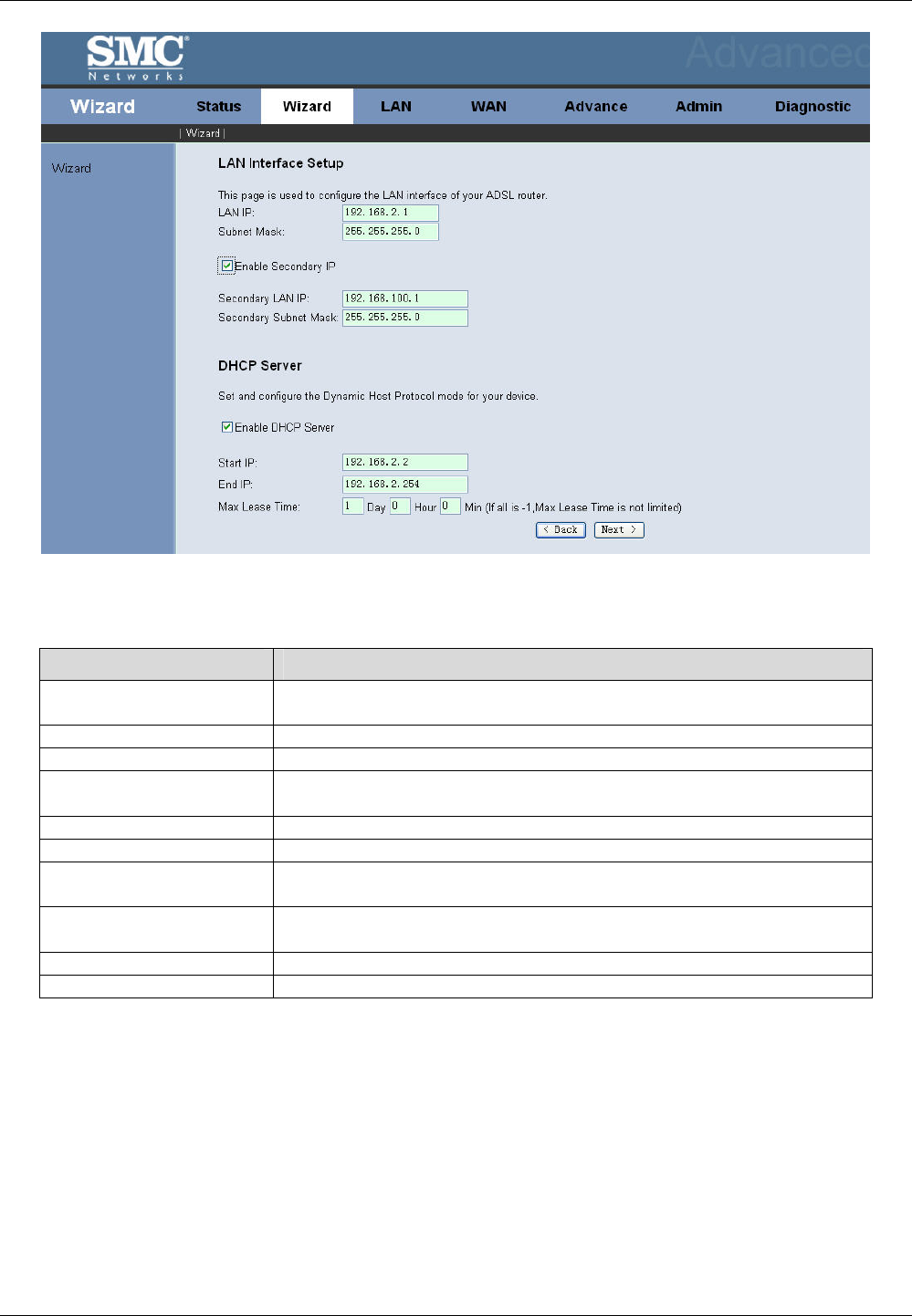

Fig 3.3.1-5
The following table describes the fields of this screen.
Label Description
LAN IP Enter the IP address of your ROUTER in dotted decimal notation, for
example, 192.168.2.1 (factory default)
LAN Netmask Enter the subnet mask of LAN IP.
Enable Secondary IP Select this check box to enable the secondary LAN IP
Secondary LAN IP Enter the secondary IP address of your ROUTER in dotted decimal
notation, for example, 192.168.100.1 (factory default)
Secondary LAN Netmask Enter the subnet mask of the secondary LAN IP
Enable DHCP Server Select this check box to enable the DHCP Server
Start IP This field specifies the first of the contiguous addresses in the IP address
pool.
End IP This field specifies the last of the contiguous addresses in the IP address
pool.
< Back Click < Back to return to the previous screen
Next > Click Next > to go to the next screen
If you finish the settings of this page, click Next, the screen appears as shown next.
