Label Description
WAN IP Settings
Type The choices are Fixed IP and Use DHCP. If set Fixed IP, you should
enter the Local IP Address, Remote IP Address and Subnet Mask. If set
Use DHCP, your Modem is a DHCP client, the WAN IP is assigned by the
remote DHCP server.
Local IP Address This is the IP of WAN interface which is provided by your ISP.
Remote IP Address This is the gateway IP which is provided by your ISP.
Subnet Mask This is the Subnet Mask of the Local IP Address.
Unnumbered Select this checkbox to enable IP Unnumbered function.
Default Route
Add After configuring the parameters of this page, click this button then a new
PVC is added into Current ATM VC Table.
Modify Select a PVC in the Current ATM VC Table, and then modify the
parameters of this PVC. When you finish, click this button to apply the
change of this PVC.
Delete Select a PVC in the Current ATM VC Table, and then click this button to
delete this PVC.
Undo Click this button to begin configuring this screen afresh.
ATM Setting Click this button, the Fig 3.5.1-3 appears. In this page, you can configure
the QoS mode of ATM PVCs. For details, see the following pages.
Click this button, the following screens appears. In the page, you can
modify the parameters of PVCs.

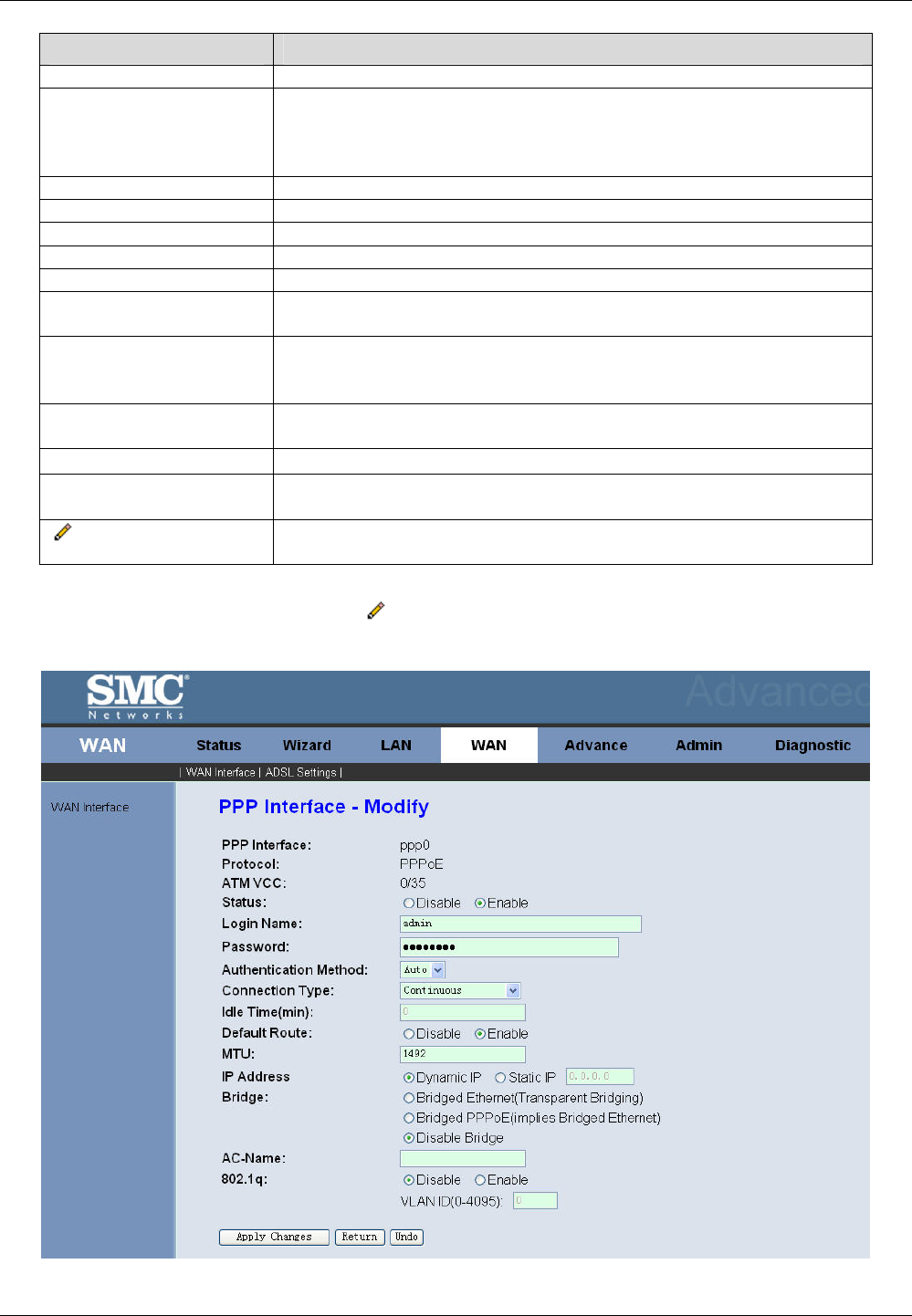

If the PVC uses PPPoE mode, click , the Fig 3.5.1-2 appears. In this page, you can configure the
parameters of this PPPoE PVC.
Fig 3.5.1-2
