SMC7904BRA3 User Manual

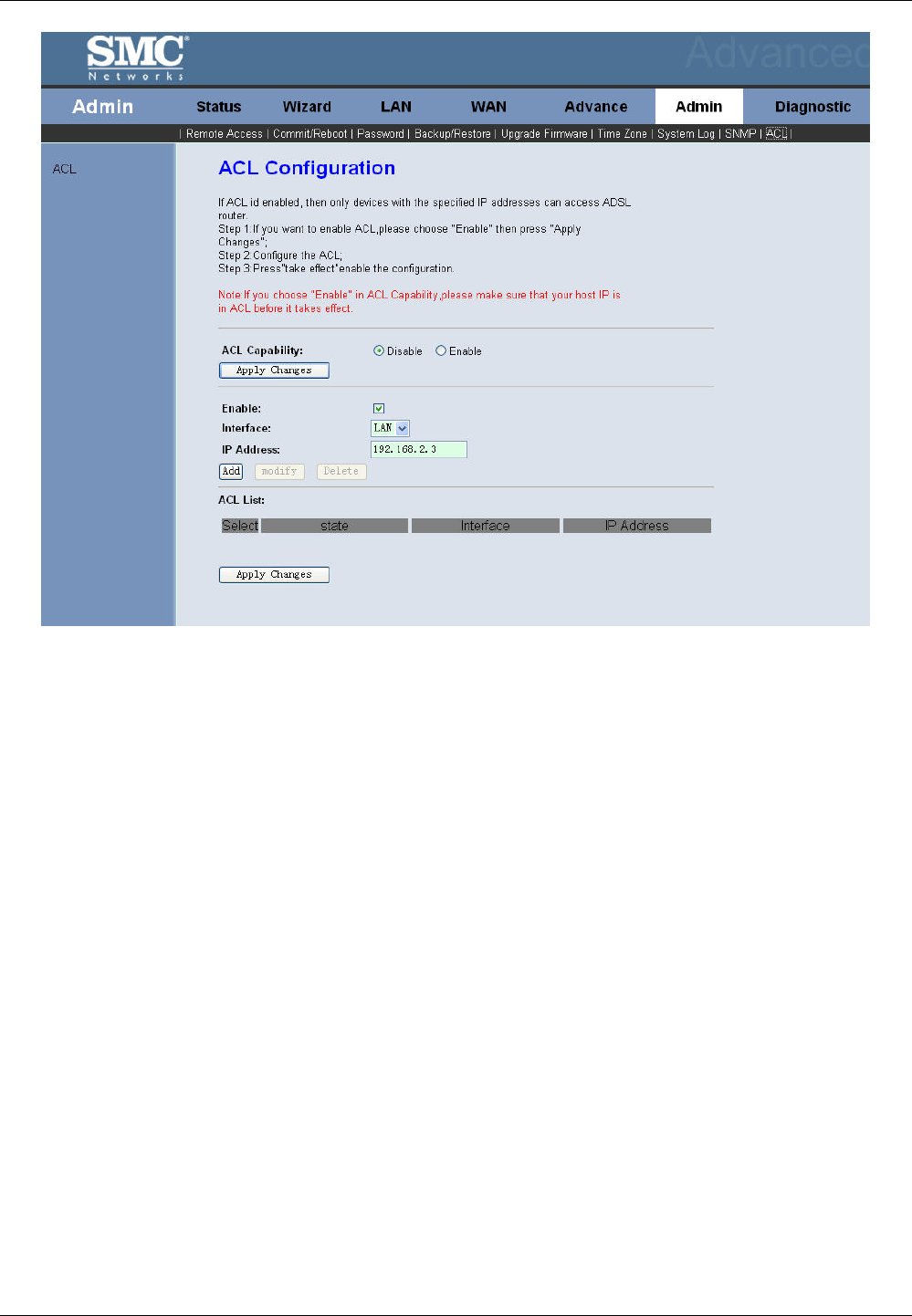

Fig 3.7.10
Step 1: If you want to enable ACL, select "Enable" and click "Apply Changes".
Step 2: Configure Access Control List.
Step 3: Click "Apply Changes” to effect the configuration.
Note: If you check "Enable" in ACL Capability, please make sure that your host IP is in ACL List before it
takes effect
3.8 Diagnostic
Click Diagnostic in the menu to open the sub-menu which contains 4 items: Ping, ATM Loopback, ADSL
and Diagnostic.
3.8.1 Ping
Click Ping in the sub-menu to open the screen of Fig 3.8.1.
48
