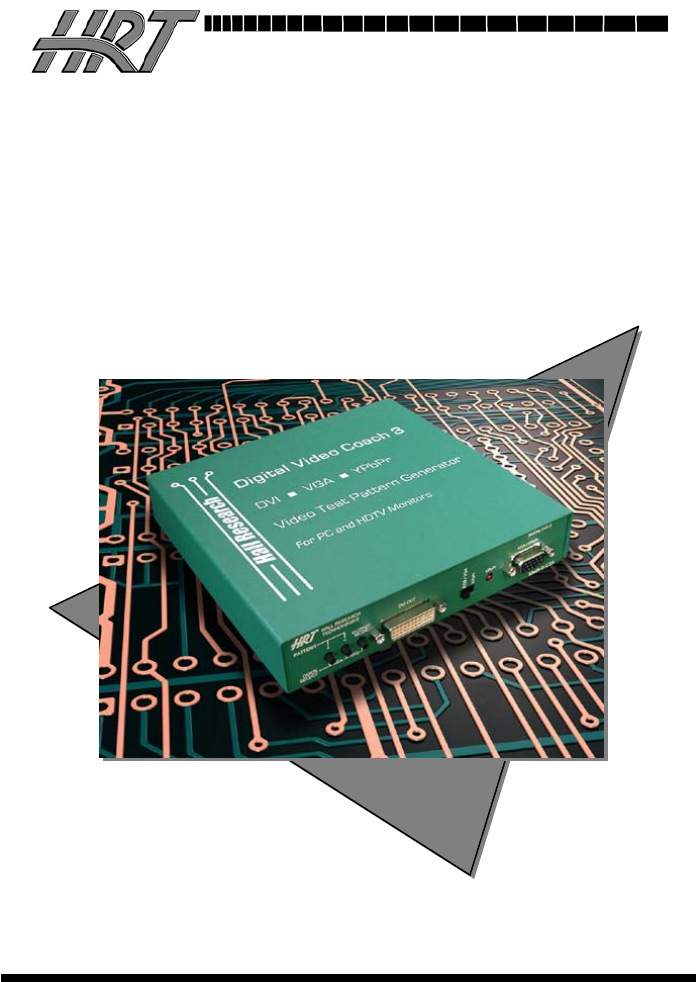

Hall Research Technologies, Inc. Model DVC-3 PC/HDTV Video Test Pattern Generator With DVI, VGA, and Component (Y, Pb, Pr) Outputs Model DVC-3 CUSTOMER Order toll-free in the U.S. 800-959-6439 SUPPORT FREE technical support, Call 714-641-6607 or fax 714-641-6698 INFORMATION Mail order: Hall Research Technologies, 1163 Warner Ave., Tustin, CA 92780 Web site: www.hallresearch.com • E-mail: info@ hallresearch.com UMA1044 Rev.
DVI, VGA, and Component Video Pattern Generator TRADEMARKS USED IN THIS MANUAL Hall Research, HRT, and Research Technologies, Inc. (logo) are trademarks of Hall Apple and Macintosh are registered trademarks of Apple Computer, Inc. IBM is a registered trademark of International Business Machines Corporation. SGI is a registered trademark of Silicon Graphics, Inc. Sun and Sun Microsystems are registered trademarks of Sun Microsystems, Inc. in the United States and other countries.
Model DVC-3 Digital Video Coach FEDERAL COMMUNICATIONS COMMISSION AND CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
DVI, VGA, and Component Video Pattern Generator Contents 1. Introduction ....................................................................................... 4 1.1 General......................................................................................... 4 1.2 Features........................................................................................ 4 2. Installation ......................................................................................... 5 3. Operation .....................
Model DVC-3 Digital Video Coach 1. Introduction 1.1 General Thank you for purchasing Hall Research Technologies’ Model DVC-3 (Digital Video Coach-3), a video test pattern generator for highresolution display devices. The unit provides DVI, PC (VGA through SXGA), and HDTV Component Video (Y, Pb, Pr) outputs. The DVC-3 features 28 static and dynamic video test patterns specially designed for testing, calibrating, and troubleshooting high end video gear and A/V installations.
DVI, VGA, and Component Video Pattern Generator 2. Installation 1. Plug the supplied AC adapter to the Power input connector located on the rear of the unit. Use the supplied adapter or a 100% equivalent only. There’s a small green LED that turns on when the unit is powered up. 2. Included in the package are all the cables that you may need: a DVI cable, a VGA cable, and a HD15 to component Cable (shown below) Choose and use the cable required for your application. 3.
Model DVC-3 Digital Video Coach ¾ ¾ ¾ ¾ ¾ There’s an indicator LED next to the slide switch that comes on when the output resolution is one of the standard HDTV resolutions AND the slide switch is in YPbPr. To operate the unit you use 3 push-button switches. One button is to walk through all the resolutions and refresh rates that are available (it is labeled OUTPUT MODE). The other 2 buttons are used to change the video pattern being generated there are 28 patterns (these buttons are labeled + and -).
DVI, VGA, and Component Video Pattern Generator ¾ As mentioned earlier the + and – buttons change the video output screen among the different patterns that are provided. Most standard patterns are included such as: Color bars, Color bar and Multi-burst on same screen, Grey-scale, Checkerboard, Circle, Crosshatch, etc. However several unique and interesting patterns are also available.
Model DVC-3 Digital Video Coach The same 2 patterns are also useful for Video-over-UTP Category cable both for the high-frequency loss compensation (above paragraph), but also for Skew Compensation for those devices that give you this flexibility. The right and left edges of the RGB bars should vertically line-up. Again, this pattern gives you a convenient means for making this adjustment. Operation Summary To change the resolution being produced press the OUTPUT MODE button repeatedly.
DVI, VGA, and Component Video Pattern Generator 4. Troubleshooting FAQ If your monitor goes blank or says “mode not supported”… It is possible to set the output resolution to one that your monitor does not support. In this case you my not get a screen.
Model DVC-3 Digital Video Coach 5. Specifications Compliance CE; FCC Part 15 Subpart B Class A, IC Class Standards PC (RGBHV): VGA, SVGA, XGA, SXGA video. HDTV (YPbPr): 480P, 576P, 720P, 1080p DVI: All of the above Interfaces Supported Analog Video: VGA, and YPbPr Digital Video: DVI –I Single link Video Level 0.7 volts peak-to-peak, on RGB, 3 v on H & V 1vp-p on Y signal, 0.
DVI, VGA, and Component Video Pattern Generator 11
