Specification

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.
COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.
www.tnb.com
GENERAL NOTES
REVISIONS
DESCRIPTION:
ORIGINAL PROJECT NO / ( ERN NO ) SHEET NO: REV. NO: DRAWING NO:
1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.
2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.
1.61
[41]
1.61
[41]
1.13
[28,6]
.24
[6]
1 OF 1 0 WSD-001659
-
SEE ERN ( *** )
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO: ***
NOTE:
MAGNETS ARE NICKEL-PLATED
HOLE DIAMETER
(SEE CHART)

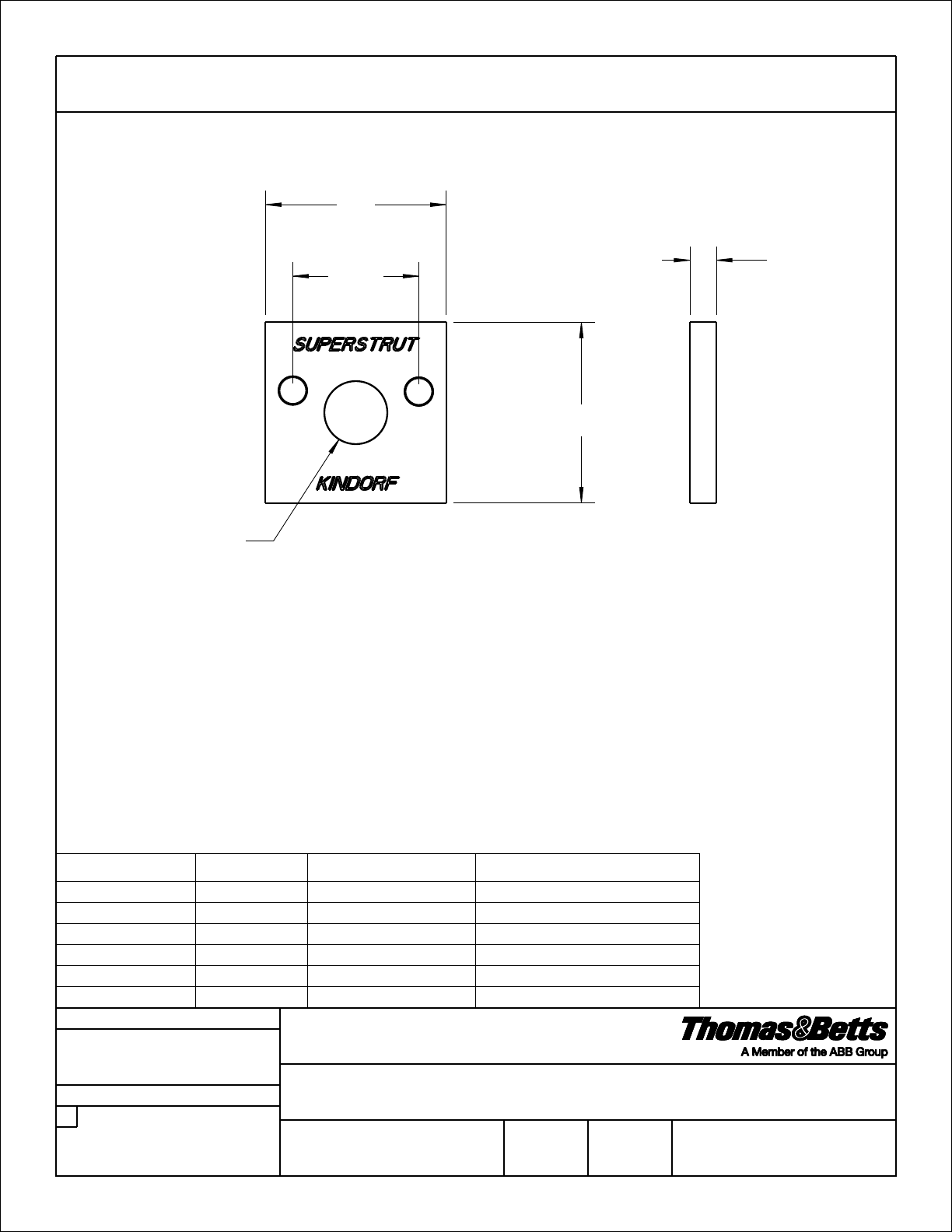

MAGNETIC SQUARE WASHER
005D000780 / ( 2017362 )
CATALOG NO. BOLT SIZE HOLE DIAMETER BRACKET FINISH
AB241M1/2 1/2" 9/16" [14.3] GOLD-GALV
AB241M 3/8 3/8" 7/16" [11.1] GOLD-GALV
AB241M 1/4 1/4" 5/16" [7.92] GOLD-GALV
AB241M1/2 EG 1/2" 9/16" [14.3] SILVER-GALV
AB241M 3/8 EG 3/8" 7/16" [11.1] SILVER-GALV
AB241M 1/4 EG 1/4" 5/16" [7.92] SILVER-GALV
