If the new global object does not appear in the diagram, select
Symbol→Show Symbols and click the corresponding tab to select the
object symbol.
Job is a child element of the Customer element.
Nickname is the attribute of the Name element.
Job became Job2, a global element.
Nickname became a global attribute.

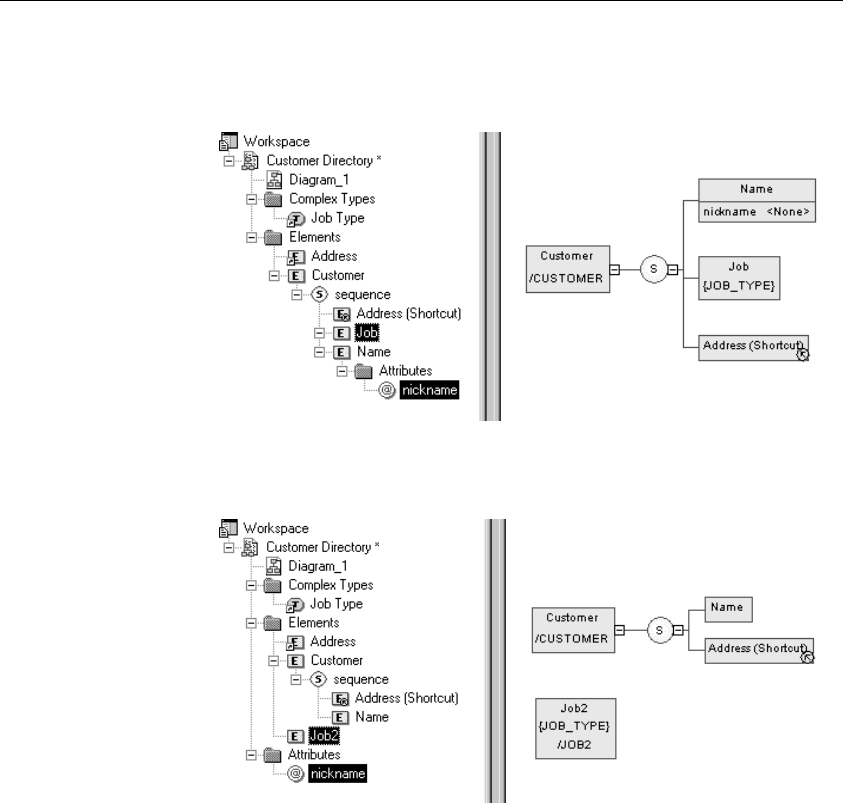

Example before
local to global
conversions within
the Browser
After conversions
