User manual

Defining elements
44 PowerDesigner
3 Click the Pointer tool in the palette.
or
Right-click to recover the Pointer.

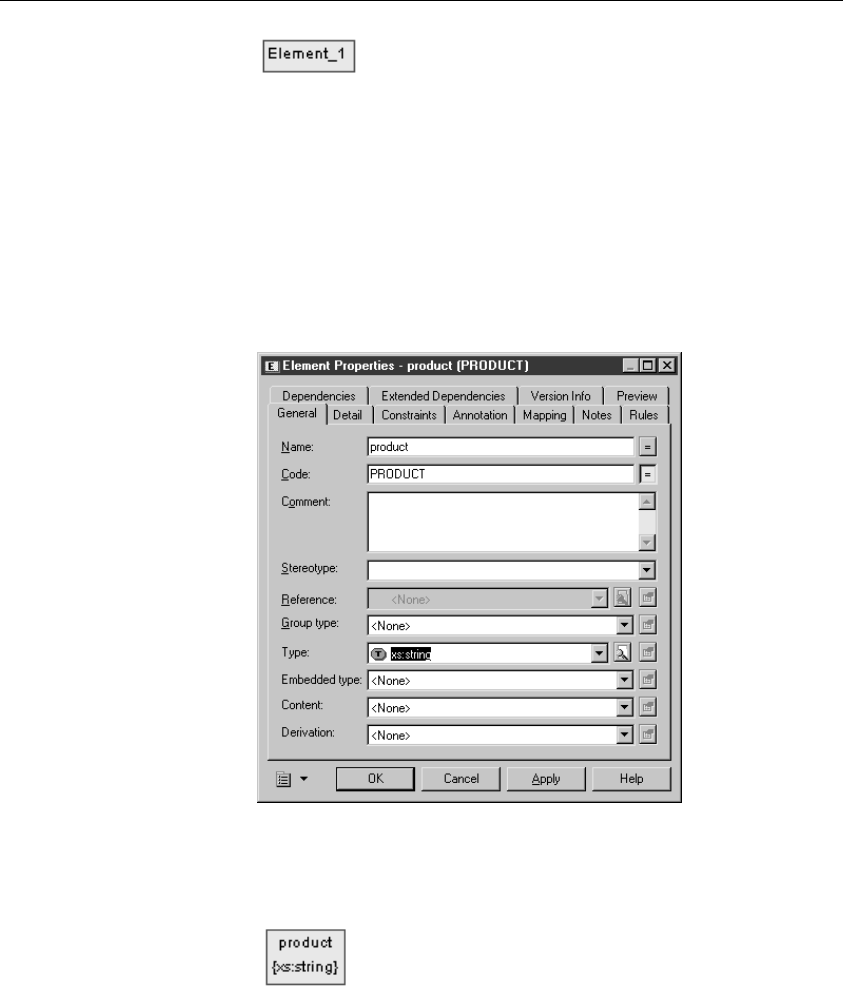

4 Double-click the element symbol in the diagram.
The element property sheet appears.
5 Type a name and a code for the element.
6 Select a data type for the element. You can use the Type dropdown
listbox or the Browse tool.
7 Click OK.
The element symbol appears in the diagram, with its data type (between
brackets) right under its name.
