Reverse engineering Java
156

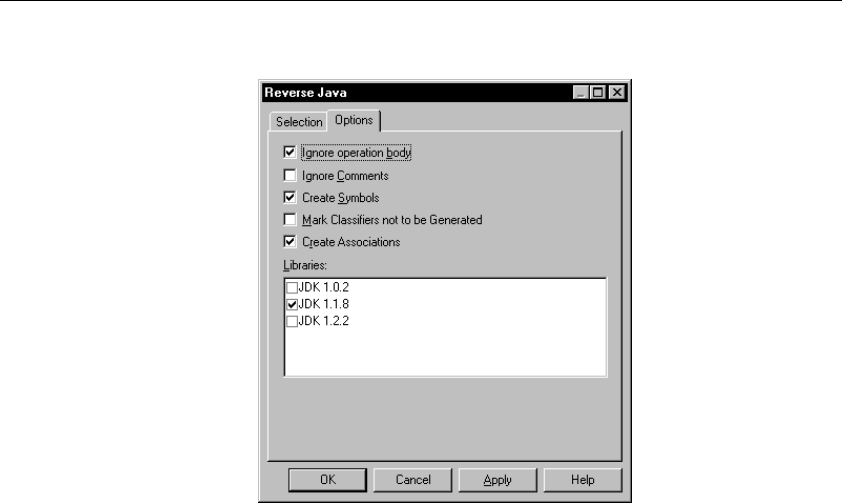

6 Select the Ignore operation body checkbox.
7 Click OK.
The classes reversed without the body of the code. The classes are
automatically added to your model and are visible in the diagram.
Reverse engineering Java source files
Each .java source file contains information on one or several class
definitions. When you reverse engineer a .java file, PowerDesigner creates a
class in the model corresponding to each class definition in the .java file. The
newly created classes have the same name as in the .java file.
v To reverse engineer .java files:
1 Select Language➤Reverse Engineer Java.
The Reverse Java dialog box appears.
