Chapter 4 Reverse Engineering
171

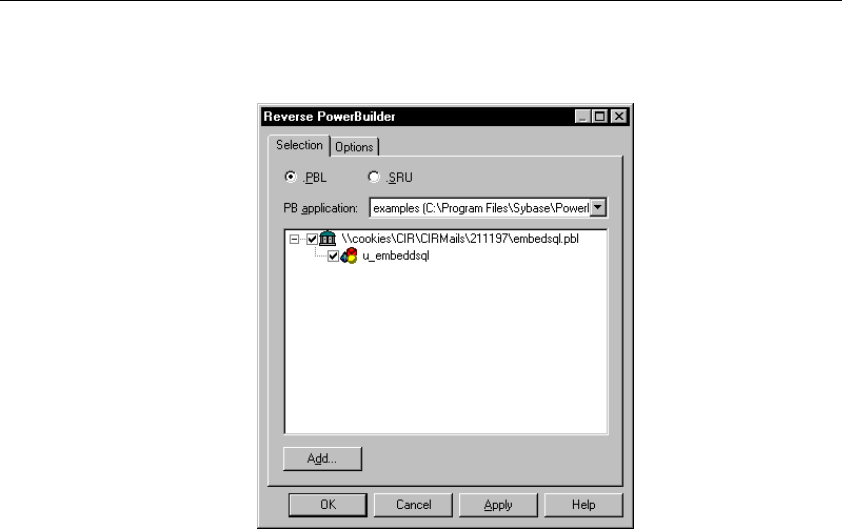

You return to the Reverse PowerBuilder dialog box. It displays the files
you selected.
6 Click OK.
A Progress box appears and the classes are added to your model. The
classes are visible in the diagram and in the Browser.
The reversed classes are listed in the Reverse page of the Output
window, situated in the bottom part of the PowerDesigner main window.
Reverse engineering objects from SRU files
SRU files are text files containing the definition of PowerBuilder User
Objects.
You do not have to have PowerBuilder installed on your machine to reverse
engineer objects contained in SRU files.
Reverse engineered PowerBuilder objects always keep their original names.
v To reverse engineer PowerBuilder objects from SRU files:
1 Select Language➤Reverse Engineer PowerBuilder.
The Reverse PowerBuilder dialog box appears.
